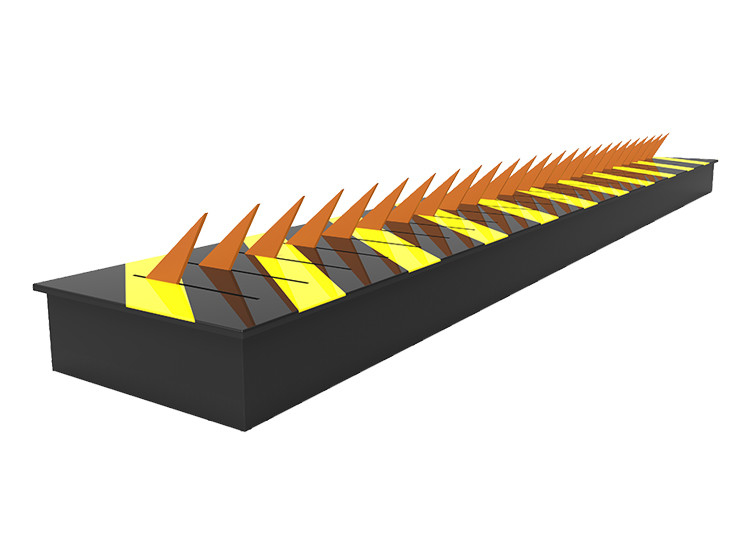

Customized Length Multiple Operation Modes Anti-Terrorism Spike Tyre Killer System
PRODUCT DESCRIPTION
Automatic flat type spike tyre killer provide reliable access and traffic control by electro-mechanically moving the
spikes up to an active or secured position, and then down to allow unrestricted passage to authorized vehicles
to access places like hotels, military bases, ministries and other high profile places.The self-contained modular
system allows design flexibility combined with easy integration with access systems in manned or unmanned
check points.
It can be installed in new or existing facilities with ease and provide an unmatched security solution creating an
ambience.SINOMATIC spike road blocks are designed for reliability and low maintenance providing years of
dependable service. For added safety and security Spike Road Block can be interlocked with Automatic Barrier
to work in unison with single activation device and control panel. This enables the spikes to go down automatically
when the barrier is open and come up when the barrier is closed. The model is flush mounted, completely inconspicuous
in-ground installation. As the name suggests it offers flat surface on the road but requires digging a trench across the road.
PRODUCT SPECIFICATION
| DESCRIPTION | SPECIFICATION |
|---|---|
|
Power
|
AC220V/110V(simple phase)
|
|
Operating Temperature
|
-35°C~65°C,Waterproof, Dustproof
|
|
System Power
|
1.5KW/2.2KW/3.7KW/5.5kw(heavy-duty)
|
|
Up&down time
|
1~2 seconds
|
|
Parts of tyre killer
|
tyre killer, control box, installation accessories, remote control
|
|
Length of the tyre killer
|
1m to 6m (or OEM)
|
|
Control Distance
|
Electric control, <1000Meters
|
|
Frame Thickness
|
10mm
|
|
Communication Connection
|
RS485 interface and relay interface
|
|
Material
|
A3 steel, spray anti-rust paint;
|
|
Colour
|
Various color optional
|
|
Applications
|
Highway Charging, Airport, Gov. Military Area, Banks, Ports & Embassy
|
CASE REFERENCE
FUNCTIONS & FEATURES
1. Firm and anti-collision. The tyre killer body and spikes are made of 10mm thickness standard Q235
carbon steel with strong load-bearing and destructive power.The structure is firm and durable.
2. IP68 military protection standard.
3. Speedy and Low noise.The hydraulic tyre killer is hydraulically powered through both the raise and lower
cycles, taking much less time and lower level of noise to operate.Typical operating (opening /closing) time
is 1-2 seconds.
4. Safe and Reliable.Single phase drive motor, or a three phase motor to allow very high frequency of operation.
This is ideal for large car parks or busy sites. Environment protection, low power consumption and high reliability.
5. Flexible control method, The system support remote control and drive-by-wire typically. For remote control,
the controller is available to work 30 meters far away from the blocker device(depends on the radio communication
environment on site).
6. Back up solution,Support manual operate mode,the spikes can lift or fall on level place by manual when power-off.
7. Convenient maintenance. It is easy to check, test and fix the problem.
8. Functional and Manageable: Safety accessories like photocells, inductive loop detectors , beam sensor can
be integrated to the system very easily.
9. It can be installed with other access control elements (for example bollards, road barrier, turnstiles, fire alarm
system, traffic light) in order to achieve an access control check-point at the highest level of security.
10. Wide range of optional configurations: Can be custom designed to suit your requirements and can be built
in an almost infinite range of thickness and length to suit any roadway or level of security.
