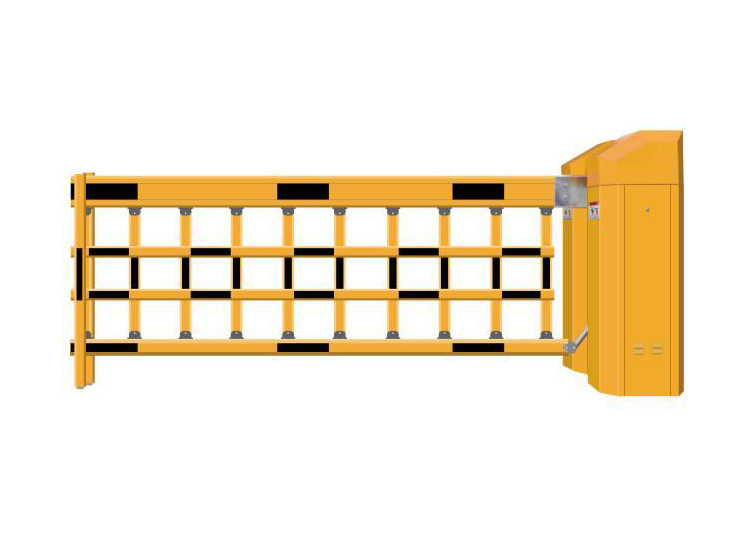

IP44 Automatic Airborne Barrier Gate 30m Remote Control
  • IP44 Automatic Airborne Barrier Gate 30m Remote Control
  • IP44 Automatic Airborne Barrier Gate 30m Remote Control
  • IP44 Automatic Airborne Barrier Gate 30m Remote Control

IP44 Automatic Airborne Barrier Gate 30m Remote Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ABBG01
Product Details
Rated Power:
250W
Box Weight:
About 110kg
Running Speed:
9s
Arm Lenght:
Max 6m
IP Grade:
IP44
Box Dimension:
457*686*1275mm
High Light:

Automatic Airborne Barrier Gate

,

IP44 Airborne Barrier Gate

,

30m Remote Control Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
500 pcs per month
Product Description

Professional Access Control Manufacturers Long Arm Airborne Boom Barrier Gate



Product Performance Characteristics



Our company has carefully designed and produced an airborne gate, which is easy to use, safe and reliable,

simple and elegant, and beautiful. The products are widely used in traffic fortresses such as commercial districts,

large parking lots, commercial and residential areas, commercial plazas, office buildings, catering hotels, highways,

provincial toll stations and other major roads.





Movement characteristics



● The most stable non-constant speed operating mechanism is adopted to make the brake lever start slowly,

run fast, and stop slowly, so as to eliminate the jitters caused by the brake lever during operation opening and

closing. Extend product life

● The use of high-bearing load-bearing bearing with seat makes the movement part more stable

● Adjustable mechanical limit makes installation and commissioning more convenient and fast

● Adopt high-sensitivity limit switch, instantly control the starting and falling rods in place accurately

● Integrated turbine worm drive deceleration asynchronous motor, stable transmission, low noise, compact

structure, can achieve self-locking

● The motor is equipped with an intelligent overheating protection system, which controls the temperature rise

of the motor under frequent use, making the motor not easy to burn out

● Manual opening mechanism, the brake lever can be automatically lifted and lowered by the motor hand wheel

during power failure, without restriction



Control System



● Using digital chip technology, anti-smashing, ground sense, and IC interface are integrated into one, with

good stability and zero probability of misoperation. Especially equipped with delay protection function, with

double control effect

● Use lifting overtime and motor overheating protection to prevent abnormal damage of gate

● Use the imported high-power relay to ensure the reliable operation of the barrier

● The original imported photoelectric isolation protection circuit is used to ensure signal integrity and strong

interference resistance.

● Wireless remote control receiving module integrated with high-performance millions of learning codes to

ensure the stability of operation.

● A unique arc extinguishing processing circuit is adopted to ensure the service life of the control board.

● Transformer with original imported magnetic core, stable operation in outdoor damp environment



SPECIFICATIONS

Power input AC220/AC110 50/60HZ
Rated power 250W
Opening/Closing time 9s
Box weight 110kg
Box dimension 457*686*1275mm
IP rate IP44
Boom length 1m to 6m
Boom height 1168mm
Remote distance ≤30m
Working temperature -30℃~+80℃
Humidity ≤95%





IP44 Automatic Airborne Barrier Gate 30m Remote Control 0



IP44 Automatic Airborne Barrier Gate 30m Remote Control 1

PRODUCT FUNCTION & FEATURES

1. The box is waterproof, durable and can be used in outdoor environments. Closed fence barriers prevent
people from crossing casually.

2. The box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been
subjected to high-temperature hot-melt baking, scrubbing and anti-UV quality, ensuring no fading for about
three years.

3. This system can be equipped with soft hose to prevent crash, as well as other protective equipment such
as air pressure waves, so that the system has anti-smashing functions.

4. A variety of control methods are available for users to choose. Both external wired and remote control can
be used to control the rise/lower/stop of the gate.

5. The use of multiple protection measures (heater protection, low temperature protection, wind protection,
anti-electricity protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.

6. Integrating electricity and mechanical control, flexible operation, convenient and reliable.

7. It can be used with the optional vehicle detector to make it have the functions of “automatic drop-off after the
car passing” and “automatic lifting of the drop-bar when there is a car”, which makes the barrier have automatic
closing and perfect anti-smashing function.

8. Opening priority function, which can effectively improve the efficiency of the vehicle passing.

9. The system uses a standard electrical interface externally, which can be easily attached to other systems.

10. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance
is stable, the operation is smooth, the noise is small, and the service life is long.


11. Advertising light box and flap advertising with LED light strip, adjustable time control, or light sense control,

energy saving.



12. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance

is stable, the operation is smooth, the noise is small, and the service life is long.
