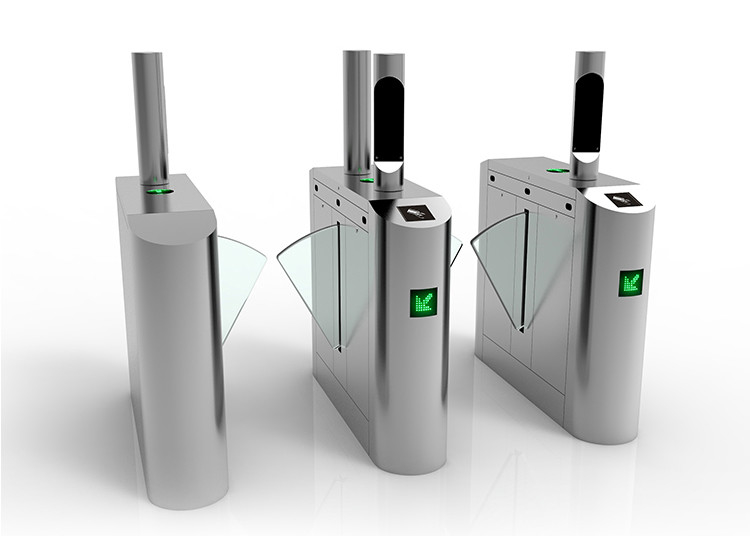

Face Recognition BLDC Motor Flap Barrier Gate Access Control RS232
  • Face Recognition BLDC Motor Flap Barrier Gate Access Control RS232
  • Face Recognition BLDC Motor Flap Barrier Gate Access Control RS232
  • Face Recognition BLDC Motor Flap Barrier Gate Access Control RS232

Face Recognition BLDC Motor Flap Barrier Gate Access Control RS232

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FB02
Product Details
BLDC Motor
Max Flow Rate:
30 Person Per Minute
Service Life:
5 Million Times
Control Signal:
Relay/dry Contact Signal
IP Grade:
High Light:

Face Recognition Flap Barrier Gate


BLDC Motor Flap Barrier Gate


RS232 Access Control Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

Face Recognition Access Control Soft Foam Protection Flap Barrier Gate




Automaitic flap barrier can be compatible with IC card , ID card ,barcode card , fingerprint reading card

recognition device used for staff, provide civilized , orderly access methods; effectively manage the access

of staff .




Flap barrier turnstile series with innovative design, it extensive use in metro, school, office, scenic, gym,


factory, residential, supermarket etc.. It can support RFID, fingerprint, facial verification mode. Combine

with infrared detector, temperature controller, can widely used in all kind of different environment.




Material 304 stainless steel
Working voltage AC100V~240V
Drive motor DC24V DC brushless motor
size 1200*280*980
Flap length 270MM
Channel width 550 to 600MM
Fire interface provide relay fire linkage interface
Voice prompt support
direction Single/bi-direction
Working temperature -20℃~70℃
Humidity ≤90%( No condensation)
Working Environment Indoor / Outdoor (Shelter)
Gate opening and closing time 0.6 seconds
Passing speed

40 people / minute (normally open)

25-30 people / minute (normally closed)

Power-on time The time required to enter the passage state after power-on is 3s.
Service Life 5 million cycles
Communication interface standard RS485/232 dual serial port interface, distance ≤1200 meters
Input interface relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA




1. Fault detection and alarm functions, easy to use and maintenance.


2. The running status can be programmed and controlled with the built-in keyboard on the main board.


3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset)


4. Anti-breakthrough function. The gate is locked automatically until opening signal received.


5. Synchronization functions (for dual gate equipment).


6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel

the authority of the current user automatically.


7. Gate can be set as normally open or normally closed.


8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.


9. Direction can be set as single-direction or bi-direction.


10. LED direction indicator.


11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.


12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.


13. Counter function (optional).


14. Support infrared photocell for anti-pinch and reset function
