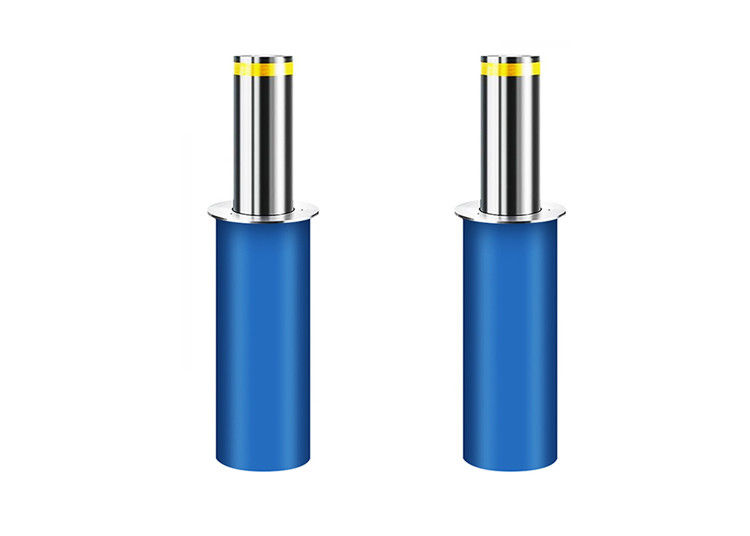

Automatic hydraulic road bollards with 100-meter remote control capability and multiple color options for versatile security applications.
| Product Name |
Automatic hydraulic road bollard |
| Material |
304 stainless steel |
| Control Mode |
Integrated hydraulic and electro |
| Power Supply |
110V/220V (control voltage 24V) |
| Bollard Diameter |
168mm, 219mm (default), 273mm, 324mm etc |
| Rising Height |
600mm (default), 800mm, 1000mm |
| Wall Thickness |
6mm (default), 8mm, 10mm, 15mm, 20mm |
| Waterproof Degree |
IP68 |
| Surface Treatment |
Brushed finishing |
| Operating Temperature |
-40℃ to +70℃ |
| Control Model |
Push button/remote control standard, loop detector/card reader optional |
| Running Speed |
2-4S (ascending) |
| Safety Signs |
Reflective tape/LED warning light zipper/loop detector system traffic lights |
| Cylinder |
Stainless steel/plastic coating for steel tube |
| Optional Function |
Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer |
| Optional Color |
Brushed titanium gold, champagne, rose gold, Brown, red, purple, sapphire blue, gold, dark blue paint, chocolate, stainless steel, Chinese red paint |
The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted.
System: Electric-hydraulic system
Max passing pressure: 80T to 120T trucks
Voltage: AC220V 50Hz Integrated
Power: 300W Integrated
Up time: 3-6S
Down time: 3-6S
Working temperature: -65℃~75℃
Storage Environment: -10℃~65℃, water-proof, damp-proof, dust-proof
Material: 304 stainless steel
Rising height: 600mm (standard) Max can be 1000mm
Bollard Thickness: 6mm (standard), 8mm, 10mm, 12mm, 20mm optional
Diameter: 219mm (Standard) 273mm (optional)
Structure: With load-bearing steel beam column, anti-collision steel beam column
LED light (optional)
Reflective sticker: 2 strips
Link-control interface
Manual lowering capability during power outages
IP rating: IP68
Weight: 150±KG Integrated
Reversible operation during rising and falling
Device running noise ≤60 decibel
Waterproof integrated hydraulic device drive
Hydraulic cylinder double sealed for waterproof rating
Hydraulic drive with hydraulic lock
PLC programming command control system
Solenoid valve voltage 24V
Remote control distance: 50M-100M (environment dependent)
Control box with adjustable text display (Up, Down, Action, Time control)
Text display with Chinese and English bilingual
PLC built-in encryption system
Water immersion performance: 48 hours without leakage
