Automatic Rising Bollards
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB01 |

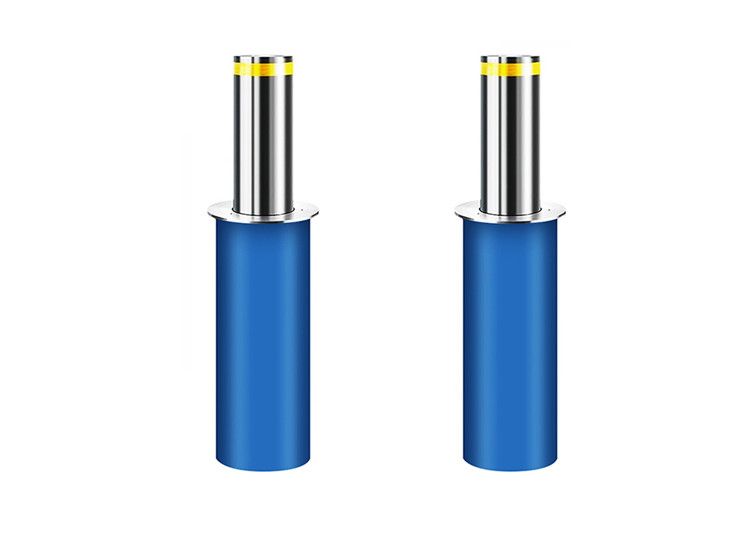

Auto Lifting 100 Meter Remote Control Distance Optional Color Available Retractable Rising Bollards
SINOMATIC road bollard advantages
Different thickness of steel is available (default 6 mm)
The different color is available
Customized size is available
Steady and safe due to the OMRON PLC control system
Speedy rising time and durable quality with hydraulic pressure
Housing with durable and stainless Galvanization
Optimization of the frame structure, high anti-impact capability, high loading capability
High security and anti-collision ability
With a reflective band and a low energy consumption LED light at night
Product specifications
Application
The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government
agencies, embassies,military bases, customs, banks, industrial and mining enterprises, ports, warehouses,
parking lots, and all places where vehicletraffic is restricted.
MAIN FEATURES
1. System:electric-hydraulic system
2. Max passing pressure: 80T to 120T trucks
3. Voltage:AC220V 50Hz Integrated
4. Power(w):300W Integrated
5. Up time:3-6S
6. Down time:3-6S
7. Working temperature:-65℃~75℃
8. Storage Environment:-10℃~65℃, water-proof, damp-proof,dust-proof.
9. Material:304 stainless steel
10. Rising height:600mm(standard) Max can be 1000mm
11. Bollard Thickness: 6mm (standard), 8mm, 10mm, 12mm, 20mm optional
12. Diameter:219(Standard) 273mm(optional)
13. Structure : With load-bearing steel beam column, anti-collision steel
beam column
14. LED light (optional)
15. Reflective sticker: 2 strips
16. Link-control interface
17. In case of a power outage, the bollards can be manually lowered down
18. IP rate: IP68
19. Weight:150±KG Integrated
20. In rising and falling, reversible operation is available
21. Device running noise≤60decibel
22. Waterproof integrated hydraulic device drive
23. The hydraulic cylinder is double sealed to ensure a waterproof rating
24. Hydraulic drive comes with hydraulic lock
25. PLC programming command control system
26. Solenoid valve voltage 24V
27. Remote control distance 50M-100M(Based on the environment)
28. The control box displays text adjustable (Up, Down, Action, Time control adjustment)
29. Text display with Chinese and English bilingual
30. PLC built-in encryption system
31. Water immersion performance:48 hours without leakage and working well
