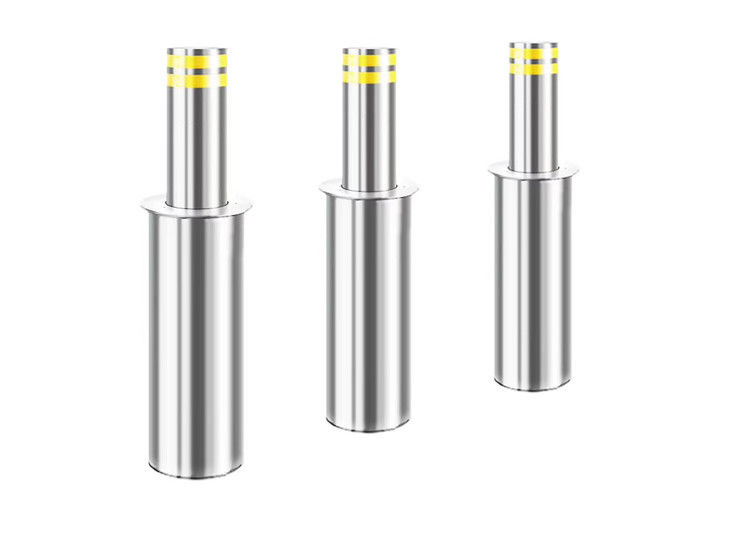

IP68 Waterproof SUS304 Stainless Steel Automatic Rising Bollards with 8k Mirror Surface
  • IP68 Waterproof SUS304 Stainless Steel Automatic Rising Bollards with 8k Mirror Surface
  • IP68 Waterproof SUS304 Stainless Steel Automatic Rising Bollards with 8k Mirror Surface
  • IP68 Waterproof SUS304 Stainless Steel Automatic Rising Bollards with 8k Mirror Surface
IP68 Waterproof SUS304 Stainless Steel Automatic Rising Bollards with 8k Mirror Surface

IP68 Waterproof SUS304 Stainless Steel Automatic Rising Bollards with 8k Mirror Surface

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Bollard Surface Treatment:
8k Mirror Surface
Bollard Diameter:
168/219/273/324mm
Bollard Thickness:
6mm, 8mm, 10mm, 15mm, 20 Mm
Control Mode:
Button/Remote Control
Bollard Material:
SUS304 Stainless Steel
IP Grade:
IP68
Highlight:

Hydraulic Automatic Retractable Bollards

,

Dustproof Automatic Retractable Bollards

,

IP68 Stainless Steel Rising Bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description
Dustproof Hydraulic Automatic Retractable Bollards IP68 Waterproof
Product Overview
IP68 Waterproof Dustproof Traffic Road Safety Hydraulic Rising Bollard made from premium stainless steel. Features hydraulic drive technology for mandatory interception with strong load-bearing and anti-collision capabilities. Simple and flexible operation with stable, fast action, low noise, and reliable traffic capacity.
Applications
Widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all locations requiring vehicle traffic restriction.
Technical Specifications
Product Name Automatic hydraulic road bollard
Material 304 stainless steel
Control Mode Integrated hydraulic and electro
Power Supply 110V/220V (control voltage 24V)
Bollard Diameter 168mm, 219mm (default), 273mm, 324mm etc
Rising Height 600mm (default), 800mm, 1000mm
Wall Thickness 6mm (default), 8mm, 10mm, 15mm, 20mm
Waterproof Degree IP68
Surface Treatment Drawing process
Operating Temperature -30℃ to +70℃
Control Model Push button/remote control standard, loop detector/card reader optional
Running Speed 2-4S (ascending)
Safety Features Reflective tape/LED warning light zipper/loop detector system/traffic lights
Cylinder Stainless steel/plastic coating for steel tube
Optional Functions Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
Optional Colors Brushed titanium gold, champagne, rose gold, Brown, red, purple, sapphire blue, gold, dark blue paint, chocolate, stainless steel, Chinese red paint
SINOMATIC Road Bollard Advantages
  • Multiple steel thickness options available (default 6mm)
  • Various color customization options
  • Customized sizing available
  • Steady and safe operation with OMRON PLC control system
  • Fast rising time and durable quality with hydraulic pressure
  • Durable stainless galvanization housing
  • Optimized frame structure with high anti-impact and loading capability
  • High security and anti-collision ability
  • Reflective band and low energy consumption LED light for night visibility
Automatic Bollard Features
  • High security and anti-collision ability
  • Pneumatic air pump in control cabinet provides large power safely for extended periods
  • Electronic control with automatic rise/fall functionality
  • High system independence
Reflective Band
Various color options for Glossee aveolate reflective band; requires only minimal light to be clearly visible at night.
Available Materials
304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.
Flange Design
Anti-skid flange with unique pattern design. Compatible with various road surface styles. Built-in PA orientation.
Top Cap
Simple integration design compatible with all architectural styles. Excellent workmanship resistant to close attacks.
Packaging & Delivery
  • Packaging: Standard Export Packing or as per customer requirements
  • Delivery: Express/Air/Sea according to customer requirements
  • Taxes & Duties: International customers are responsible for all duties and taxes. Please contact your local authority for questions related to applicable duties or taxes.
