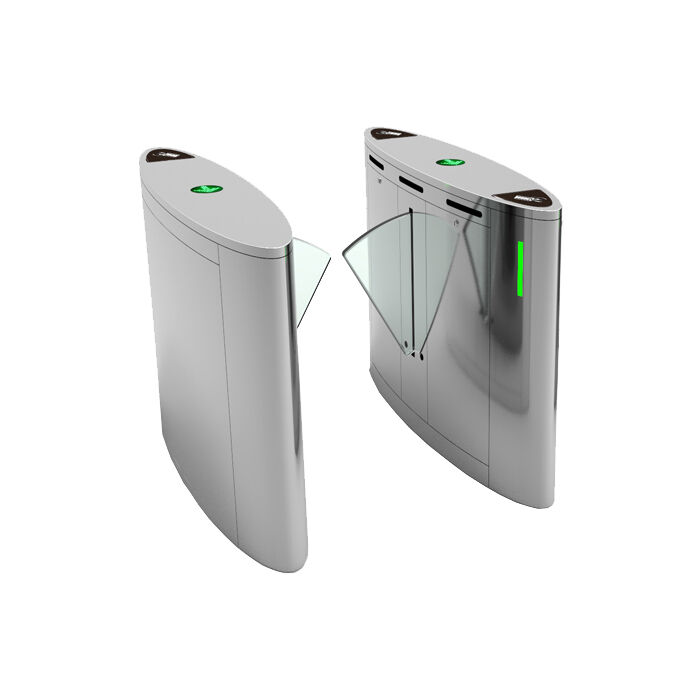

Facial Recognition SUS304 IP44 Pedestrian Speed Gate Retractable Flap Barrier
  • Facial Recognition SUS304 IP44 Pedestrian Speed Gate Retractable Flap Barrier
  • Facial Recognition SUS304 IP44 Pedestrian Speed Gate Retractable Flap Barrier
  • Facial Recognition SUS304 IP44 Pedestrian Speed Gate Retractable Flap Barrier
  • Facial Recognition SUS304 IP44 Pedestrian Speed Gate Retractable Flap Barrier

Facial Recognition SUS304 IP44 Pedestrian Speed Gate Retractable Flap Barrier

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB04
Product Details
Core:
Single/Double Core
Pass Speed:
30 Persons/min
Working Temperature:
-20°C~60°C
Reset Time When Power On:
3s
Control Voltage:
DC24V
IP Grade:
IP44
Highlight:

IP44 Pedestrian Speed Gate

,

SUS304 Pedestrian Speed Gate

,

Facial Recognition Retractable Flap Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
Facial Recognition SUS304 IP44 Pedestrian Speed Gate Retractable Flap
Full Automatic Retractable Flap High Safety Facial Recognition Pedestrian Speed Gate
The intelligent flap barrier is part of our comprehensive intelligent passage management series, offering superior performance compared to traditional management systems. This advanced solution significantly reduces manpower requirements, operational costs, and inefficiencies while providing enhanced control over pedestrian access, toll collection, and passenger counting.
Product Overview
This stainless steel pedestrian speed gate represents the scientific crystallization of modern social civilization development, opening new possibilities for efficient scientific management. The product features a pressed stainless steel construction with a pleasing appearance, durability, and long-lasting performance.
Key Advantages
The system features standard electric interfaces for easy integration with read/write facilities and includes a specialized control system that meets fire control requirements. This ensures smooth passenger flow and timely diversion capabilities. With stable performance and reliable safety features, it's ideal for high-traffic locations requiring monitoring.
Applications
  • Stations, wharves, tourist attractions, and factory entrance/exit management channels
  • Recount channel management for exhibitions, swimming pools, and similar venues
  • Time attendance, access control, and consumption management for commercial and enterprise buildings
  • Specialized channel management systems
Technical Specifications
Physical dimensions (mm)1200 (Length) * 300 (Width) * 980 (Height) - Customization available
Cabinet materialSUS304 stainless steel with brushed surface treatment
Material thickness (mm)1.2mm to 1.5mm
Width of passage (mm)600mm
Gate materialAcrylic/foam
Gate response time<0.1 seconds
Failure-free operation cycles5,000,000 cycles
Passageway detection4 pairs of active infrared detectors
Passage speed≥30 persons/minute (Normally closed type)
Application environmentIndoor/outdoor
Operating temperature-20°C to 60°C
Operating humidity0-90%, non-condensing
Power supplyAC220V±10%, 50Hz / AC120V±10%, 60Hz
Main Features
  • Fault self-test and alarm prompt functions for easy maintenance
  • Programmable operating states via built-in push-pull controls
  • Anti-pinch and anti-collision mechanical structure with automatic motor stop
  • Illegal intrusion, trailing alarm, and reverse intrusion protection
  • Anti-shock function with automatic arm locking
  • Adjustable synchronous telescopic arms (for double pendulum models)
  • Automatic reset function with adjustable timing (1-60 seconds)
  • Infrared sensor reset and anti-trap functionality
  • Compatible with access control, biometric, ticketing, and testing systems
  • One-way or two-way control with infrared sensing channels
  • Voice prompt functionality
  • Remote control and management via computer interface
Company Advantages
  • Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for product testing before bulk purchasing
  • Comprehensive online technical support
  • Multiple transportation options including sea, air, and express shipping
  • Factory visits welcome during working days
