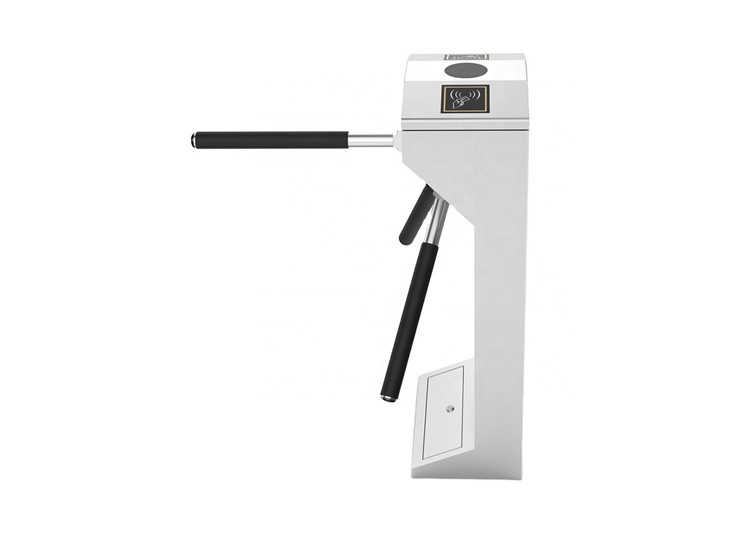

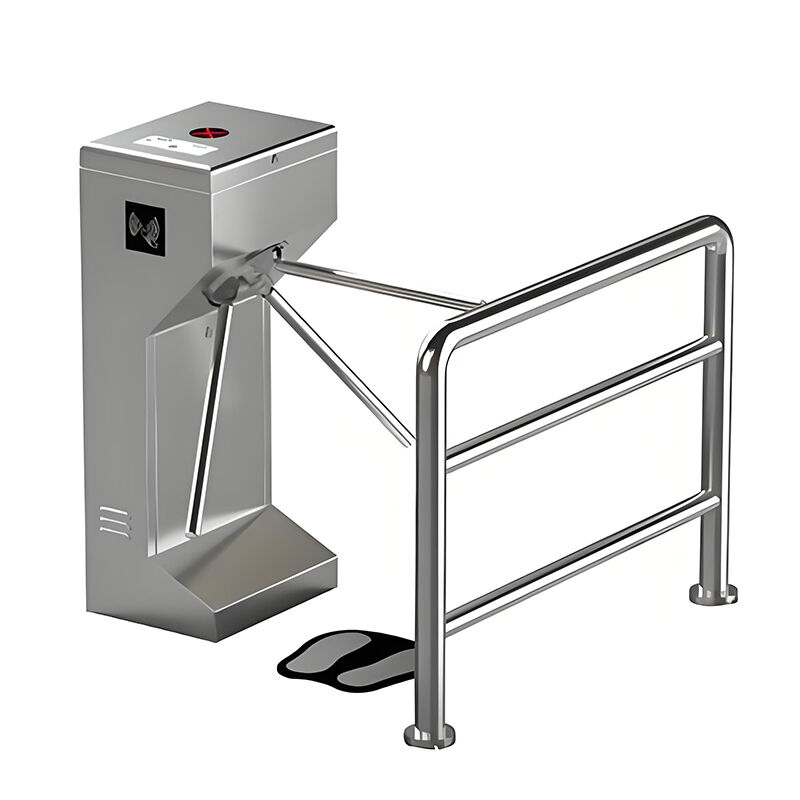

SS304 Access Control Vertical Tripod Turnstile IP44 With Foam Protection
  • SS304 Access Control Vertical Tripod Turnstile IP44 With Foam Protection
  • SS304 Access Control Vertical Tripod Turnstile IP44 With Foam Protection

SS304 Access Control Vertical Tripod Turnstile IP44 With Foam Protection

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-TT01
Product Details
30 Per/ Min
Control Signal:
Relay Signal
Protection Level:
IP44 Or Higher
Control Voltage:
Housing Surface Treatment:
Access Control System
High Light:

Access Control Vertical Tripod Turnstile


SS304 Vertical Tripod Turnstile


IP44 Swing Gate Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1,000 pcs per month
Product Description

Security Semi Automatic Small Footprint Tripod Turnstiles Door For Access Control System




Tripod turnstile, also known as three-roller gate, is a kind of channel gate, which is an intelligent control terminal

device for the entry and exit of the pedestrian passage. It is specially used for gates that require security check

or control for personnel exits and entries, such as dining halls, hotels, office buildings, museums, stadiums, clubs,

subways, stations, wharfs, tourist attractions and other places.


Access control function


It can effectively control high volume human traffic ( up to 30 person per minutes ) while still maintaining a welcoming

atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance.


Product application


It is the ideal management and guidance equipment for pedestrians with high-frequency entrance and exit. Widely

used in airports, stations, terminals, attractions, parks, shopping malls, office buildings, pedestrian walkways and other places.



Product highlights


1. Full stainless steel structure, Strong and durable, good stability, Suitable for harsh outdoor environments,

such as construction sites


2. Tripod arms, one passager one arm, it can effectively stop trailing and fare evasion behaviors


3. The arm will drop automatically when there is power off or file alarm(optional).


4. Unified and standard external electrical interface, which can be connected with various reading and writing

devices, which is convenient for system integration.






1. Accessories: outer box 304 #
2. Product size: 480*280*1000mm
5.Arm length:
6. Traffic direction: one-way traffic / two-way traffic
7. Opening method: IC / ID card reader, etc.
8.Opening signal: switch on
9. Traffic speed: 30 people / minute
10. Input voltage: AC220V ± 10V, 50Hz
11.Input interface: + 12V level signal or DC12V pulse with pulse width> 100ms
12. Communication interface signal: dry contact
13. Working environment temperature: -20 ºC ~ 70 ºC
14. Power: 30-60W
15. Service life: not less than 3 million times
16. Protection level: IP54




SS304 Access Control Vertical Tripod Turnstile IP44 With Foam Protection 0





1.Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be

locked automatically


2.Bi-direction passing or uni-direction


3.When power off, arm will be dropped automatically


4.Self-lock function: arm will be locked automatically after passenger passing


5.LED passing arrow can show direction to indicate passenger to pass


6.Standard interfaces are convenient for connection with different readers which can send relay signal


7.Stable running with little noise.


Do you provide OEM service?


Yes, we can offer OEM services as follows:


1) We can customize barrier gate according to your needs.


2) We can print your logo on the turnstile, and customize retail box packing and other things you need.
