Wire Drawing Small Footprint Tripod Turnstiles Door Access Control DC24V
Security Semi Automatic Small Footprint Tripod Turnstiles Door
Tripod turnstile, also known as three-roller gate, is an intelligent control terminal device for pedestrian passage entry and exit management. Specifically designed for locations requiring security checks or controlled access, including dining halls, hotels, office buildings, museums, stadiums, clubs, subways, stations, wharfs, and tourist attractions.
This turnstile efficiently manages high-volume human traffic (up to 30 people per minute) while maintaining a welcoming atmosphere. It seamlessly integrates with electronic systems for ticketing, access control, or time attendance applications.
Anti-Tailgating Security Solution
Unlike other turnstile brands that suffer from tailgating issues, our SN-TT01 tripod turnstile gate ensures that only one person can pass through per authorized card swipe, eliminating security vulnerabilities at entrance points.
Product Specifications
| Accessories | Outer box 304# stainless steel |
| Product Size | 480*280*1000mm |
| Arm Length | 510mm |
| Traffic Direction | One-way traffic / Two-way traffic |
| Opening Method | IC/ID card reader, etc. |
| Opening Signal | Switch on |
| Traffic Speed | 30 people/minute |
| Input Voltage | AC220V ± 10V, 50Hz |
| Input Interface | +12V level signal or DC12V pulse with pulse width > 100ms |
| Communication Interface | Dry contact |
| Working Temperature | -20°C to 70°C |
| Power | 30-60W |
| Service Life | Not less than 3 million cycles |
| Protection Level | IP54 |

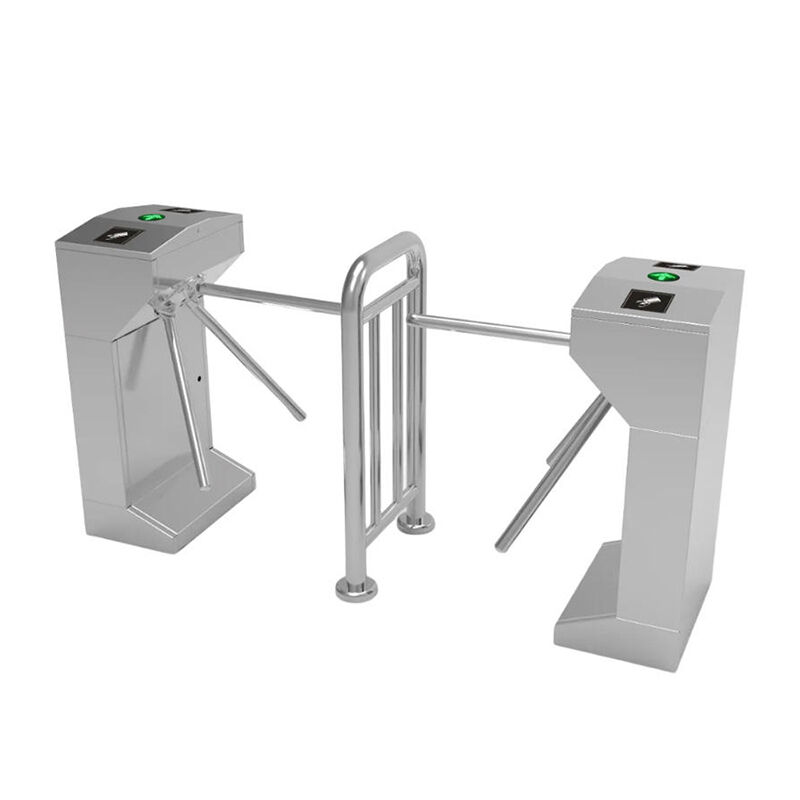

Product Image
Functions and Features
- Auto-reposition function: Locks automatically if passengers don't pass within regulated time after card read
- Bi-directional or uni-directional passing options
- Automatic arm drop during power failure
- Self-lock function: Arm locks automatically after passenger passing
- LED passing arrow indicates direction for passenger guidance
- Standard interfaces for easy integration with various readers sending relay signals
- Stable operation with minimal noise
Applications
The 304 stainless steel waist-height tripod turnstile gate is suitable for numerous locations including airports, bus stations, metro stations, supermarkets, police stations, factories, colleges, and commercial buildings.
OEM Services
We offer comprehensive OEM services including custom barrier gate configurations according to your specific requirements, logo printing on turnstiles, and customized retail box packaging.
