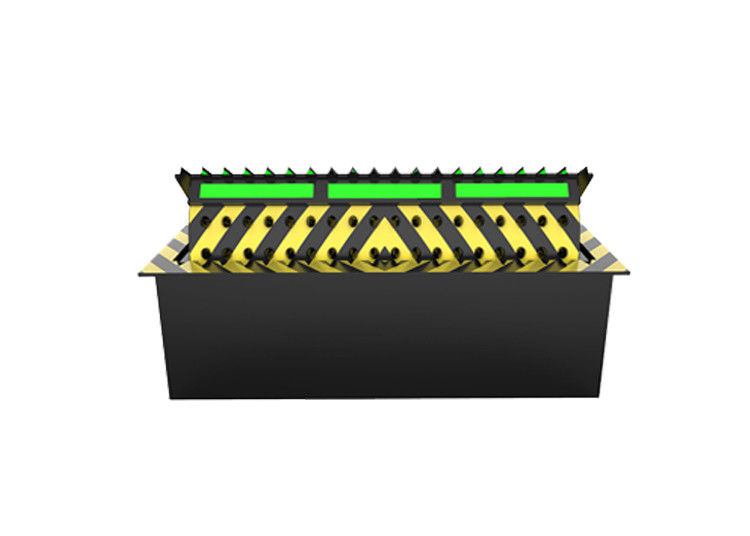

A3 Steel Hydraulic Road Blocker Barrier with 3.7KW Power and IP68 Protection
  • A3 Steel Hydraulic Road Blocker Barrier with 3.7KW Power and IP68 Protection
  • A3 Steel Hydraulic Road Blocker Barrier with 3.7KW Power and IP68 Protection
  • A3 Steel Hydraulic Road Blocker Barrier with 3.7KW Power and IP68 Protection
A3 Steel Hydraulic Road Blocker Barrier with 3.7KW Power and IP68 Protection

A3 Steel Hydraulic Road Blocker Barrier with 3.7KW Power and IP68 Protection

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB02
Product Details
Product:
Road Blocker
Control Voltage:
24V
Power Supply:
3 Phase 380V
Protection Level:
IP68
Starting Time:
≤ 2S
Material:
A3 Steel
Highlight:

Rising Spike Hydraulic Road Blocker

,

Hydraulic Road Blocker 3.7KW

,

A3 Steel Hydraulic Road Barriers

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , L/C, D/A, D/P
Supply Ability
100pcs per month
Product Description
A3 Steel Hydraulic Road Blocker 3.7KW With Rising Spike
Remote Control Anti-Terrorist Automatic Hydraulic Traffic Road Blocker Barrier
Hydraulic road blockers (also known as anti-terrorism walls) are available in heavy and standard types, both utilizing hydraulic lift technology. Designed to prevent unauthorized vehicle entry, these barriers offer high availability, reliability, and security. They can be customized to meet specific site requirements and include an emergency release system for power outage situations.
A3 Steel Hydraulic Road Blocker Barrier with 3.7KW Power and IP68 Protection 0
Product Specifications
Control System Hydraulic-electricity
Power Supply Voltage 380V (control voltage 24V)
System Power 3.7KW
Pressure Capacity Max. 120 tons of container trucks
Anti-collision Rating K12 (equivalent to 120KM/hour impact)
Protection Level IP68 (dustproof, waterproof)
Open Time 1-3S (adjustable)
Closing Time 2-3S (adjustable)
Communication RS485 ≤ 1200M
Elevation Range 450mm-800mm
Working Temperature -45°C to 75°C
Applications
Hydraulic Road Blockers are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial facilities, ports, warehouses, parking lots, and all locations requiring vehicle traffic restriction.
Standard Dimensions
L3000×W1000×H760, Rising height: 500mm
L3500×W1000×H760, Rising height: 500mm
L4000×W1000×H760, Rising height: 500mm
L4500×W1000×H760, Rising height: 500mm
L5000×W1000×H760, Rising height: 500mm
L5500×W1000×H760, Rising height: 500mm
L6000×W1000×H760, Rising height: 500mm
All dimensions customizable to specific requirements.
Key Features
  • Hydraulic control system with multi-language LCD display
  • Manual operation capability during power outages
  • Gang-control interface for multiple unit coordination
  • Reliable heavy-duty structure with smooth, low-noise operation
  • Reversible operation during rising and falling cycles
  • Hydraulic drive with hydraulic lock mechanism
  • PLC programming command control system
  • Built-in PLC encryption system for security
  • Double dynamic double oil pump (2.3ML/time)
  • PT international interface hydraulic oil hose
  • Storage environment: -10°C to 75°C, rainproof, moisture proof and dustproof
  • Weight: 2200kg-5500kg (approximately)
