| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB02 |

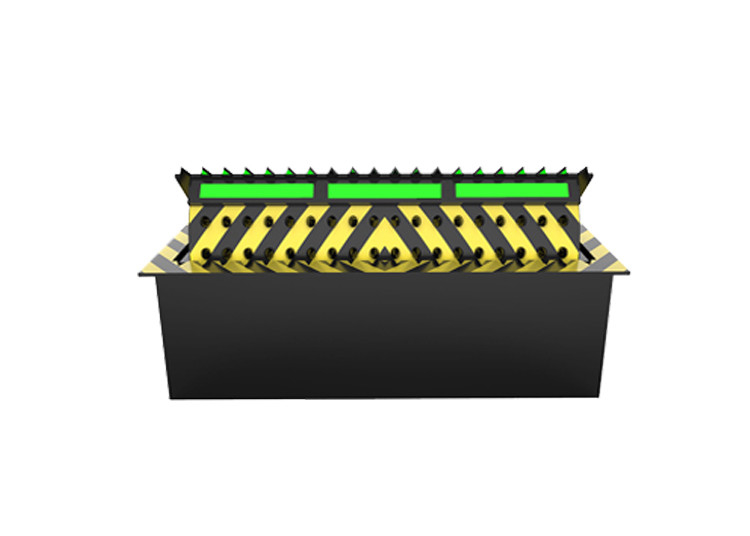

Remote Control Anti-Terrorist Automatic Hydraulic Traffic Road Blocker Barrier With Rising Spike
Hyarulic road blocker introduction
Hydraulic road blocker (also known as anti-terrorism wall or road blockers). It is divided into heavy and
standard type, both based on the hydraulic lift.
The purpose of it is mainly to prevent non-permitted vehicles forcibly entered, with high availability, reliability,
security, according to the site and customer needs with a variety of configurations to choose from and can be
customized to meet the functional requirements of various customers.
It also equipped with an emergency release system in case of power outages and other emergency situations,so
that vehicles could pass normally when power off.
Product specification
|
Control system
|
Hydraulic-electricity
|
|
Power supply voltage
|
380V (control voltage 24V)
|
|
System Power
|
3.7KW
|
|
Pressure capacity
|
Max.120 tons of container trucks
|
|
Anti-collision
|
K12 (equivalent to 120KM / hour impact, the car is blocked, the
equipment works as usual)
|
|
Protection level
|
IP68 (dustproof, waterproof)
|
|
Open time
|
1~3S (adjustable)
|
|
Closing time
|
2~3S (adjustable)
|
|
Communication
|
RS485 ≤ 1200M
|
|
Degree of elevation
|
450mm-800mm ()
|
|
Working temperature
|
-45 ° C ~75 ° C
|
Product Application
The Hydraulic Road Blocker are widely used in highway toll stations, checkpoints, prisons, airports, government
agencies,embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses,
parking lots, and all places where vehicle traffic is restricted.
Standard Road blocker size: (mm)
L3000*W1000*H760,Rising height:500(Customized)
L3500*W1000*H760,Rising height:500(Customized)
L4000*W1000*H760,Rising height:500(Customized)
L4500*W1000*H760,Rising height:500(Customized)
L5000*W1000*H760,Rising height:500(Customized)
L5500*W1000*H760,Rising height:500(Customized)
L6000*W1000*H760,Rising height:500(Customized)
MAIN FEATURES
1, control system: hydraulic (liquid crystal display,english,russian,turkish,spanish,different language menu,
the language is customized).
2, power supply voltage: 380V (control voltage 24V).
3. System Power: 3.7KW
4, pressure capacity: Max. 120 tons of container trucks.
5, Anti-collision: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)
6, protection level: IP68 (dustproof, waterproof)
7, open time: 3~6S (adjustable).
8, closing time: 3~6S (adjustable).
9, communication: RS485 ≤ 1200M.
10, the degree of elevation: 450mm-800mm.
11, working temperature: -45 ° C --- 75 ° C.
12, Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof.
13, Weight:2200kg-5500kg approx
