High End Servo DC Motor Backup Battery Automatic Car Park Barrier System

Place of Origin SHENZHEN, CHINA
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG138-SV
Minimum Order Quantity 1
Price negotiable
Packaging Details CARTON/WOODEN
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Surface Treatment Metal Powder Electrostatic Spraying Working Temperature(motor) -45℃~+85℃
Application Indoor/outdoor Power Supply 24/100/240VAC,50/60Hz
Place Of Origin Shenzhen,China Operation Time 0.6s/2.5m, 0.9s/3m, 2s/4m, 5s/6m
Leave a Message
Product Description

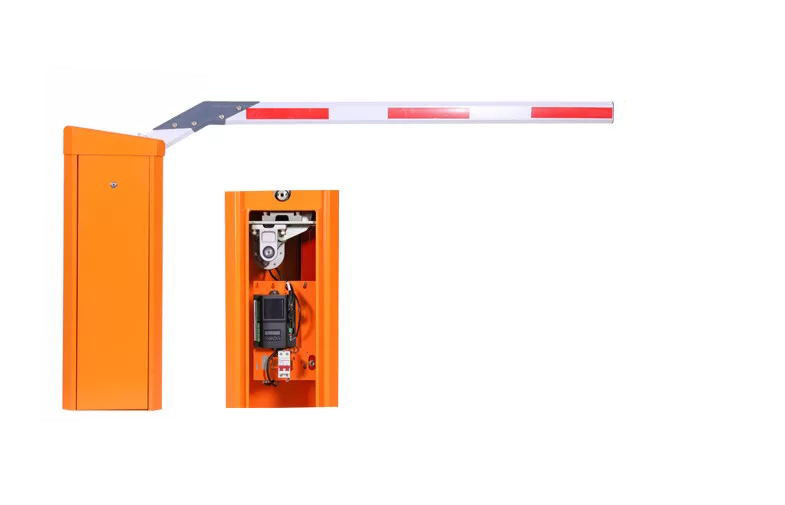

High End Servo DC Motor Backup Battery Automatic Car Park Barrier System



Product outline



The servo barrier gate series, which manufactured by our company, adopts international advanced
technology, mechanical and electrical integrated design. Planet gear drive, high torque, un-blocked, oil tight,
no noise, automatically Self-locked when power off, with 10 million operation times. The motor uses the DC 24V
permanent magnet synchronous motor (PMSM motor), apply to the global voltage, high-speed operation and
rapid response, frequent positive &negative operation in 24 hours does not heat, speed time can be adjusted
based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging
and free-maintenance, achieve the fully automation and intelligentize, and the barrier arm open/close is fast
and smooth, easy to use and safe.

High End Servo DC Motor Backup Battery Automatic Car Park Barrier System 0

Technicical Specifications



BG-138 barrier gate 0.6S 0.9S
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 54 54
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor No-load Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying
DZ Controller
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55


Functions and Features

1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.



2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable,

not easy to break, safe and reliable.


3. A variety of input and output modes can be selected, normally open normally closed are optional.


4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves

prominent place to install.


5. Closing speed can be adjusted.


6. Barrier gate up &down signal relay switch output.


7. Barrier gate running state: OK signal output indicating that the gate is working properly.


8. Barrier gate operation abnormal alarm signal output.


9. R&G Traffic light relay switch signal output.


10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.


11. Count mode interface.


12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation

of the opening action.


13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.


14. Delay closed selection function.


15. High-sensitivity arm auto reverse function (intensity can be adjusted).


16. Parking system interface.


17.RS485 or RS232 network communication control up &down interface (no need to install communication module)


18. Anti-collision alarm signal interface.


19. Adjustable speed port (from 0.9s to 10 s)


20. High-strength precision cast steel, industry moving parts beyond the industry quality



The parameter for selecting the balance tension spring



Boom Type The Length of Boom Selection Spring
Boom
Type
Spec.(diameter*Length)

Straight Boom/Folding Boom
6M≥L>5M Extension Spring (ø5.5MM*280)+(ø4.5MM*280)
5M≥L≥4.5M (ø5.5MM*280)
4.5M>L≥3M (ø4.5MM*280)
Fence Boom 5M≥L≥4M (ø6.5MM*280)+(ø6.5mm*x280)
4M>L≥3M (ø5.5MM*280)+(ø4.5mm*280)

(the parameter is based on the company’s boom)
