IP54 Servo Motor Automatic Barrier Gate Solar Power 150W

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG138-SV
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Arm Type Straight, Folding And Fence Vailable Working Temperature(motor) -45℃~+85℃
Warranty 1 Year Power Supply 24/100/240VAC,50/60Hz
Place Of Origin Shenzhen,China Operation Time 0.6s/2.5m, 0.9s/3m, 2s/4m, 5s/6m
High Light

IP54 Automatic Barrier Gate

,

Servo Motor Automatic Barrier Gate

,

150W Parking Barrier Gate

Leave a Message
Product Description

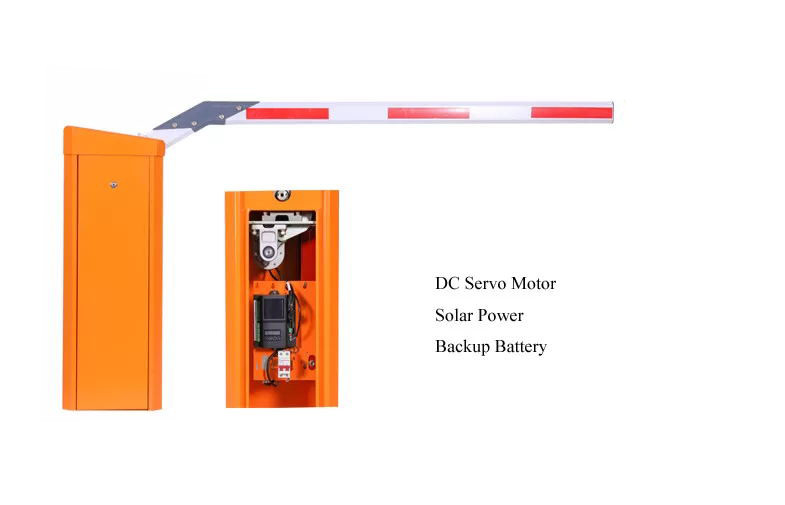

Solar Power Automatic Barrier Gate DC Servo IP54 No Need Human Intervention

Quick Details
1. The gate automatically open when the power is off, no clutch design, no need human intervention
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable,
not easily broken, safe and reliable
3.Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.



The parameter for selecting the balance tension spring



Boom TypeThe Length of BoomSelection Spring
Boom
Type
Spec.(diameter*Length)

Straight Boom/Folding Boom
6M≥L>5MExtension Spring(ø5.5MM*280)+(ø4.5MM*280)
5M≥L≥4.5M(ø5.5MM*280)
4.5M>L≥3M(ø4.5MM*280)
Fence Boom5M≥L≥4M(ø6.5MM*280)+(ø6.5mm*x280)
4M>L≥3M(ø5.5MM*280)+(ø4.5mm*280)

(the parameter is based on the company’s boom)


Specifications:



BG-138 barrier gate0.6S0.9S
Max Boom Length and Diameter2500mm, Ф75mm3000mm, Ф75mm
Open/Close Time0.6sec0.9sec,2.5sec,4.5sec
Power Supply24/100/240VAC,50/60Hz24/100/240VAC,50/60Hz
Power Consumptionmax.150W100w
Machine CaseVarnished 2.0mm steel plateVarnished 2.0mm steel plate
Machine Case Size(W*D*H)342*312*959mm342*312*959mm
Net Weight43kg42.6kg
Operating Temperature Range℃-45℃~+85℃-45℃~+85℃
Driving MethodServo motorServo motor
Protection System(IP)5454
Insulation ClassFF
Relative Humidity≤90%≤90%
Motor No-load Speed3000r/min3000r/min
Remote Control Distance≤100m (open, sunny weather)≤100m (open, sunny weather)
Output Torque1.2N.M*140=160N.M0.86N.M*140=120N.M
Running Noise<45dB45dB
Surface TreatmentOutdoor metal powder electrostatic sprayingOutdoor metal powder electrostatic spraying
DZ Controller
Voltage(±10%)100-240 volt100-240 volt
Frequency(Hz)50-6050-60
Max Power Consumption(watt)88
FuseF5AHF5AH
Control Voltage24V DC/max.3000mA24V DC/max.3000mA
Input-end Number88
Open Collector Output Number22
Zero Level Reversal Relay Number33
Operating Temperature Range℃-45℃~+85℃-45℃~+85℃
Protection System(IP)2020
Weight(gram)450gram450gram
Dimensionmm(L-W-H)158*126*55


Functions and Features
1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.

2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable,
not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation
of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality
