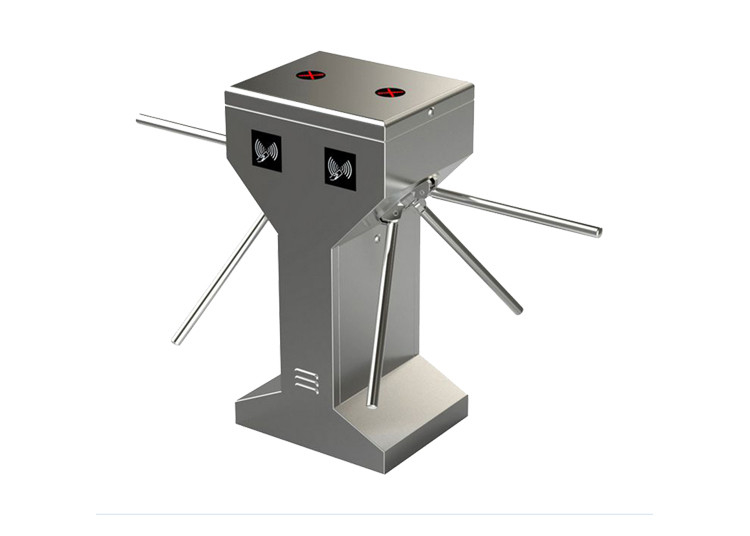

Access Control Board Mechanism Tripod Turnstile Gate Face Recognition
  • Access Control Board Mechanism Tripod Turnstile Gate Face Recognition
  • Access Control Board Mechanism Tripod Turnstile Gate Face Recognition

Access Control Board Mechanism Tripod Turnstile Gate Face Recognition

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-TT01D
Product Details
Passage Width:
Indoor/outdoor With Tent
Thickness Of Housing:
Input Voltage:
220V/110V ±10%
Control Voltage:
Passing Speed:
30 Person Per Minute
High Light:

Board Mechanism Tripod Turnstile Gate


Access Control Tripod Turnstile Gate


Face Recognition Vertical Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1,000 pcs per month
Product Description

Security Vertical Face Recognition Semi-Automatic Access Control Board Mechanism Tripod Turnstile Gate




Tripod turnstile offer a compact, cost-effectiv, fast operating, easy to use, reliable entrance solution for internal

or external use in areas where there is a large and constant flow of people.


The advantages of using a turnstile compared to a conventional gate include the better utilization of manpower,

increased reliability and improved security. This mechanism allows a single emplyee to enter into the premises

only after verification through the Access Control Module that is integrated onto the turnstile.




Power Supply AC220V/110V
Temperature -20 ℃ to 60
Humidity <95%, without concretion
Passage Width <=600mm
Passing Speed 30 persons/min
Power Consumption 100W
Input Interface dry contact
width more than 100ms
drive current >10mA
Communication Interface RS485 (Distance:<=1200m)
Material 304 stainless steel
Dimension 480*560*980 mm




1. GB 304 stainless steel sheet metal forming, beautiful, durable.

2. Dimensions : 480 × 560 × 980 (mm)

3. Channel width: less than 550 (mm);

4. Brake lever steering : two-way

5. Control mode: manual/ automatic (optional)

6. Can mount a variety of control devices: metal security gate/ IC card/ ID card/ card/ barcode card, etc.

7. Working environment: indoor and  outdoor

8. Ultra quiet design: Mechanical design using third-generation silent, smooth operation with less noise impact;

9. Power off arm auto drop function: arm will auto drop when power cut.

10. Anti-collision function: Without authorized signal if the pedestrian push the brake lever, arm is locked.

Applications of Tripod Turnstile Gate:


304 stainless waist height tripod turnstile gate is suitable for many locations:


They are optimized economical solution for airport, bus station, metro station, supermarket, police station,

factory, colleges, commercial building etc.


Do you provide OEM service?


Yes, we can offer OEM services as follows:


1) We can customize barrier gate according to your needs.


2) We can print your logo on the turnstile, and customize retail box packing and other things you need.




Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing,

producing, processing, testing, packing, storing, and transportation, believe our team is best team in china.


Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes,

unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.


Q.How about the packing for product?
A:Is it easy damaged during transportation? For light products, will use strong carton box .

For heavy structure products, the packing is Standard Export ploy Wooden Case.


Q. What’s your main product?
A:We professional in access control products like turnstile, barrier gate, parking lock, parking barrier gate, road blocker etc.


Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world.
