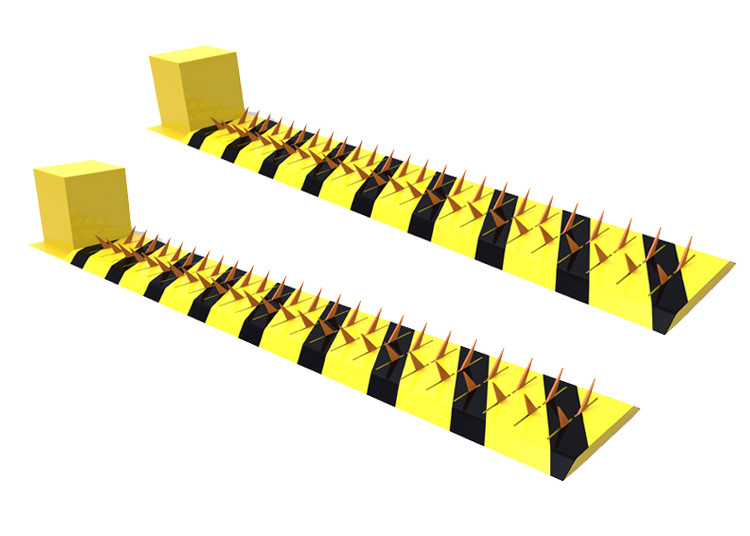

Electro Mechanical Tyre Killer High Torque DC Motor AC 220V 110V

Product Application

The tyre killer are widely used in highway toll stations, checkpoints, prisons, airports, government agencies,

embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots,

and all places where vehicle traffic is restricted.


PRODUCT DESCRIPTION

The tyre-killer is made of A3 steel and steel blade(Shape looks like speed bump). It adopts the mechanical and

electrical integration remote control device,easily operated,safe and reliable.It is advanced equipment to intercept

forbidden vehicles and terrorist vehicles.

SINOMATIC electromechanical tyre killers are controlled by a PLC. Open/close function can be achieved by every

kind of card readers, biometric readers like fingerprint etc, radio control on/off switch or key switch etc. Besides,

safety accessories like loop detectors, photocells, flashing lights or red/green light can be integrated to the control

electronics very easily. Time delay arming of the tire killer can be adjusted between 0-60 seconds.

Product specifications

Our advantage

High security and safety modes.
Spike sectors can move independently.
Manual operation in case of power failure.
High-torque DC motor for greater reliability.
External limit switches provide a failsafe operation.
Emergency lowering or up possible in case of treat or fire.
Indirect drive models can operate independently or traffic barrier unit.

Standard size: (mm), can be customized.

L3000*W540*H72, Rising Length:150
L3500*W540*H72, Rising Length:150
L4000*W540*H72, Rising Length:150
L4500*W540*H72, Rising Length:150
L5000*W540*H72, Rising Length:150
L5500*W540*H72, Rising Length:150
L6000*W540*H72, Rising Length:150

PRODUCT MAIN FEATURES

1. Quite and fast

2. Solid and endurable structure, the largest traffic capacity is up to 60t

3. The system is safe, reliable and stable

4. Perform exactly and operate steadily, making the barrier low noise

5. The working environment is -40° C to +70° C

6. Low trouble rate, high reliability, long life cycle,

7. Easy maintenance, and the rate is low

8. Can combine with other control equipment making the barrier auto control

9. In case of electric failure or trouble, the movable barrier can be manually operated to return to the horizontal position,

making the cars pass smooth

Tyre killer system consists:

Tyre killer system consists of a main frame, electric transmission station and electric control box.

• Main frame: mainly include A3 steel, steel blade, base and drive shaft. The whole body is steel structure , adopts GB A3 carbon steel plate and channel steel welding with high-strength load-bearing capacity and anti-collision capacity; Inside body without electrical appliances and line settings , which is waterproof and safe. The device is mounted on the driveway or designated location to limit vehicle traffic.
• The electric transmission station: mainly include motor, gear box, limit switch, optical axis,bearings, base and a full transmission components.Inner structure no gear, no rotating belt, no maintenance,more stable and longer lift. It’s the power source of the tyre killer system, mounted on the side of the main frame. When outage, can drop down or lift up the steel blade manually.
• Electric control part: mainly include control board, transformer, relays, long distance remote control device and wire control device.
