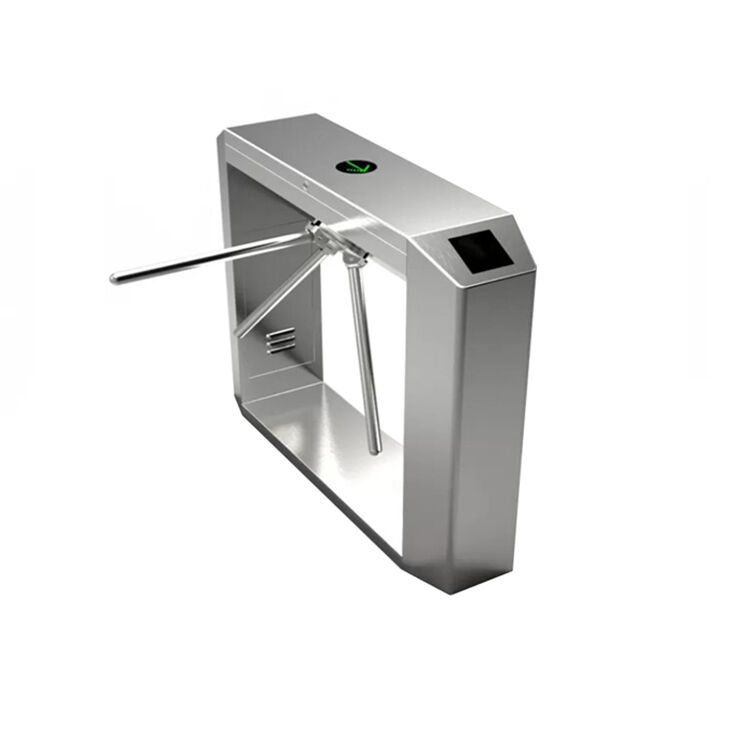

Stainless Steel Automatic Tripod Turnstile Gate with RFID Reader for Access Control
  • Stainless Steel Automatic Tripod Turnstile Gate with RFID Reader for Access Control
  • Stainless Steel Automatic Tripod Turnstile Gate with RFID Reader for Access Control
  • Stainless Steel Automatic Tripod Turnstile Gate with RFID Reader for Access Control
Stainless Steel Automatic Tripod Turnstile Gate with RFID Reader for Access Control

Stainless Steel Automatic Tripod Turnstile Gate with RFID Reader for Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Application:
Indoor/outdoor With Tent
Direction:
Single Or Bi-direction
Material Of Housing:
304 Or 316 Stainless Steel
OEM/ODM:
Yes
Arm Length:
510mm
IP Grade:
IP54
Highlight:

Building Site Automatic Tripod Turnstile

,

Stainless Steel Automatic Tripod Turnstile

,

RFID Reader Pedestrian Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
Building Site Stainless Steel Automatic Tripod Turnstile RFID Reader
Advanced Access Control Solution
This bridge style tripod turnstile gate with integrated RFID reader and QR code scanner provides superior user experiences and versatile applications for entrance and exit access control management. Ideal for schools, real estate complexes, factories, libraries, and other secure facilities.
Premium Construction & Design
Constructed from standard 304 stainless steel with a streamlined structure, this turnstile can be installed indoors or outdoors with shelter. Designed to regulate pedestrian flow, it features counting, attendance tracking, and current limiting functions.
Key Features
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic rotation control: rotates to next idle position if arm moves more than halfway, returns to current position if less than halfway
  • Built-in adjustable tensioner controls rotation force to minimize over-rotation - requires only light pushing for operation
  • Configurable as bi-directional or uni-directional with tamper-resistant housing secured by special key
  • Innovative mounting surface ensures simple and convenient installation for system integrators
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint systems, etc. (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Equipped with automatic regulated hydraulic buffer device for quiet, impact-free operation
Product Specifications
Product Name Tripod Turnstile
Model SN-TT03
Product Size 1200×280×980mm
Material SUS 304 stainless steel
Internal Structure Steel frame structure
Pass Width 550mm
Operating Temperature -20℃ to 60℃ (indoor or outdoor)
Passage Direction Single directional/Bi-directional
Power Input AC220V, 50Hz / AC110V, 60Hz
Driving Voltage DC24V 5A
Driving Mode Solenoid
Reacting Time 0.2S
Throughput Rate 30 persons/minute
Instruction Indicator LED
External Equipment IC card reader, ID card reader, code scanner, face recognition module, fingerprint recognition module (optional)
Product Dimensions
Stainless Steel Automatic Tripod Turnstile Gate with RFID Reader for Access Control 0
Why Choose Our Turnstile Solutions
  1. Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  2. Prompt delivery with standard models kept in stock
  3. Custom OEM/ODM orders to meet specific client requirements
  4. Trial orders accepted for testing before bulk purchasing
  5. Comprehensive online technical support for business partners
  6. Multiple transportation options: sea shipment, air cargo, or express delivery
  7. Factory visits welcome on working days for client inspection
