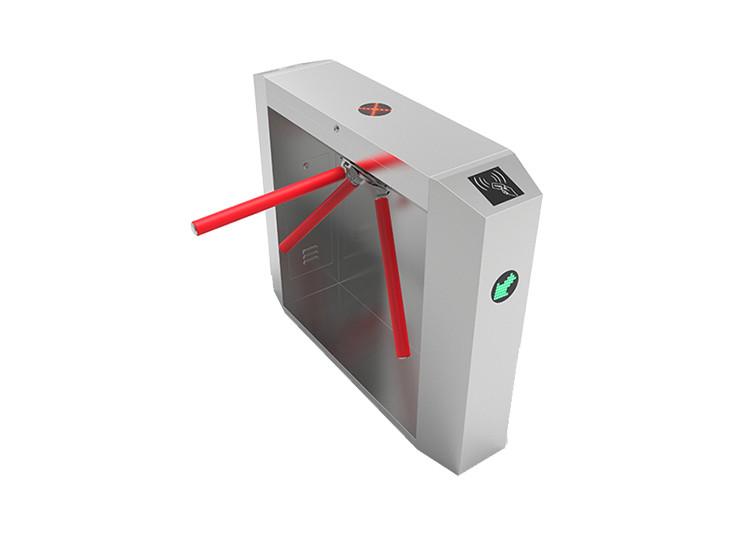

Building Site Stainless Steel Automatic Tripod Turnstile RFID Reader
  • Building Site Stainless Steel Automatic Tripod Turnstile RFID Reader
  • Building Site Stainless Steel Automatic Tripod Turnstile RFID Reader

Building Site Stainless Steel Automatic Tripod Turnstile RFID Reader

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Application:
Indoor/outdoor With Tent
Direction:
Single Or Bi-direction
Material Of Housing:
304 Or 316 Stainless Steel
OEM/ODM:
Yes
Arm Length:
510mm
IP Grade:
IP44
High Light:

Building Site Automatic Tripod Turnstile

,

Stainless Steel Automatic Tripod Turnstile

,

RFID Reader Pedestrian Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Airport Building Site Stainless Steel Automatic Tripod Turnstile With RFID Reader System



Product description



Support integrated for both card reader and QR code scanner, this bridge style tripod turnstile gate provides better

user experiences and more applications for entrance and exit access control management for school,Real estate,

factory,library,etc



The box materials using standard 304 stainless steel, streamline structure, can be installed in indoor, outdoor with shed,

applicable to restrict the passing rate of the place, has the count, attendance, current limiting function.







Features of Tripod Turnstile Gate:



1.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce

maintenance cost.



2.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will

auto-rotate back to the current idle position.



3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed

lightly to rotate therefore even elderly or children are able to use the turnstile.



4.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid

tampering.



5. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.



6. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.

(Access controller needed)



7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact

when running.



Product specifications



Product Name:
Tripod Turnstile
Model:
SN-TT03
Basic Parameter
Product Size:
1200*280*980mm
Material:
SUS 304 stainless steel
Internal Structure:
steel frame structure
Pass Width:
550mm
Operating Temperature:
-20℃~60℃ indoor or outdoor
passage direction:
Single directional/Bi-directional
Technical Parameter
Power Input:
AC220V,50Hz/ AC110V, 60Hz.
Driving Voltage:
DC24V 5A
Driving Mode:
Solenoid
Reacting time:
0.2S
Throughput Rate:
30p/m
Instruction:
Indicator LED
External Equipment:
IC card reader, ID card reader, code scanner, face recognition module, fingerprint recognition module (optional)



Product dimension

Building Site Stainless Steel Automatic Tripod Turnstile RFID Reader 0
