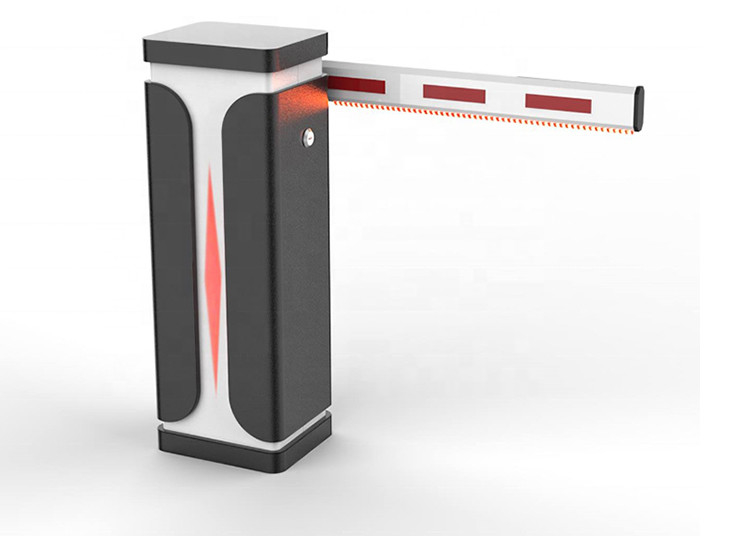

Adjustable 0.6- 6s RS485 Parking Lot Barrier Gate DC Brushless
|Place of Origin||Shenzhen, China.|
|Minimum Order Quantity||Sample order accepted|
|Packaging Details||Carton/Plywood box/Pallet|
|Delivery Time||5-10 working days after payment received|
|Payment Terms||T/T, Western Union, MoneyGram|
|Supply Ability||3,000pcs per month|
|Opening Speed||0.6s~6s||Motor Rated Power||100w|
|Input Voltage||220V/110V ±10%, DC24V/12V||Frequency||50Hz/60Hz|
|Remote Distance||>30M||Duty Cycle||100%|
RS485 Parking Lot Barrier Gate,
6s Parking Lot Barrier Gate,
DC Brushless Motorized Barrier Gates
DC Brushless motorzied barrier gates model S10, the newly designed, maintenance free with exclusive
MicroDrive unit offers 100% more torque, 100% duty, are the fastest toll barriers available with an opening time
as fast as 0.6 seconds. Opening speed is adjustable from 0.6s to 6s or more.
This barrier redefines performance in non-stop toll applications. It is the ideal solution for very high frequented toll
stations providing great reliability and sustainability as well as comprehensive functionality.
This Barrier use innovative technology design and manufactured with precision machinery to guarantee satisfaction
in quality and reliability for years to come. The barrier has been lab tested for more than 10 millions opening / closing
and still without any degrade in performance.
1. NO SENSOR & LIMIT SWITCH
Innovative design which doesn’t need any sensor and limit switch.All control by Micro drive unit precisely.
Four main parts only, mechanical, motor, control unit, power supply.
2. MAINTENANCE FREE
DC Brushless Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon
brush in a certain time. Galvanized and powder coated parts are anti-rust ensure long termusage.
And no other smaller parts need to be maintain too.
3. 24/7 CONTINUOUS OPERATION
With a very smooth and quiet motorized drive mechanism, Open
and close very stable, offer maximum reliability at fast speeds, in 7*24 hours non-stop usage.
4. SPEED ADJUSTABLE
Our DC servo barrier gate allows you to set opening and closing speed according to requirements. Shorter arm,
the faster speed can be set.
5. AUTO-REVERSE FUNCTION
When arm falling and meets obstacles, arm will auto reverse to prevent further damages.
6. MULTIPLE INTERFACES
* Wire Control Signal Input(open&close&stop)
* R&G Light signal (Up&Down Limit signal output optional),
*can use for counting purpose also
*Arm Presence Detection(Optional)
* RS485 Communication(Optional)
* More If Required
7. EASY INTEGRATION
Access Reader or Push button or remote controller can be used to trigger the barrier gate to open via a
simply dry contact signal.After delay timer elapsed, barrier gate will close automatically byitself in a certain
8. USER FRIENDLY
Motorized arms provide comfortable passage while maintaining a high level and high density of car flow
management, such as in toll gate.
When power off, barrier arm can be lifted up by manual for a free exit. When power supply is restored,
Barrier gate will automatically return to close position.
10. Auto Testing Mode
Control board can set auto testing mode
|Max Straight Arm||2.5M||3M||4.5M||6M|
|Speed range||0.6S ~ 6S|
|Motor rated power||100W|
|Supply voltage||220V/110V ±10%, DC24V/12V|
|Drive system||DC brush-less servo motor|
|Protection rate||IP 54|
|Working temperature||-35℃ to 70℃|
