250W 24V Motor Parking Barrier Gate LED Light Advertising Arm
  • 250W 24V Motor Parking Barrier Gate LED Light Advertising Arm
  • 250W 24V Motor Parking Barrier Gate LED Light Advertising Arm
  • 250W 24V Motor Parking Barrier Gate LED Light Advertising Arm

250W 24V Motor Parking Barrier Gate LED Light Advertising Arm

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BGA1
Product Details
Working Temperature:
-35℃~+85℃
Running Speed:
3s To 8s
Motor Type:
DC Brushless
Arm Type:
Advertising Arm
Housing Material:
1.5mm Cold Roller Steel Plate
Rated Voltage:
DC 24V
High Light:

24V Motor Parking Barrier Gate

,

250W Parking Barrier Gate

,

Advertising Arm Retractable Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability
1,000pcs per month
Product Description

Product Overview



Thank you for purchasing the DC bruhsless motor advertising barrier gate. This product adopts the latest mold design

technology, mold die-casting manufacturing technology, double-row five tension springs balance design, long spring life,

good tensile flexibility. Brushless control speed regulation technology, no clutch design, more reliable quality, more

convenient to use, the movement adopts two-stage worm gear transmission, curved crank arm and three connecting

rod structure, UP&DOWN is fast and stable. Easy maintenance and long service life.



Arm type, arm lenght and opertation time



Arm Type Arm length(L) Operation time(S) Center height (H)
Advertising arm 4.5m 8S H=1.04M,Height of arm center above the ground
3.8m 6S
3m 4S



Technical parameters



1 Working temperature(motor): -35℃~+85℃

2 Rated voltage:DC24V

3 Running speed:3s-10s

4 Rated current:9.5A

5 Rated power:250W

6 No-load speed:2500rpm

7 Rated speed:1800rpm

8 Output Power:120N.m

9 Relative humidity:≤90%

10 Remote control distance:≤100M(in the open place)

11 IP Degree:IP44

12 Max length of arm:4.5M



Product advantage



1. 3second to 8 second open/close time adjustable;



2. Advertising DC brushless motor & 5 million MCBF;



​3. 5tension spring balance makes is heavy duty and more durable;



​4.Led lights with time swtich ,set a time for light on as you require;


5. Simplified design, easy installation and maintenance reduces your labor cost;


6. Fast finishing time for you to become more competitive at your local market :3-5 days for small order;



7. OEM Brand, Logo, Label available;



8.1year standard warranty, excellent after-sales service;



9. 24h*7d at your service to give you best support;



PRODUCT PHOTO

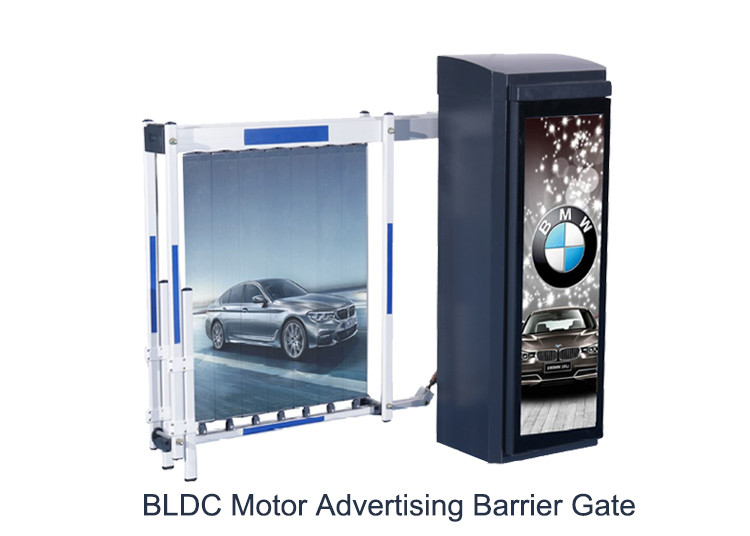

250W 24V Motor Parking Barrier Gate LED Light Advertising Arm 0



PRODUCT SPECIFICATIONS



Name SINOMATIC DC Advertising Gate Barrier
Close/Open time 3s-8s adjustable
Arm Type Advertising Arm
Material

Cold roll plate, 2mm thickness sheet

3 years without rust, shedding and fading

Size 320*280*935 mm
Spring And Bearing more durable, 5 million times through operation testing
Rating Power 200w
Rating Voltage DC 24V
Remote Control Distance Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size 1020*375*467mm , with seven layers carton case

inside with air bubble film for protection

G.W 50 KG
Delivery By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested

Payment Sample: full payment

Order: usually 40% advance deposite, balance before shipment

Advantages 1. Professional Manfacturer for more than 10 years

2. Mould Production, High Accuracy

3. Heat Treatment, more durable than normal

4. Better Service from Professional Work Team

Application SINOMATIC Advertising Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle while making profit, for parking lot, shopping center, exhibition center, hospitals,airport ,residential,shopping center,et





PACKAGE



Packed in bubble wrap firstly, and then reinforced with carton for outer packing.



Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole
