Vehicle Detector Sensor
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE |
| Model Number | TRD-201 |

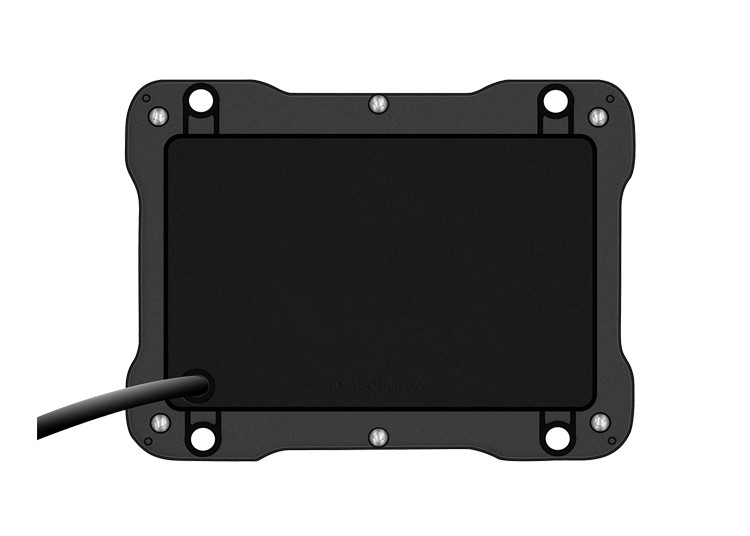

100ms Response Time 0m～6m Coverage Range Vehicle Radar Detector Sensor
Radar Vehicle Detector Brief Introduction
Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band.
The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing
on the target's reflected echoes to achieve fast target Detection.
Radar Vehicle Detector Advantages
The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application.
Product Specification
Specifications
2.2 Detection Accuracy
2.3 Mechanical properties
Dimensions: 105 mm×78 mm×26 mm; ·
Weight: 85g; ·
Waterproof: IP65
Supply Voltage Range: DC 6V～18V
Supply Current: less than 90 mA/12V. ·
Operating temperature: -40℃～+85℃; ·
Humidity: relative humidity 99% at 25℃.
2.4 Reliability
The equipment can work continuously day and night under the specified conditions, and the
Mean Time between Failure (MTBF) meets: MTBF≧15000 h.
3. Applicable Environment
This radar detector is only applicable to the scenario where the vehicle passes straight
through the barrier gate, and cannot be used when the vehicle turns through the barrier
gate.
4. Key Features
4.1 Blind Zone without Detection Distance
The closest distance of the radar detection target of the barrier gate is zero, which truly
realizes the work without blind spots.
4.2 All-weather Work
The working signal of the barrier radar detector is in the millimeter wave frequency band, with no need for special
heat dissipation. Under the weather conditions such as rain, snow, hail, haze, etc., it has the ability to work continuously
day and night. The detector shell has IP-65 waterproof requirements, there is no need to worry about rainwater entering
the radar and causing radar damage.
4.3 Detection Accuracy
With millimeter wave working signal, radar detector has high working frequency, directional
accuracy and strong anti-interference and so on excellent performance. The radar is not
interfered by the outside world and does not cause interference to outside electronic
equipment. The signal propagation attenuation is large, and the radiation signal strength is
in line with National environmental protection requirements. The detection rate of different
types of vehicles (including cars, trucks, and aluminum vehicles) is higher than 99.9%. When
the vehicle and the barrier radar are at a large angle, they can be reliably detected. The
detection rate of pedestrians is higher than 99.9%.
4.4 Work Reliability
The radar detector shell adopts a waterproof design that conforms to the IP-65 standard. The product has low
power consumption, adapts to extreme high and low temperatures, and works continuously day and night.
Under normal operating environmental conditions, the product will not be accidentally damaged.
4.5 Installation Flexibility
The barrier radar detector is installed and fixed on the outer surface of the barrier machine, and vertical irradiation
passes through the gate of the vehicle or pedestrian. The installation
is very convenient and flexible. For the gate openings of different widths, the radar has the
convenience of setting different sensing distances through the DIP switches, eliminating the
inconvenience of adapting to different distances by relying on computer downloading
software or delimiting the detection area.
4.6 Low Cost to Install and Maintain
The barrier radar is easy to install, maintenance-free, highly reliable and easy to replace. It
not only overcomes the problems of high construction cost and maintenance difficulties for
the installation of the ground sense coil that needs to damage the road surface by personnel, but also solves
the problem of barrier rod control.
4.7 Convenient Power Supply
The barrier radar detector adopts standard 12V DC power supply, which can adapt to
the 6V~18V power supply voltage range, adapt to large voltage fluctuations, and the power
supply current requirement is not large. It can be directly powered by the barrier control
panel, without the need for a separate power supply device.
4.8 Use Environment Adaptability
The barrier radar detector adopts the environment automatic detection technology, without human operation,
and can meet the application of straight pole barrier and
billboard/fence barrier. 5. Installation and Deb
The schematic diagram of radar installation and connection is shown in Figure
The barrier radar detector adopts standard 12V DC power supply, which can adapt to the 6V~18V power supply voltage range, adapt to large voltage fluctuations, and the power supply current requirement is not large. It can be directly powered by the barrier control panel, without the need for a separate power supply device.
