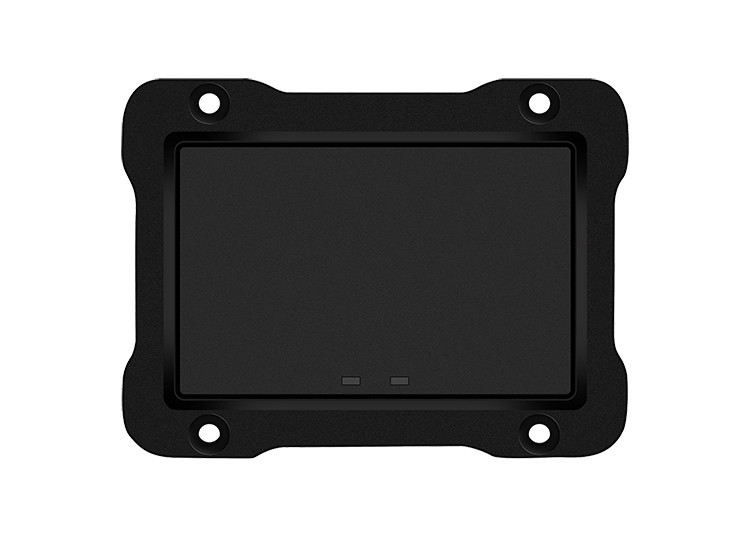

90mA IP65 Waterproof Vehicle Radar Detector Vertical Beam

Convenient Installation Power Supply Boom Barrier Gate Vehicle Radar Detector

Note: This radar product is only applicable to the scenario where the vehicle passes is straight,
cannot be used for vehicle turning

Radar Vehicle Detector  Brief Introduction

Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band.

The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing

on the target's reflected echoes to achieve fast target Detection.

Radar Vehicle Detector  Advantages

The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application.

Specifications

• Center Frequency: 24 GHz;
• Vertical Beam Width: 43°;
• Horizontal Beam Width: 11°;
• Coverage Range: 0 m～6 m;
• Distance Adjustment Range: 2.0 m～6 m (8 levels);
• Response Time: 100ms;
• Signal Output: switching value

Detection Accuracy

• Vehicle Inspection Miss Rate: 0.1%;
• Pedestrian Detection Miss Rate: 0.1%;
• False Detection Rate: 0.05%.

Product dimension

The schematic diagram of radar installation and connection is shown in Figure

Main Features

Detection Accuracy

With millimeter wave working signal, radar detector has high working frequency, directional accuracy and strong anti-interference and so on excellent performance. The detection rate of different types of vehicles (including cars, trucks, and aluminum vehicles) is higher than 99.9%. The detection rate of pedestrians is higher than 99.9%.

Low Cost to Install and Maintain(no need to damage the road surface)

The barrier radar is easy to install, maintenance-free, highly reliable and easy to replace. It not only overcomes the problems of high construction cost and maintenance difficulties for the installation of the ground sense coil that needs to damage the road surface by personnel, but also solves the problem of barrier rod control.

All-weather Work

The working signal of the barrier radar detector is in the millimeter wave frequency band, with no need for special heat dissipation. Under the weather conditions such as rain, snow, hail, haze, etc., it has the ability to work continuously day and night. The detector shell has IP-65 waterproof requirements, there is no need to worry about rainwater entering the radar and causing radar damage.

Convenient Power Supply

The barrier radar detector adopts standard 12V DC power supply, which can adapt to the 6V~18V power supply voltage range, adapt to large voltage fluctuations, and the power supply current requirement is not large. It can be directly powered by the barrier control panel, without the need for a separate power supply device.
