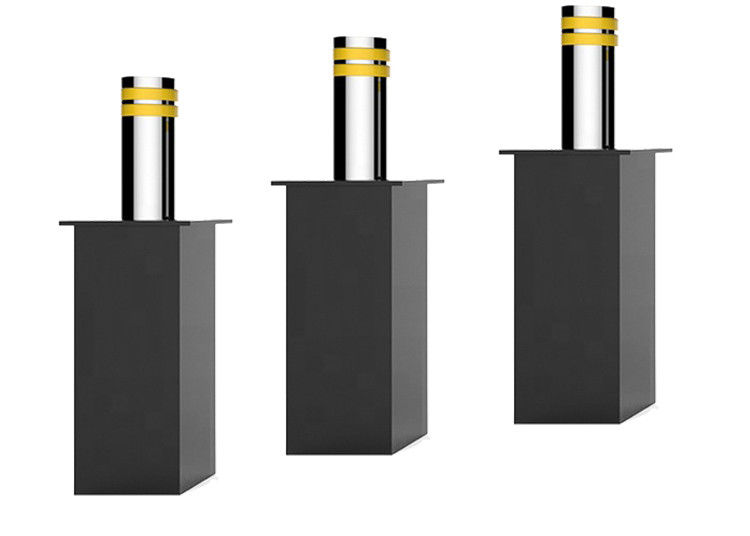

SS316 Hydraulic Retractable Rising Bollards IP68 For Safety Area
Special Offer Automatic Hydraulic Electric Retractable Rising Bollards For Safety Area
Access Control System Integration
The rising bollards can be integrated with traffic barrier gates, smart card charging management systems, and access control attendance systems to form a comprehensive crossing management solution.
Product Structure
Featuring hydraulic drive technology for mandatory interception, these bollards offer strong load-bearing and anti-collision capabilities. The hydraulic transmission ensures stable, fast operation with low noise, high traffic capacity, and reliable performance with strong carrying capacity and stable lifting.
Product Applications
Widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all locations requiring vehicle traffic restrictions.
Product Specifications
| Product Name |
Automatic hydraulic road bollard |
| Material |
304 stainless steel |
| Operate Mode |
Hydraulic-electric integrated |
| Power Supply |
110V/220V (control voltage 24V) |
| Column Diameter |
168mm, 219mm, 273mm, 324mm etc |
| Travel Height |
600mm, 800mm, 1000mm |
| Waterproof Degree |
IP68 |
| Surface Treatment |
Drawing process |
| Operating Temperature |
-30℃ to +70℃ |
| Control Model |
Push button/remote control standard, loop detector/card reader optional |
| Running Speed |
2-4S (ascending) |
| Safety Signs |
Reflective tape/LED warning light zipper/loop detector system traffic lights |
| Cylinder |
Stainless steel/plastic coating for steel tube |
| Optional Function |
Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer |
| Optional Color |
Brushed titanium gold, champagne, rose gold, Brown, red, purple, sapphire blue, gold, dark blue paint, chocolate, stainless steel, Chinese red paint |
SINOMATIC Road Bollard Advantages
- High security anti-ramming automatic barriers
- Different thickness of steel available (default 6mm)
- Multiple color options available
- Customized sizes available
- Steady and safe operation with OMRON PLC control system
- Speedy rising time and durable quality with hydraulic pressure
- Housing with durable and stainless galvanization
- Optimized frame structure with high anti-impact and loading capability
- High security and anti-collision ability
- Reflective band and low energy consumption LED light for night visibility
Automatic Bollard Features
- High security and anti-collision ability
- Pneumatic air pump in control cabinet provides large power safely for extended periods
- Electronic control with automatic rise/fall functionality
- High system independence
Automatic Bollard Reflective Band
Various color options for Glossee aveolate reflective band; requires only minimal light for clear nighttime visibility.
Automatic Bollard Materials Available
304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.
Automatic Bollard Flange
Anti-skid flange with unique pattern design. Compatible with various road surface styles. Built-in PA orientation.
Automatic Bollard Top Cap
Simple integration design compatible with all architectural styles. Excellent workmanship resistant to close attacks.
Rising Hydraulic Bollards Control Center
| Control Center |
PLC (With display) |
| Housing |
Spray paint (Outdoor use) |
| Self-testing Program |
Yes |
| Trial Period Setting |
Yes |
| Warning Light Auto ON/OFF |
Yes |
| Emergency Rising/Dropping |
Yes |
| Emergency Dropping Once Power Off |
Yes |
| Remote Control |
100m |
| LED Remote Control |
30m, 2.4GHz remote control |
| Wire Switch |
Optional |
