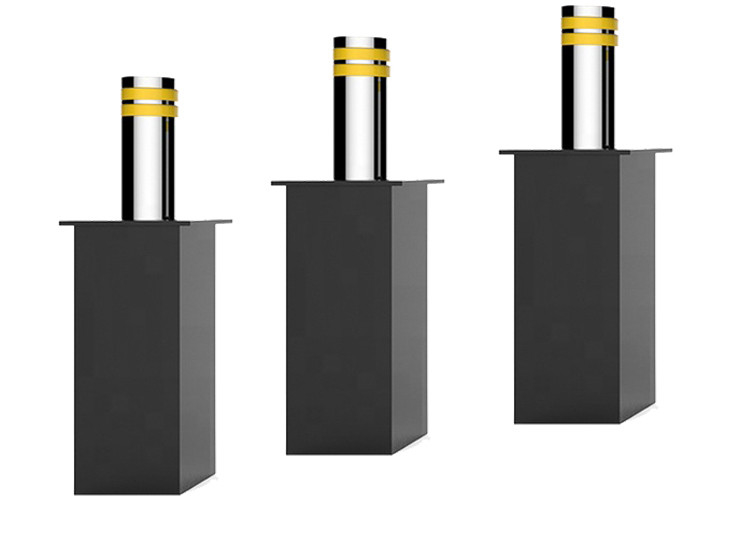

SS316 Hydraulic Retractable Rising Bollards IP68 For Safety Area
  • SS316 Hydraulic Retractable Rising Bollards IP68 For Safety Area
  • SS316 Hydraulic Retractable Rising Bollards IP68 For Safety Area
  • SS316 Hydraulic Retractable Rising Bollards IP68 For Safety Area

SS316 Hydraulic Retractable Rising Bollards IP68 For Safety Area

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
System Control:
Electric Hydraulic
Power Supply:
AC100-240V
Bollard Surface Treatment:
8k Mirror Surface
Bollard Diameter:
219/273/324mm
Bollard Thickness:
6 To 20 Mm
Color:
Customized
High Light:

Hydraulic Retractable Rising Bollards

,

SS316 Retractable Rising Bollards

,

IP68 Automatic Hydraulic Road Bollard

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description

Special Offer Automatic Hydraulic Electric Retractable Rising Bollards For Safety Area​



Access control system integration



The rising bollards can be used together with the traffic barrier gate, the smart card charging management

system and the access control attendance system to form a complete crossing management system.



Product structure



The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision

capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity,

safe and reliable, strong carrying capacity and stable lifting.



Product application



The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies,

military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle

traffic is restricted.





Product specifications



Product Name
Automatic hydraulic road bollard
Material
304 stainless steel
Operate mode
hydraumatic-electric integrated
Power supply
110V/220V/(control voltage 24V)
Column diameter
168mm, 219mm,  273mm, 324mm etc
travel height
600mm, 800mm, 1000mm
Waterproof degree
IP68
Surface treatment
drawing process
Operating Temperature
-30℃ to +70℃
Control model
push button/remote control standard, loop detector /card reader optional
Running speed
2-4S ( ascending )
Safety signs
reflective tape/LED warning light zipper/loop detector system traffic lights
Cylinder
stainless steel/plastic coating for steel tube Traffic Road Bollard,automatic bollards,cast iron road stake bollards
Optional Function
Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
Optional Color
Brushed titanium gold, champagne, rose gold, Brown, red, purple,sapphire blue, gold, dark blue paint, chocolate,stainless steel,Chinese red paint





SS316 Hydraulic Retractable Rising Bollards IP68 For Safety Area 0

SS316 Hydraulic Retractable Rising Bollards IP68 For Safety Area 1





SINOMATIC road bollard advantages



High security anti-ramming automatic barriers features:


Different thickness of steel is available (default 6 mm)


The different color is available


Customized size is available


Steady and safe due to the OMRON PLC control system


Speedy rising time and durable quality with hydraulic pressure

Housing with durable and stainless Galvanization


Optimization of the frame structure, high anti-impact capability, high loading capability


High security and anti-collision ability


With a reflective band and a low energy consumption LED light at night



Automatic bollard Feature



High security and anti-collision ability

Pneumatic air pump in control cabinet could procide large power safely for a long time.

Electronic control, automatic rise/fall

High system independence



Automatic bollard Reflective band

Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.



Automatic bollard Materials Available

304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.Automatic bollard Flange

Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.



Automatic bollard​ Top cap

Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.





rising hydraulic bollards Control Center
Control Center
PLC (With display)
Housing
Spray paint (Outdoor use)
Seft-testing program
Yes
Trial period setting
Yes
Warning light Auto ON/OFF
Yes
Emergency rising/dropping
Yes
Emergency dropping once power off
Yes
Remote control
100m
LED remote control
30m, 2.4GHz remote control
Wire switch
Optional
