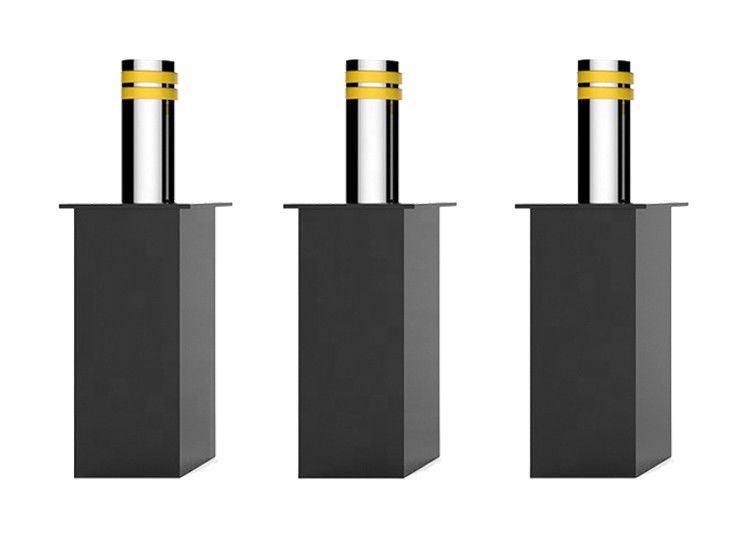

SS304 IP68 PLC Controlled Automatic Hydraulic Rising Security Bollard with LED Light
  • SS304 IP68 PLC Controlled Automatic Hydraulic Rising Security Bollard with LED Light
  • SS304 IP68 PLC Controlled Automatic Hydraulic Rising Security Bollard with LED Light
  • SS304 IP68 PLC Controlled Automatic Hydraulic Rising Security Bollard with LED Light
SS304 IP68 PLC Controlled Automatic Hydraulic Rising Security Bollard with LED Light

SS304 IP68 PLC Controlled Automatic Hydraulic Rising Security Bollard with LED Light

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Bollard Height:
600 To 1000mm
SS304 Thickness:
6/8/10/12/15/20
Power Supply:
AC100-240V
Bollard Surface Treatment:
8k Mirror Surface
Bollard Diameter:
219/273/324mm
Bollard Thickness:
6 To 20 Mm
Highlight:

Led Lighted Pneumatic Rising Bollard

,

Hydraulic Pneumatic Rising Bollard

,

SS304 Hydraulic Rising Bollard

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description
PLC LED Lighted Hydraulic Pneumatic Rising Bollard SS304 IP68
304 Stainless Steel Full-Automatic LED Lighted Security Hydraulic Pneumatic Rising Bollard
Product Overview
This hydraulic drive security bollard provides mandatory vehicle interception with exceptional load-bearing and anti-collision capabilities. Featuring hydraulic transmission technology, it delivers stable, fast operation with low noise levels, high traffic capacity, and reliable performance for secure access control.
Applications
Ideal for highway toll stations, checkpoints, prisons, airports, government facilities, embassies, military bases, customs, banks, industrial sites, ports, warehouses, parking areas, and all locations requiring vehicle traffic restriction.
Technical Specifications
Product Name Automatic Hydraulic Road Bollard
Material 304 Stainless Steel
Operate Mode Hydraulic-Electric Integrated
Power Supply 110V/220V (Control Voltage 24V)
Column Diameter 168mm, 219mm, 273mm, 324mm etc
Travel Height 600mm, 800mm, 1000mm
Waterproof Degree IP68
Surface Treatment Drawing Process
Operating Temperature -30℃ to +70℃
Control Model Push Button/Remote Control Standard, Loop Detector/Card Reader Optional
Running Speed 2-4S (Ascending)
Safety Features Reflective Tape/LED Warning Light Zipper/Loop Detector System/Traffic Lights
Cylinder Stainless Steel/Plastic Coating for Steel Tube
Optional Functions Traffic Lamp/Solar Light/Hand Pump/Safety Photocell, Reflective Tape/Sticker, Buzzer
Optional Colors Brushed Titanium Gold, Champagne, Rose Gold, Brown, Red, Purple, Sapphire Blue, Gold, Dark Blue Paint, Chocolate, Stainless Steel, Chinese Red Paint
SINOMATIC Road Bollard Advantages
  • Multiple steel thickness options available (default 6mm)
  • Various color customization options
  • Custom sizing available to meet specific requirements
  • Stable and secure operation with OMRON PLC control system
  • Fast rising time and durable construction with hydraulic pressure
  • Durable stainless galvanization housing
  • Optimized frame structure with high anti-impact and loading capability
  • Enhanced security and anti-collision performance
  • Reflective band and low energy consumption LED lighting for nighttime visibility
Control Center Features
Control Center PLC (With Display)
Housing Spray Paint (Outdoor Use)
Self-Testing Program Yes
Trial Period Setting Yes
Warning Light Auto ON/OFF Yes
Emergency Rising/Dropping Yes
Emergency Dropping (Power Off) Yes
Remote Control Range 100m
LED Remote Control 30m, 2.4GHz Remote Control
Wire Switch Optional
Additional Features
Reflective Band: Glossy aveolate reflective band available in various colors, providing clear nighttime visibility with minimal light.
Available Materials: 304 Stainless Steel, 316 Stainless Steel, and Carbon Steel with Electrophoresis Spray Paint.
Flange Design: Anti-skid flange with unique pattern design, compatible with various road surfaces and built-in PA orientation.
Top Cap: Simple integration design compatible with all architectural styles, featuring excellent workmanship resistant to close attacks.
Packaging & Delivery
  • Packaging: Standard Export Packing or customized per customer requirements
  • Delivery: Express, Air, or Sea transportation based on customer needs
  • International customers are responsible for all duties and taxes - please consult local authorities for specific amounts
