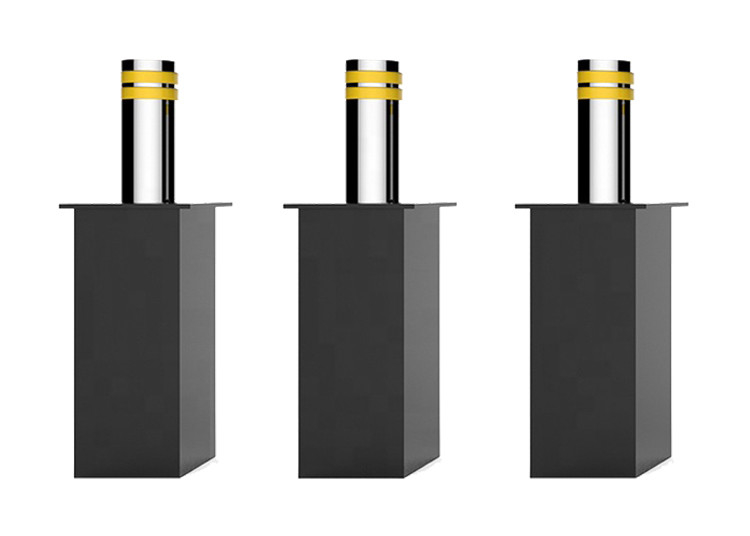

PLC Led Lighted Hydraulic Pneumatic Rising Bollard SS304 IP68

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-HRB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability 1000 pcs a month
Product Details
Bollard Height 600 To 1000mm SS304 Thickness 6/8/10/12/15/20
Power Supply AC100-240V Bollard Surface Treatment 8k Mirror Surface
Bollard Diameter 219/273/324mm Bollard Thickness 6 To 20 Mm
High Light

Led Lighted Pneumatic Rising Bollard


Hydraulic Pneumatic Rising Bollard


SS304 Hydraulic Rising Bollard

Leave a Message
Product Description

304 Stainless Steel Full-Automatic Led Lighted Security Hydraulic Pneumatic Rising Bollard


Product description


The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision

capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity,

safe and reliable, strong carrying capacity and stable lifting.


Product application


The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies,

military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle

traffic is restricted.



Product specifications


Product Name
Automatic hydraulic road bollard
304 stainless steel
Operate mode
hydraumatic-electric integrated
Power supply
110V/220V/(control voltage 24V)
Column diameter
168mm, 219mm,  273mm, 324mm etc
travel height
600mm, 800mm, 1000mm
Waterproof degree
Surface treatment
drawing process
Operating Temperature
-30℃ to +70℃
Control model
push button/remote control standard, loop detector /card reader optional
Running speed
2-4S ( ascending )
Safety signs
reflective tape/LED warning light zipper/loop detector system traffic lights
stainless steel/plastic coating for steel tube Traffic Road Bollard,automatic bollards,cast iron road stake bollards
Optional Function
Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
Optional Color
Brushed titanium gold, champagne, rose gold, Brown, red, purple,sapphire blue, gold, dark blue paint, chocolate,stainless steel,Chinese red paint



SINOMATIC road bollard advantages


High security anti-ramming automatic barriers features:

Different thickness of steel is available (default 6 mm)

The different color is available

Customized size is available

Steady and safe due to the OMRON PLC control system

Speedy rising time and durable quality with hydraulic pressure

Housing with durable and stainless Galvanization

Optimization of the frame structure, high anti-impact capability, high loading capability

High security and anti-collision ability

With a reflective band and a low energy consumption LED light at night


Automatic bollard Feature


High security and anti-collision ability

Pneumatic air pump in control cabinet could procide large power safely for a long time.

Electronic control, automatic rise/fall

High system independence


Automatic bollard Reflective band

Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.


Automatic bollard Materials Available

304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.Automatic bollard Flange

Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.


Automatic bollard​ Top cap

Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.



rising hydraulic bollards Control Center
Control Center
PLC (With display)
Spray paint (Outdoor use)
Seft-testing program
Trial period setting
Warning light Auto ON/OFF
Emergency rising/dropping
Emergency dropping once power off
Remote control
LED remote control
30m, 2.4GHz remote control
Wire switch
