Plastic Coating 5 Tons Automatic Parking Lock 12V7AH Battery
  • Plastic Coating 5 Tons Automatic Parking Lock 12V7AH Battery
  • Plastic Coating 5 Tons Automatic Parking Lock 12V7AH Battery
  • Plastic Coating 5 Tons Automatic Parking Lock 12V7AH Battery

Plastic Coating 5 Tons Automatic Parking Lock 12V7AH Battery

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BW-5
Product Details
Warranty:
12 Months
Customize:
Support
Power Voltage:
DC 12V7AH
Processing:
Painting
Bearing:
Max. 5 Tons
Lead Acid Battery:
About 3 Month A Charge
High Light:

5 Tons Automatic Parking Lock

,

Plastic Coating Automatic Parking Lock

,

12V7AH Remote Control Parking Lock

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability
5,000pcs per month
Product Description

Max 5 Tons Bearing Capacity Yellow Color Automatic Parking Lock With Battery



PRODUCT SPECIFICATION



Weight resistance ≤5 ton
Dimension 520*480*530mm
Up height 530mm
Down height 90mm
Outdoor Protection IP67
Finish Spraying plastic coating
Material 3.00mm steel rolling
Up and down time 5s -6s
Remote distance ≤50m
Lead Acid Battery About 3 months on a charge
Input voltage DC 12V or AC110/220V
Working power DC12V 7AH
Static Current(mA) ≤0.85Ah
Environment Temperature -40~+70 °c
Package dimension 620*510*110mm (1 set in a carton)
Weight G.W (13KG) / N.W (12.5KG)
Humidity 10%-95%

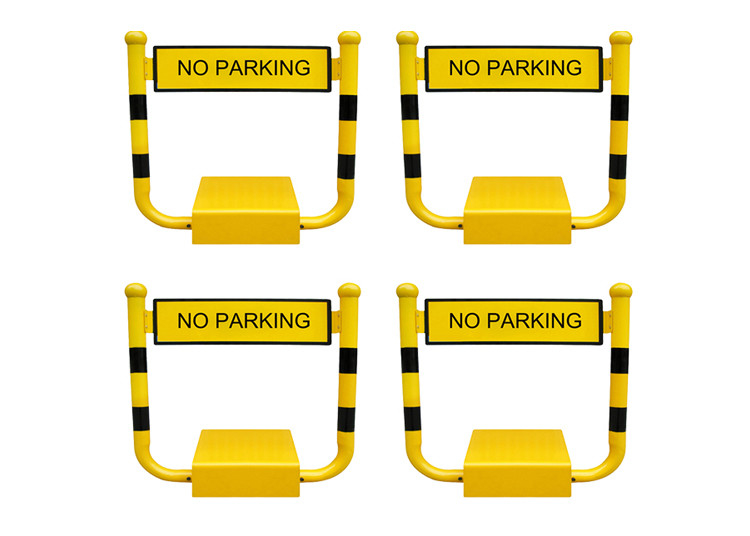

PRODUCT PHOTO

Plastic Coating 5 Tons Automatic Parking Lock 12V7AH Battery 0

PRODUCT MAIN FEATURES AND FUNCTIONS


1. Auto-reposition
In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm sound,

and once the vehicle left the sway arm will automatically raise up till vertical. With the remoter, you can even hold

position of sway arm when it was hit by a vehicle.

2. 90 Degree Anti-collision
In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm sound,

this will protect both vehicle and the parking lock.

3. Anti-disconnecting for Power Safety
The power connection is anti-disconnecting design in case the use misplace the battery causing short circuit

4. Alarm Against a Hit
In case a vehicle hit it, the parking lock will alarm loudly to remind the driver.

5. Noise-free
The transmission design on motor makes almost zero noise, which is good for battery and motor longevity and less friction,

also goods for quiet environment.

6. Alarm Against a Low Battery
If the battery is low, the parking lock will alarm to remind the owner to recharge the battery.



7. Heavy Duty and Durable

The housing adopts high quality steel rolling which can bear Max. 5 ton weight. With spray plastic coating, the housing is
waterproof, rustproof and dustp-roof enough to last about 5 years in hard weather. The sway arm made of steel rolling
won`t deform even it is crushed by a vehicle.

8. Well Performance in Water and Dust
Thank to the IP67 protection grade, the parking lock is water-proof and dust-proof which make it suitable for various
parking environments. It is even working fine in the water for couples of hours.

9. Burgla-proof for safety
The expansion bolts are placed inside the housing of parking lock, can`t be removed without a key of the housing.
In case someone tries to remove it without permission, the parking lock will alarm loudly to remind its owner and also scares the thief.

10. Easy to Use

Touch the remoter to lower your automatic parking lock to lay flat, then drive your vehicle into parking space; When leaving,

touch the remote, and your parking lock will automatically rise up to prevent anyone else from using your parking space.


11. Easy to Install
Fix parking lock onto the ground by expansion bolts, that is all!

12. Rechargeable Battery with Long Continuous Use
Your parking lock is powered by a rechargeable battery. After being recharged, it will lasts for about 1000 uses,
or about 3 months continuous use. Your parking lock comes with a recharging power pack.
