170KHz 4 Increments Adjustable Vehicle Loop Detector PD132 with ABS Plastic Housing
  • 170KHz 4 Increments Adjustable Vehicle Loop Detector PD132 with ABS Plastic Housing
  • 170KHz 4 Increments Adjustable Vehicle Loop Detector PD132 with ABS Plastic Housing
  • 170KHz 4 Increments Adjustable Vehicle Loop Detector PD132 with ABS Plastic Housing
170KHz 4 Increments Adjustable Vehicle Loop Detector PD132 with ABS Plastic Housing

170KHz 4 Increments Adjustable Vehicle Loop Detector PD132 with ABS Plastic Housing

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number PD-132
Product Details
Color:
Black
Output Relays:
240V/5A
Material:
ABS Plastic
Voltage Available:
220V, 110V, 24V, 12V
Product Size:
78x40x108 Mm (L X W X H)
Operating Temperature:
-20°C To +65°C
Highlight:

4 Increments Adjustable Vehicle Detector

,

170KHz Adjustable Vehicle Detector

,

ABS Single Channel Loop Detector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
2-5 working days after payment received
Payment Terms
T/T, L/C, D/A, D/P, Western Union,
Supply Ability
3,0000pcs per month
Product Description

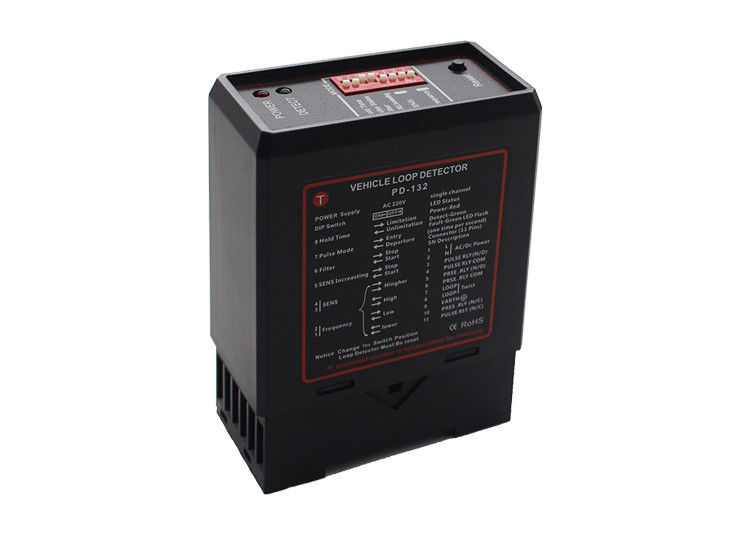

170KHz 4 Increments Adjustable Vehicle Detector ABS PD132
Multiple Supply Voltage Sensitivity Adjustable Vehicle Detector
The PD132 vehicle loop detector must be installed in a convenient weatherproof location as close to the detection loop as possible, maintaining proper distance from heat sources and other equipment.
Technical Specifications
  • Supply voltage: 230V AC, 115V AC, 24V DC/AC, 12V DC/AC (see detector label)
  • Voltage tolerance AC: +10% / -15%
  • Voltage tolerance DC: ±15%
  • Power Consumption: 4.5VA Output relays: 240V/5A
  • Operating temperature: -20°C to +65°C
  • Storage temperature: -40°C to +85°C
  • Frequency range: 20 kHz to 170 kHz
  • Reaction time: 10ms Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes
  • Sensitivity: Adjustable in 4 increments
  • Loop inductance: Total loop plus connection wiring: 50μH to 1000μH (Ideal: 100μH to 300μH)
  • Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter
  • Housing dimensions: 78x40x108 mm (L x W x H)
Key Features
  • Reset Switch: Enables manual reset during commissioning and testing for loop re-tuning
  • Selectable Pulse Time: Configurable pulse relay duration of 1 Second or 0.5 Seconds
  • Pulse Relay Selection: Configurable to energize on vehicle detection or departure
  • Sensitivity Boost: Maximum sensitivity setting for high-bed vehicle detection
  • Switch Selectable Sensitivity: 4 sensitivity settings for flexible configuration
  • Switch Selectable Frequency: 4 frequency settings to prevent cross-talk between adjacent loops
  • Filter Option: Delay between vehicle detection and relay switching to prevent false detection
  • Permanent Presence Option: Maintains vehicle detection during extended parking periods
Technical Parameters Summary
Power supply 230V AC, 115V AC, 24V DC/AC, 12V DC/AC
Frequency range 20KHz ~ 170KHz
Sensitivity Adjustable in 4 increments
Reaction time 10ms
Channel Single
Operating temperature -40ºC ~ +80ºC
Relative humidity <90%
Environmental compensation Automatic drift compensation
Output mode Electric relay
Loop inductance Ideal: 100μH to 300μH (Connection included)
Housing dimensions 78x40x108 mm (L x W x H)
170KHz 4 Increments Adjustable Vehicle Loop Detector PD132 with ABS Plastic Housing 0
Operation and Status Indication
During tuning, both green Channel LED and red Power LED illuminate for approximately 2 seconds. The green LED indicates vehicle detection and flashes for loop faults. The red Power LED remains on when powered.
Configuration Options
Frequency adjustment prevents interference between adjacent loops. Four sensitivity settings allow selective inductance change detection. Automatic sensitivity boost provides maximum detection capability when enabled.
Filter Mode
Activated to eliminate environmental interference, delaying reaction time and reducing sensitivity. Typically disabled for normal operation.
Important: If detector malfunctions, first check loop and wiring, then adjust frequency or sensitivity settings, and finally enable filter mode if necessary.
Output Relay Configuration
DIP7 switch controls relay behavior: OFF energizes both relays during detection; ON provides sequenced relay activation with timing delays.
Presence Time Settings
Configurable as permanent presence (continuous environmental compensation) or limited presence (10 minutes maximum).
Reset Function
Automatic tuning occurs on power application. Manual reset via RESET switch initiates tuning cycle after configuration changes or relocation.
