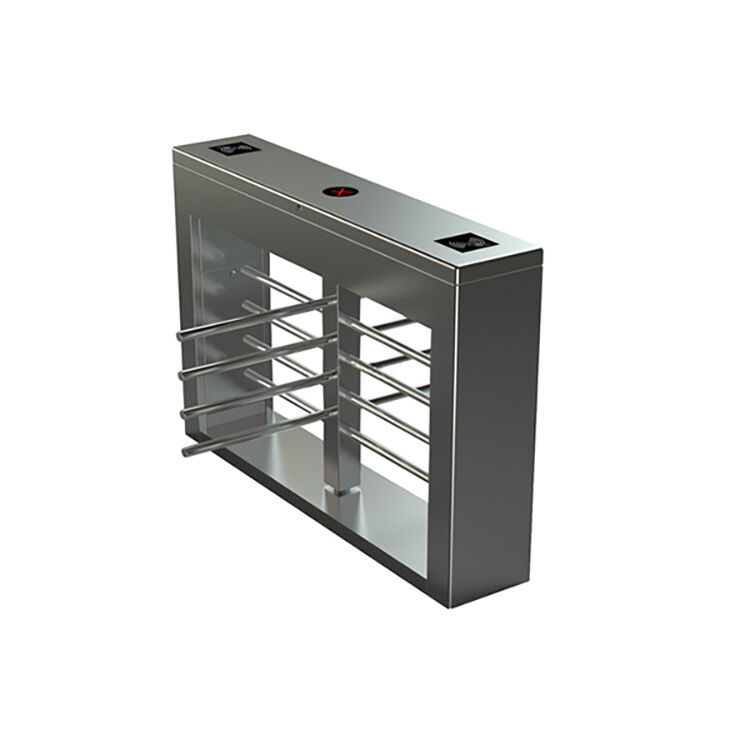

SS304 Infrared Sensor Relay Switch Signal Security Waist Height Turnstile Gate
  • SS304 Infrared Sensor Relay Switch Signal Security Waist Height Turnstile Gate
  • SS304 Infrared Sensor Relay Switch Signal Security Waist Height Turnstile Gate
  • SS304 Infrared Sensor Relay Switch Signal Security Waist Height Turnstile Gate
SS304 Infrared Sensor Relay Switch Signal Security Waist Height Turnstile Gate

SS304 Infrared Sensor Relay Switch Signal Security Waist Height Turnstile Gate

Place of Origin Shenzhen, China
Brand Name Sinomatic
Certification CE
Model Number SN-HH01
Product Details
Power Supply:
100V~240V,50/60Hz
Thickness Of Housing:
At Least 1.2mm
Arm Lenght:
450mm
Material:
SS304
Control Circuit:
24V
Control Signal:
Relay Switch Signal
Highlight:

Relay Switch Security Turnstile Gate

,

Infrared Sensor Security Turnstile Gate

,

SS304 Access Control Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Crate
Delivery Time
7~10 days
Payment Terms
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability
1000 pcs/month
Product Description
Infrared Sensor Relay Switch Security Turnstile Gate SS304
304 Stainless Steel Infrared Sensor For Access Control Relay Switch Signal Security Turnstile Gate
About Waist Height Turnstile
This waist-height turnstile features unique mechanical transmission, microprocessors, and various card-reading machines perfectly integrated together. By equipping different reading and writing machines, it enables intelligent pedestrian control and management.
Constructed with tailored stainless steel, these waist-height turnstiles offer elegant appearance, durability, and anti-oxidation properties. With built-in standard electrical interfaces, they easily integrate with magnetic cards, barcodes, ID and IC cards. The system provides civilized, well-organized passage management.
For fire emergency situations, the system includes a unique fire-control interface that unlocks the mechanism, allowing free passage in both directions.
Waist Height Turnstile Main Features and Functions
  • Smooth system operation with long-life performance, high reliability, and fast response
  • Automatic regulated hydraulic buffer device for noise-free and impact-free operation
  • Self-test function with automatic system restoration upon power-on
  • Dual-bearing device maintains gate balance under external force
  • Selectable single directional or bi-directional operation
  • LED indicator support
  • Automatic reset function with configurable passing time (01-60 seconds)
  • Free passage when powered off, complying with fire safety requirements
  • Automatic locking of rotary wings when no IR signal is received
  • Multi-passage configurations for diverse application requirements
  • Programmable signal control for pass time, pass speed, and other parameters
  • RS232/RS485 interfaces for various communication protocols or wireless connection
  • Compatible with IC/ID cards for flexible coupling
  • Long-distance management through computer systems
  • Customization options: LED display, voice guidance, warning lamps, indicator lights, audible and visible alarms
SS304 Infrared Sensor Relay Switch Signal Security Waist Height Turnstile Gate 0
Waist Height Turnstile Specifications
Product Name Waist Height Turnstile
Place of Origin Shenzhen, Guangdong, China
Brand Name SINOMATIC
Material SS304
MCBF 5 million cycles
Power Supply AC100V~240V
Pass Direction Bi-directional
Pass Speed 30 persons/min
Size 1400*300*1000mm
Color Silver
Card-reading Window Reserved
Working Environment Indoor/Outdoor
Working Temperature -20℃~60℃
Working Humidity 5%~95%
Technical Parameters
Input Voltage 100V~240V
Driving Voltage 24V
Equipment Power 30W
Response Time 0.2S
Passing Speed 30 people / min
Communication Distance less than 1200m
Open Signal Input dry contact
Switching Door Time Less than 1S
