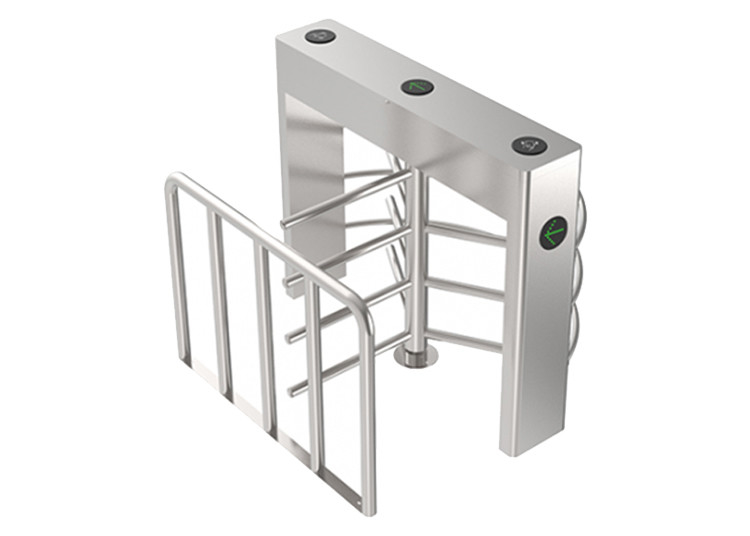

SS304 Automatic Full Height Turnstile Barrier For Public Security
  • SS304 Automatic Full Height Turnstile Barrier For Public Security
  • SS304 Automatic Full Height Turnstile Barrier For Public Security

SS304 Automatic Full Height Turnstile Barrier For Public Security

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HHT01
Product Details
Direction:
Single Or Double
Power Supply:
100V~240V,50/60Hz
Application:
Indoor/outdoor
Thickness Of Housing:
At Least 1.2mm
Arm Lenght:
450mm
Material:
SS304
High Light:

Automatic Full Height Turnstile Barrier

,

SS304 Full Height Turnstile Barrier

,

Public Security Double Pedestrian Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7working days after payment received for sample
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Automatic Full Height Turnstile Barrier Double Pedestrian Gate Door For Public Security



About waist height turnstile

This waist height turnstile gate is compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304/316 (optional) stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit.



Waist height turnstile application

It can be widely used in some high security places, such as prison, stadium, parking system area, hotel, hospital, airport, and so on.



Waist height turnstile  specifications



Product name
Waist Height Turnstile
Place of Origin
Shenzhen, Guangdong, China
Brand name
SINOMATIC
Model Number
SN-HHT01
Material
SS304
MCBF
5 million cycles
Power supply
AC100V~240V
Pass direction
Bi-directional
Pass speed
30 persons/min
Size
1400*300*1000mm
Color
Silver
Card-reading window
reserved
Working environment
Indoor/Outdoor
Working Temperature
-20℃~60℃
Working Humidity
5%~95%







Waist height turnstile main features and functions



1.The whole system runs smoothly, long-life performance, high operation dependability and fast response.


2.The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.


3.Self-test function, when power on, system restoration automatic.


4.Dual-bearing device, keeping the gate in balance when there is external force.


5.Single directional or Bi-directional is selectable.


6.LED indicator supported


7.Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically. Limit passing time (01-60 seconds), passing time can be set on Full Height Turnstile circuit board.


8.When power off, turnstile lane will be free to pass, complying with fire safety requirements.



Basic parameters:

Dimensions L1400 mm X W300mm X H1000 mm
Cabinet material 38 round tube, 1.2mm SS304
Channel width ≤ 500mm
Ambient temperature -20 degrees to 60 degrees
Working environment indoor and outdoor



Technical Parameters:

Input voltage 100V~240V
Driving voltage 24V
Equipment power 30W
Response time 0.2S
Passing speed 30 people / min
Communication distance less than 1200m
Open signal input dry contact
Switching door time Less than 1S
