6m Boom AC Motor Parking Gate Barrier For Toll Systems

  • 6m Boom AC Motor Parking Gate Barrier For Toll Systems
  • 6m Boom AC Motor Parking Gate Barrier For Toll Systems
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG101
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness Of Material 2.0mm Surface Finish Powder Coating
Boom Length 3m To 6m(default) Boom Type Straight/ Folding/ Fencing
Voltage 220V/110V Application Parking Lot
High Light

AC Motor Parking Gate Barrier

,

6m Boom Parking Gate Barrier

,

Toll Systems Traffic Barrier Gate
Leave a Message
Product Description

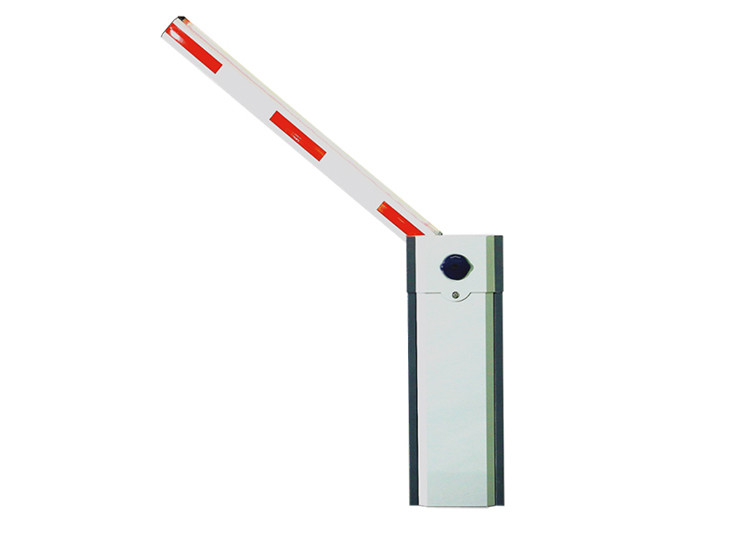

Electric Security Toll Systems AC Motor Automatic Parking Gate Barrier



BG-101 Electric Security Traffic Barrier Gate Durable Selling Points:



Accurate and safe Operation
Reverse on Obstacle detection
Anodized aluminum boom
Slow down speed adjustable
Compact control unit
Versatile configuration options
Silent and Smooth Operations
Automatic Fault Detection
Rapid openings and intensive use
Break Away Arm mechanism available



Electric Security Traffic Barrier Gate Durable Features:

  • Intelligent.Auto-detect opening and a closing position in high accuracy by both mechanical and electrical limit detector. Combination of special inner working design and smart motor ensures swift and smooth arm movement in falling and lifting to reduce bouching.
  • Durable: Extension spring is more durable than compressed spring in the heavy-duty site where barrier gate will open and close continuously.AC motor can support long-lasting working of barrier gates. Cooling Fan processor is for decreasing working temperature.
  • Safe: Arm will be reverse back when it meets any obstacle in its movement. Optional rubber arm can avoid any damage when arm touches anything. Additional photobeam further ensures safety.
  • User-friendly: Interfaces for photocell, loop detector, arm light, etc are reserved. No need to change spring if the arm is changed(Eg.Arm is changed from 3m to 6m, the same spring can support.)

6m Boom AC Motor Parking Gate Barrier For Toll Systems 0

Product Application



The SN-BG10X serial barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.



Production Series



Model No. Open/Close Speed Max Boom Length Boom Type
BG101-16 6 seconds 6m straight boom
BG101-13 3 seconds 4.5m straight boom
BG101-11 1 seconds 3m straight boom
BG101-26 6 seconds 5m 90 degree, Articulated boom
BG101-23 3 seconds 3m 90 degree, Articulated boom
BG101-36 6 seconds 5m 180 degree, Articulated boom
BG101-33 3 seconds 3m 180 degree, Articulated boom
BG101-46 6 seconds 4.5m Two-level, fence boom
BG101-56 6 seconds 4m Three-level, fence boom



TECHNICIAL SPECIFICATION



RS485 Boom Barrier Gate For Parking Lot System
Model SN-BG101
Size 329*301*954 mm
Voltage AC 220V/110V±10%, 50/60HZ
Rated Power 120W
Operation time 1s, 1.8s, 3s,6s
Working Temperature -40℃~+75℃
Material

Cold roll plate, 2.0mm thickness sheet
Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance
 Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Delivery Courier/ Air/Sea, depends on order quantity





Packaging

Size 102 (L) * 37(W) * 47 (D)
Gross Weight 60 KG
Packaging Details The normal package is paper carton (Size: 102*37*47 cm). Wooden box or pallet are available (need to charge)



Our Service

Pyment Term Leading Time Minimum Order Supply Ability Package
T/T; West Union 5-7 working days 1 Unit 1,000 Unit/ Month Carton or Wooden Box



FAQ:

Q: What's the monthly production capacity for barrier gate?
A: 1000 units.

Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?
A: In general, most of 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WE recommends using the remote control within 30 meters or 50 meters.
