SS316 Bidirectional Half Height Tripod Turnstile IP54
  • SS316 Bidirectional Half Height Tripod Turnstile IP54
  • SS316 Bidirectional Half Height Tripod Turnstile IP54

SS316 Bidirectional Half Height Tripod Turnstile IP54

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-TT03
Product Details
Frame Size:
IP Rate:
Open Signal:
Dry Contact
Control Voltage:
High Light:

SS304 Half Height Tripod Turnstile


Bidirectional Half Height Tripod Turnstile


IP54 Access Control Coin Acceptor

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1,000pcs per month
Product Description

Access Control Coin Acceptor Cost Effective 304 Stainless Steel Half Height Tripod Turnstile gate

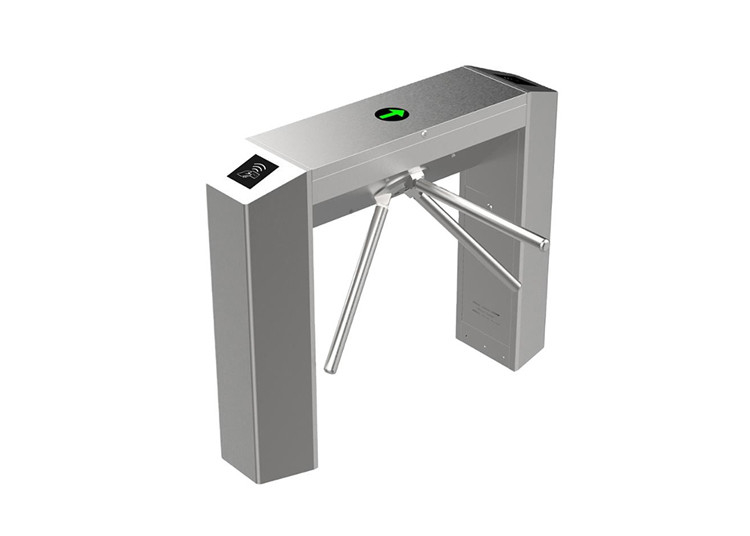

SS316 Bidirectional Half Height Tripod Turnstile IP54 0

Model SN-TT02
Size 1200*280*980mm
Material SS 316
Pass Width 550mm
Passage direction Single directional/Bi-directional
Pass rate 30-35 persons/minute
Operating time 0.2 seconds
Power input AC100-240V,50/60Hz
Working voltage 24V
Working environment Indoor
Communication interface Dry contact




A turnstile, also called a barrier gate or turnstile, is a form of gate which allows one person to pass at a time.

It can also be made so as to enforce one-way traffic of people, and in addition, it can restrict passage only to

people who insert a coin, a ticket, a pass, or similar. Thus a turnstile can be used in the case of paid access

(sometimes called a faregate or ticket barrier when used for this purpose), for example to access public transport,

a pay toilet, or to restrict access to authorized people, for example in the lobby of an office building.



Packaging Details

Commodity: Tripod Turnstile
Package Type: Export Wooden Box
Product Dimension: L1200 * W280 * H990mm
Packing Dimension: L1300 * W400 * H1160mm
Unit Weight: 60kg
Gross Weight: 80kg
CBM: 0.60CBM/pcs
Port: Shenzhen
Lead Time : 3-7days



1200 x 280 x 980mm (Size Customization Acceptable)


SS316 Bidirectional Half Height Tripod Turnstile IP54 1




1.Auto replacement function, reposition after person pass by

2.Anti tail function auto-lock once turn 120° .

3.Arms auto drop when power off , insure unblocked when accident

4.Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work

5.Diverse control mode optional, changeable due to varying, convenient for your manage

6.Auto alert error function, comfort for user maintain and operate

7.Manual button or remote control ,Bio-directional passage

8.Open signal with memory or with out set function

9.Red and green light to show pass or stop, leisure to exit and entrance



SS316 Bidirectional Half Height Tripod Turnstile IP54 2


Safety and User-Orientated Design


• Drop arm design for emergency purpose

• There are no exposed screws, it is safer for the user.

• Smooth operation designed for mas transit application

• The pictogram on the device indicating access permission and direction of movement

• Special designed case shape, it is user-friendly for passenger to punch card or finger.

• Anti-tailgate


Easy Integration


• Flexible reader installation plate. Customer can easily integrate third party reader.

• Standard electrical interface for third party device.

• Using compact mechanism, the turnstile has more space inside for integration

• We provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just and plug in and do the setting. Save the cost of installation.

• The two columns at the ends provide more space for system integration
