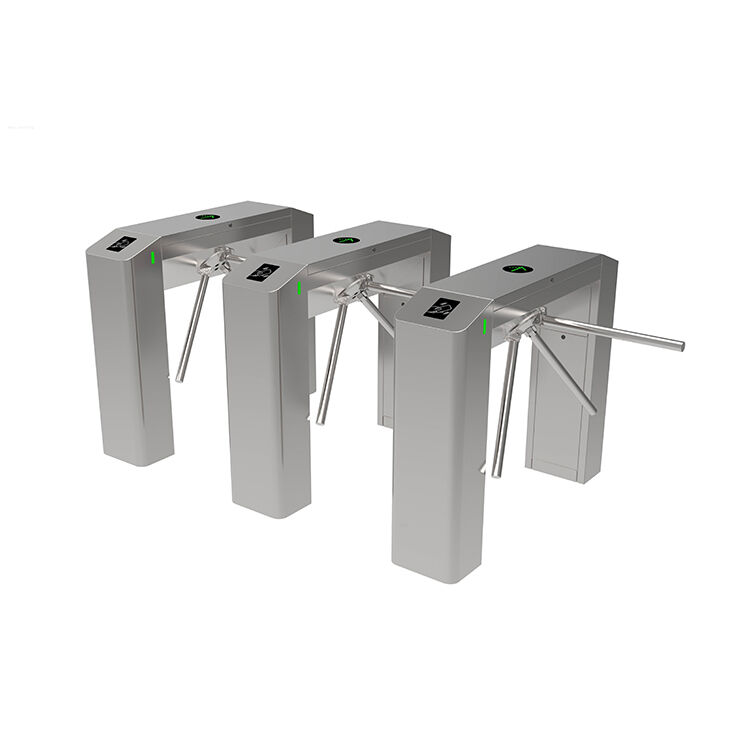

SS316 Bi-directional IP54 Tripod Turnstile Gate for Access Control
  • SS316 Bi-directional IP54 Tripod Turnstile Gate for Access Control
  • SS316 Bi-directional IP54 Tripod Turnstile Gate for Access Control
  • SS316 Bi-directional IP54 Tripod Turnstile Gate for Access Control
SS316 Bi-directional IP54 Tripod Turnstile Gate for Access Control

SS316 Bi-directional IP54 Tripod Turnstile Gate for Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT02
Product Details
Frame Size:
1200*280*980mm
Material:
SS304/SS316
Application:
Indoor/outdoor
IP Rate:
54
Open Signal:
Dry Contact
Control Voltage:
24V
Highlight:

SS304 Half Height Tripod Turnstile

,

Bidirectional Half Height Tripod Turnstile

,

IP54 Access Control Coin Acceptor

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
1,000pcs per month
Product Description
SS316 Bidirectional Half Height Tripod Turnstile IP54
Access Control Coin Acceptor Cost Effective 304 Stainless Steel Half Height Tripod Turnstile Gate
SS316 Bi-directional IP54 Tripod Turnstile Gate for Access Control 0
Model SN-TT02
Size 1200*280*980mm
Material SS 316
Pass Width 550mm
Passage Direction Single directional/Bi-directional
Pass Rate 30-35 persons/minute
Operating Time 0.2 seconds
Power Input AC100-240V,50/60Hz
Working Voltage 24V
Working Environment Indoor
Communication Interface Dry contact
Product Introduction
A turnstile, also called a barrier gate, is a specialized access control device that allows only one person to pass at a time. It can enforce one-way traffic flow and restrict passage to authorized individuals using coins, tickets, passes, or similar credentials. This makes turnstiles ideal for paid access applications (such as public transport faregates or ticket barriers) and for securing authorized access to facilities like office building lobbies.
Packaging Details
Commodity: Tripod Turnstile
Package Type: Export Wooden Box
Product Dimension: L1200 * W280 * H990mm
Packing Dimension: L1300 * W400 * H1160mm
Unit Weight: 60kg
Gross Weight: 80kg
CBM: 0.60CBM/pcs
Port: Shenzhen
Lead Time: 3-7 days
Product Dimension
1200 x 280 x 980mm (Size Customization Acceptable)
SS316 Bi-directional IP54 Tripod Turnstile Gate for Access Control 1
Product Functions
  • Auto replacement function - repositions after person passes through
  • Anti-tailgate function - auto-locks once turned 120°
  • Arms automatically drop when power is off - ensures unblocked passage during emergencies
  • Standard electronic interface for remote control via internet, compatible with various card readers
  • Diverse control modes - adaptable to varying requirements for convenient management
  • Auto error alert function - facilitates user maintenance and operation
  • Manual button or remote control - supports bi-directional passage
  • Open signal with memory or without set function
  • Red and green indicator lights show pass/stop status - convenient for exit and entrance management
Product Photo
SS316 Bi-directional IP54 Tripod Turnstile Gate for Access Control 2
Safety and User-Orientated Design
  • Drop arm design for emergency purposes
  • No exposed screws for enhanced user safety
  • Smooth operation designed for mass transit applications
  • Pictograms indicating access permission and movement direction
  • User-friendly case shape for convenient card punching or fingerprint scanning
  • Anti-tailgate protection
Easy Integration
  • Flexible reader installation plate for third-party reader integration
  • Standard electrical interface for third-party devices
  • Compact mechanism design with ample internal space for integration
  • Factory integration service with pre-installed boards and peripherals
  • Plug-and-play installation with simple settings
  • End columns provide additional space for system integration
