RS485 Remote Control 6s Boom Barrier Gate 100w With Led Light

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG-S10
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
IP Level 54 Opening Speed 0.6s-6s, 0.9s-6s
Motor Rated Power 100w Input Voltage 220V/110V ±10%, DC24V/12V
Frequency 50Hz/60Hz Remote Distance >30M
High Light

6s Boom Barrier Gate

,

RS485 Boom Barrier Gate

,

100w Remote Control Barrier Gate

Leave a Message
Product Description

0.6~6s Speed Adjustable Remote Control Automatic Boom Barrier Gate With Led Light



Basic Features



1. NO SENSOR&LIMIT SWITCH

Innovative design which doesn’t need any sensor and limit switch.All control by SFMCU drive unit precisely.

Four main parts only, mechanical, motor, control unit, power supply.



2. MAINTENENCE FREE

DC Brushless Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon

brush in a certain time. Galvanized and powder coated parts are anti-rust ensure long termusage.

And no other smaller parts need to be maintain too.



3. 24/7 CONTINUS OPERATION

With a very smooth and quiet motorized drive mechanism, Open

and close very stable, offer maximum reliability at fast speeds, in 7*24 hours non-stop usage.



4. SPEED ADJUSTABLE

Our DC servo barrier gate allows you to set opening and closingspeed according to requirements. Shorter arm,

the faster speed can be set.



5. AUTO-REVERSE FUNCTION

When arm falling and meets obstacles, arm will auto reverse to prevent further damages.



6. MULTIPLE INTERFACES

* Wire Control Signal Input(open&close&stop)

*Infrared Photocells

*Loop Detector

* R&G Light signal (Up&Down Limit signal output optional),

*can use for counting purpose also

*Arm Presence Detection(Optional)

* RS485 Communication(Optional)

* More If Required



7. EASY INTEGRATION

Access Reader or Push button or remote controller can be used totrigger the barrier gate to open via a

simply dry contact signal.After delay timer elapsed, barrier gate will close automatically byitself in a certain

time(optional function)



8. USER FRIENDLY

Motorized arms provide comfortable passage while maintaining ahigh level and high density of car flow

management, such as in toll gate.



9. AUTO-RECOVERY

When power off, barrier arm can be lifted up by manual for a freeexit. When power supply is restored,

Barrier gate will automatically return to close position.



10. Auto Testing Mode

Control board can set auto testing mode

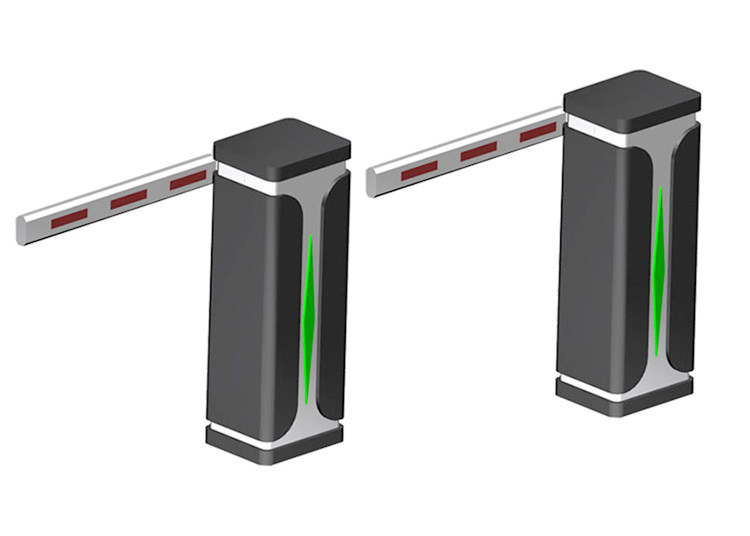

PRODUCTION PHOTO



RS485 Remote Control 6s Boom Barrier Gate 100w With Led Light 0



PRODUCT ADVANTAGES



SINOMATIC S10 DC Brush-less Servo motorized barrier gate, the newly designed, maintenance free with

exclusive SFMCU Micro-drive unit offers 100% more torque, 100% duty, are the fastest toll barriers available

with an opening time as fast as 0.6seconds. Opening speed is adjustable from 0.6s/0.9s to 6s or more.



PRODUCT APPLICATION



This barrier redefines performance in non-stop toll applications. It is the ideal solution for very high frequented

toll stations providing great reliability and sustainability as well as comprehensive functionality. This Barrier use

innovative technology design and manufactured with precision machinery to guarantee satisfaction in quality

andreliability for years to come. The barrier has been lab tested for more than 10 millions opening /closing and

still without any degrade in performance.



PRODUCT SPECIFICATIONS



Max Straight Arm 2.5M 3M 4.5M 6M
Opening time 0.6S 0.9S 1S~3S 2S~5S
Speed range 0.6S ~ 6S
Motor rated power 100W
Duty cycle 100%
Supply voltage 220V/110V ±10%, DC24V/12V
Frequency 50Hz/60Hz
Drive system DC brush-less servo motor
Housing dimensions H1000*L360*W300mm

Weight

(Without boom)

45KGS
Protection rate IP 54
Working temperature -35℃ to 70℃
