SS304 8k Mirror Surface Hydraulic Rising Bollard with 80 Tons Bearing Capacity
  • SS304 8k Mirror Surface Hydraulic Rising Bollard with 80 Tons Bearing Capacity
  • SS304 8k Mirror Surface Hydraulic Rising Bollard with 80 Tons Bearing Capacity
  • SS304 8k Mirror Surface Hydraulic Rising Bollard with 80 Tons Bearing Capacity
SS304 8k Mirror Surface Hydraulic Rising Bollard with 80 Tons Bearing Capacity

SS304 8k Mirror Surface Hydraulic Rising Bollard with 80 Tons Bearing Capacity

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Bearing Capacity:
More Than 80 Tons
Bollard Height:
600 To 1000mm
SS304 Thickness:
6/8/10/12/15/20
Flange Thickness:
10mm
Bollard Surface Treatment:
8k Mirror Surface
Bollard Diameter:
219/273/324mm
Highlight:

SS304 Hydraulic Traffic Road Bollard

,

Waterproof Hydraulic Traffic Road Bollard

,

8k Surface Flexible Rising Bollard

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description
Waterproof SS304 Hydraulic Traffic Road Bollard 8k Surface
304 Stainless Steel 8k Surface Treatment Hydraulic Traffic Road Flexible Rising Bollard designed for schools and high-security applications.
Product Specifications
Product NameAutomatic Hydraulic Rising Bollard
Material304 Stainless Steel
Operate ModeHydraulic-Electric
Power Supply110V/220V (Control Voltage 24V)
Column Diameter168mm, 219mm, 273mm, 324mm etc
Travel Height600mm, 800mm
Waterproof DegreeIP68
Surface TreatmentDrawing Process
Operating Temperature-30℃ to +70℃
Control ModelPush Button/Remote Control Standard, Loop Detector/Card Reader Optional
Running Speed2-4S (Ascending)
Safety SignsReflective Tape/LED Warning Light Zipper/Loop Detector System Traffic Lights
CylinderStainless Steel/Plastic Coating for Steel Tube
Optional FunctionTraffic Lamp/Solar Light/Hand Pump/Safety Photocell, Reflective Tape/Sticker, Buzzer
Optional ColorBrushed Titanium Gold, Champagne, Rose Gold, Brown, Red, Purple, Sapphire Blue, Gold, Dark Blue Paint, Chocolate, Stainless Steel, Chinese Red Paint
Product Application
This newly designed electric-hydraulic operated retractable bollard provides advanced roadblock management solutions. The system offers quick and easy operation, making it suitable for both security and access control applications. Ideal for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and other high-traffic locations.

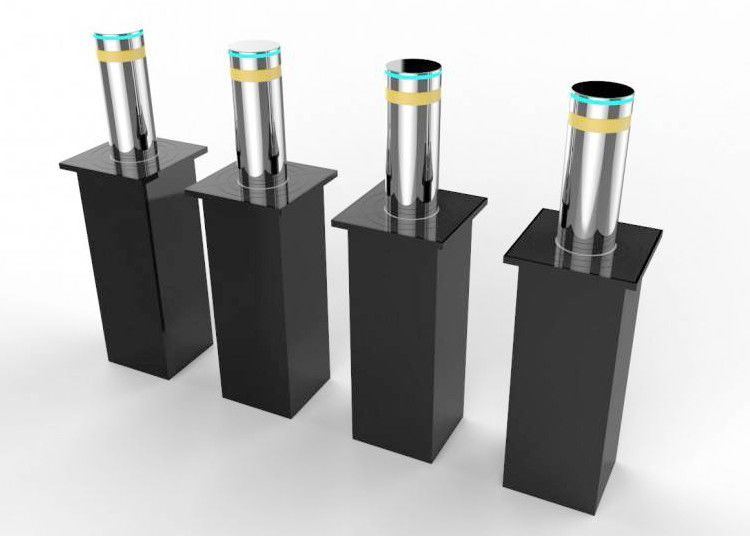

Product Image
SS304 8k Mirror Surface Hydraulic Rising Bollard with 80 Tons Bearing Capacity 0
Our Advantages
High security anti-ramming automatic barriers with advanced features:
  • Different thickness of steel available (default 6mm)
  • Multiple color options available
  • Customized sizes available
  • Steady and safe operation with OMRON PLC control system
  • Fast rising time and durable quality with hydraulic pressure
  • Housing with durable and stainless galvanization
  • Optimized frame structure with high anti-impact and loading capability
  • High security and anti-collision ability
  • Reflective band and low energy consumption LED light for night visibility
Automatic Bollard Features
  • High security and anti-collision ability
  • Pneumatic air pump in control cabinet provides large power safely for extended periods
  • Electronic control with automatic rise/fall functionality
  • High system independence
Reflective Band
Various color options for Glossee aveolate reflective band; requires only weak light to be clearly visible at night.
Materials Available
304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.
Flange Design
Anti-skid flange with unique pattern design. Compatible with various road surface styles. Built-in PA orientation.
Top Cap
Simple integration design compatible with all architectural styles. Excellent workmanship resistant to close attacks.
Control Center Specifications
Control CenterPLC (With Display)
HousingSpray Paint (Outdoor Use)
Self-testing ProgramYes
Trial Period SettingYes
Warning Light Auto ON/OFFYes
Emergency Rising/DroppingYes
Emergency Dropping Once Power OffYes
Remote Control100m
LED Remote Control30m, 2.4GHz Remote Control
Wire SwitchOptional
Packaging & Delivery
  • Packaging: Standard Export Packing or as per customer requirements
  • Delivery: Express/Air/Sea according to customer requirements
  • Taxes & Duties: International customers are responsible for all duties and taxes. Please contact your local authority for questions related to the amount of duties or taxes.
