Plastic Coating DC12V IP66 Automatic Parking Space Lock A3 Steel

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BW-1
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 3-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability 3,000pcs per month
Product Details
Finish Spraying Plastic Coating Remote Distance ≤50m
Up Height 305mm Down Height 85mm
Motor Voltage DC12V Material 2.00mm Steel Rolling
High Light

IP66 Automatic Parking Space Lock

,

DC12V Automatic Parking Space Lock

,

A3 Steel Parking Space Lock

Leave a Message
Product Description

Spraying Plastic Coating Surface Finish Automatic Parking Space Lock



PRODUCT DESCRIPTION



The simple to install and easy to use automatic parking lock with remote control is the right solution to protect your

parking space and guard it from unauthorized use.



Product advantages



1. Body of parking barrier



The cover is made of A3 steel, which can bear the greatest weight 2000KG, if you have special requirements can be

modified to enhance the structure strength.



2. Indicator light



With one indicator light in the front of the lid for show the state of operating:



a. The indicator will show a red light when the barrier is working normally.



b. The indicator will flash continually show the battery voltages is low. Pleases recharge in time in order to extend battery's life.



3. Crash resistance



If the barrier arm is forced down when in the upper position, the beeper will beep. When the barrier arm is released it will return to the upper position and running normally.



4. Object sensing



The power will be cut off automatically when the parking barrier senses that excessive force is being exerted on barrier arm



5. Energy saving



After one minute without use the barrier switches itself to the energy saving mode.



6. Water-proof



Processed for motor, main parts so that they have water-proof feature.



7. Manual expatiation for emergency



If the battery voltage is too low the barrier can be manually operated.



PRODUCT SPECIFICATIONS



Weight resistance ≤5 ton
Dimension 645*160*300mm
Up height 300mm
Down height 85mm
Outdoor Protection IP66
Finish Spraying plastic coating
Material 2.00mm steel rolling
Up and down time 5s -6s
Remote distance ≤50m
Lead Acid Battery About 3 months on a charge
Input voltage DC 12V
Working power DC12V 7AH
Static Current(mA) ≤0.85Ah
Environment Temperature -40~+70 °c
Package dimension 700*180*100mm (1 set in a carton)
Weight G.W (12KG) / N.W (11.5KG)
Humidity 10%-95%



PRODUCT PHOTO

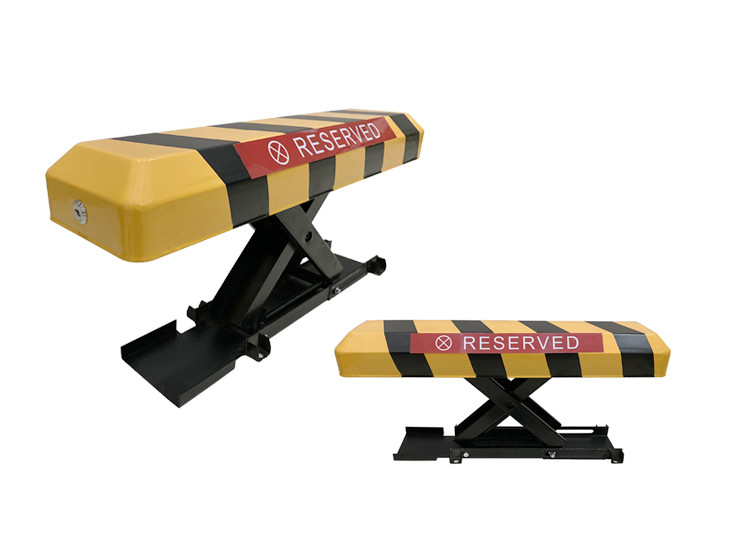

Plastic Coating DC12V IP66 Automatic Parking Space Lock A3 Steel 0





MAIN Functions & Features



1. Easy to Use
Touch the remote controller to lower your automatic parking lock to lay flat, then drive your vehicle into parking space; When leaving, touch the remote, and your parking lock will automatically rise up to prevent anyone else from using your parking space.

2. Easy to Install
Fix parking lock onto the ground by expansion bolts, that is all!

3. Rechargeable Battery with Long Continuous Use
Your parking lock is powered by a rechargeable battery. After being recharged, it will lasts for about 1000 uses, or about 6 months continuous use. Your parking lock comes with a recharging power pack.

4. Heavy Duty and Durable
The housing adopts high quality steel rolling which can bear Max. 5 ton weight. With spray plastic coating, the housing is waterproof, rustproof and dustp-roof enough to last about 5 years in hard weather. The sway arm made of steel rolling won`t deform even it is crushed by a vehicle.

5. Burgla-proof for safety (for some model)
The expansion bolts are placed inside the housing of parking lock, can`t be removed without a key of the housing. In case someone tries to remove it without permission, the parking lock will alarm loudly to remind its owner and also scares the thief.

6. Anti-disconnecting for Power Safety
The power connection is anti-disconnecting design in case the use misplace the battery causing short circuit

7. Alarm Against a Hit
In case a vehicle hit it, the parking lock will alarm loudly to remind the driver.

8. Manual control in case of no power
In case the power is off, just manually control the parking lock in emergency.

9 Alarm Against a Low Battery
If the battery is low, the parking lock will alarm to remind the owner to recharge the battery.
