Plastic Coating DC12V IP66 Automatic Parking Lock for Secure Parking Space Protection
  • Plastic Coating DC12V IP66 Automatic Parking Lock for Secure Parking Space Protection
  • Plastic Coating DC12V IP66 Automatic Parking Lock for Secure Parking Space Protection
  • Plastic Coating DC12V IP66 Automatic Parking Lock for Secure Parking Space Protection
Plastic Coating DC12V IP66 Automatic Parking Lock for Secure Parking Space Protection

Plastic Coating DC12V IP66 Automatic Parking Lock for Secure Parking Space Protection

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BW-1
Product Details
Finish:
Spraying Plastic Coating
Remote Distance:
≤50m
Up Height:
305mm
Down Height:
85mm
Motor Voltage:
DC12V
Material:
2.00mm Steel Rolling
Highlight:

IP66 Automatic Parking Space Lock

,

DC12V Automatic Parking Space Lock

,

A3 Steel Parking Space Lock

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
3,000pcs per month
Product Description
Plastic Coating DC12V IP66 Automatic Parking Space Lock A3 Steel
This spray plastic coating surface finish automatic parking space lock with remote control provides the ideal solution to protect your parking space from unauthorized use. Simple to install and easy to operate.
Product Advantages
Heavy-Duty Construction
Body made of A3 steel with 2.00mm steel rolling, capable of bearing up to 2000KG weight. Enhanced structural strength available for special requirements.
Visual Status Indicator
Front-mounted indicator light displays operational status: steady red light during normal operation, flashing light indicates low battery voltage requiring timely recharge.
Crash Resistance & Safety
Built-in beeper alerts when barrier arm is forced down. Automatic power cutoff when excessive force is detected. Arm returns to upright position when released.
Energy Efficient Operation
Automatically switches to energy saving mode after one minute of inactivity.
Weather Resistant Design
IP66 outdoor protection rating with waterproof processing for motor and main components.
Emergency Manual Operation
Manual operation capability available when battery voltage is low.
Technical Specifications
Weight Resistance ≤5 ton
Dimensions 645×160×300mm
Up Height 300mm
Down Height 85mm
Outdoor Protection IP66
Surface Finish Spray plastic coating
Material 2.00mm steel rolling
Operation Time 5-6 seconds
Remote Control Distance ≤50m
Battery Life Approximately 3 months per charge
Input Voltage DC 12V
Working Power DC12V 7AH
Static Current ≤0.85Ah
Operating Temperature -40 to +70°C
Package Dimensions 700×180×100mm (1 set per carton)
Weight Gross: 12KG / Net: 11.5KG
Humidity 10%-95%

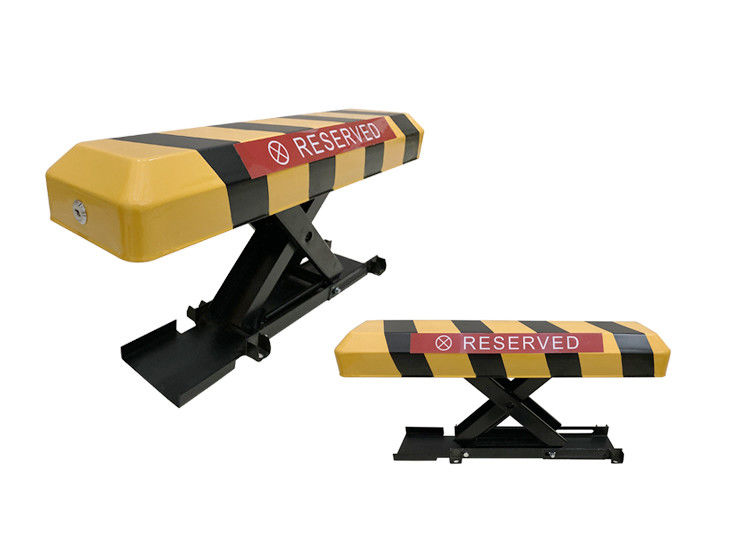

Product Image
Plastic Coating DC12V IP66 Automatic Parking Lock for Secure Parking Space Protection 0
Main Functions & Features
  • Easy Operation: Remote control operation for lowering and raising barrier arm
  • Simple Installation: Fixed to ground using expansion bolts
  • Long Battery Life: Rechargeable battery provides approximately 1000 uses or 6 months of continuous operation
  • Heavy-Duty Construction: High-quality steel housing withstands up to 5 tons with spray plastic coating for weather resistance
  • Security Features: Internal expansion bolt placement prevents unauthorized removal with audible alarm system
  • Power Safety: Anti-disconnecting design prevents battery misplacement and short circuits
  • Impact Protection: Audible alarm activates when vehicle hits the barrier
  • Emergency Manual Control: Manual operation available during power failure
  • Battery Monitoring: Audible alarm alerts when battery requires recharging
