LD500 5W Underground Loop Detector with Automatic Calibration for Vehicle Detection
  • LD500 5W Underground Loop Detector with Automatic Calibration for Vehicle Detection
  • LD500 5W Underground Loop Detector with Automatic Calibration for Vehicle Detection
  • LD500 5W Underground Loop Detector with Automatic Calibration for Vehicle Detection
LD500 5W Underground Loop Detector with Automatic Calibration for Vehicle Detection

LD500 5W Underground Loop Detector with Automatic Calibration for Vehicle Detection

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number LD-500
Product Details
Installation Location:
Underground
Relay Output:
Relay Output
Voltage Available:
220V, 110V, 24V, 12V
Loop Connection Wiring:
Maximum Length 200 Meters Twisted At Least 20 Times Per Meter
Operating Temperature:
-30℃ ~ +75℃
Automatic Calibration Time:
2s～5s
Highlight:

5s Underground Loop Detector

,

Vehicle Gate Underground Loop Detector

,

5W Traffic Signal Loop Detector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
2-5 working days after payment received
Payment Terms
T/T, L/C, D/A, D/P, Western Union,
Supply Ability
3,0000pcs per month
Product Description
LD500 Vehicle Gate 5s Underground Loop Detector 5W
Product Overview
Professional LD500 vehicle gate underground loop detector manufactured in Shenzhen, China, designed for reliable vehicle detection in various access control and traffic monitoring applications.
Applications
  • Parking lot entrance vehicle detection
  • Parking space information acquisition systems
  • Electronic police traffic light snapshot systems
  • Traffic monitoring and control systems
Product Description
The LD-500 loop detector is engineered for precise vehicle detection in access control, security monitoring, and traffic counting applications. The output signal efficiently controls door drive mechanisms, operates barriers, activates card dispensers, and integrates with various automated systems.
Technical Specifications
Parameter Specification
Operating Voltage AC220V ±10%
Power Consumption <5W
Relay Output DC24V / 3A
Frequency Range 20kHz – 170kHz
Reaction Time 20 ms
Sensitivity 10 grades adjustable
Loop Inductance Ideal 100µH–300µH, Max 50µH–1000µH
Loop Connection Wiring Max 100m, twisted at least 20 times
Automatic Calibration Time 2s–5s
Key Features
High accuracy in speed measurement and traffic volume counting
Excellent operational stability and reliability
Unaffected by meteorological and traffic environment changes
Industrial-grade design with 4 sensitivity levels
Multiple output port support
Built-in fault self-detection function
Automatic barrier closure after vehicle passage
OEM and ODM support available
Product Image

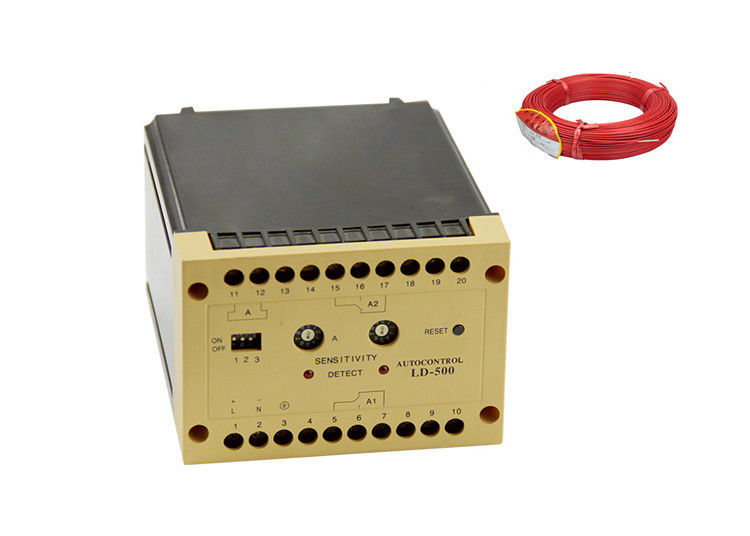

LD500 5W Underground Loop Detector with Automatic Calibration for Vehicle Detection 0
Advanced Features
  • Industrial engineering design concept
  • Standard industrial guide installation
  • Strong anti-jamming capability and operational stability
  • Multiple output interfaces for diverse application scenarios
  • Various shape options to meet different requirements
  • High temperature stability performance
  • Automatic environmental drift compensation
  • Coil automatic fault detection functionality
Additional Specifications
  • Type: LD-500 (single channel)
  • Operating Temperature: -30°C to +75°C
  • Storage Temperature: -40°C to +85°C
  • Relative Humidity: ≤95%
  • Shell Material: PC + ABS engineering plastics
  • Installation: DIN rail mounting
  • Dimensions: 110×60×100 mm (L×W×H)
  • Net Weight: 400g
