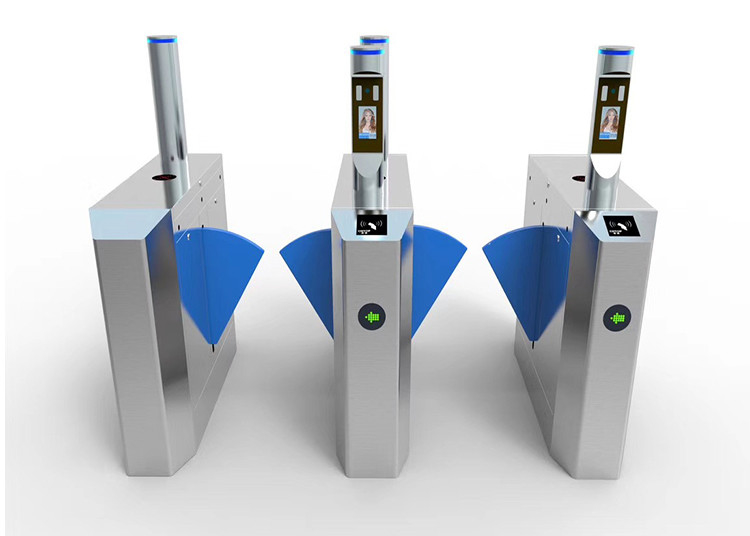

Retractable 0.2s RS485 SS304 Access Control Wing Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month
Product Details
Barrier Type Wing Gate Barrier Movement Retractable
Barrier Housing SS304 Barrier Material Acrylic
Working Temperature -20°C~60°C Reset Time When Power On 3s
High Light

SS304 Access Control Wing Gate

,

RS485 Access Control Wing Gate

,

0.2s Retractable Barrier Gate

Leave a Message
Product Description

SINGLE BI-DIRECTIONAL HIGH PEDESTRIAN TRAFFIC FLOW RELAY SIGNAL OPTICAL SUBWAY ENTRANCE FLAP TURNSTILE



PRODUCT INTRODUCTION


The wing gate is composed of the chassis, core component, wing arms, a PCB (printed circuit board),
infrared sensors(a reader, and the access control system is optional)


The system uses standard electric interfaces. It meets fire fighting passage requirements and is
equipped with dedicated fire control linkage interfaces. The entire system complies with the same
quality standard to ensure reliability, stability, and smoothness of the system during running.


The wing gate is applicable to work attendance, access control, consumption management, and
special passage control of enterprises and institutional organizations. It is conducive to the
management of ticket check passages in stations, wharves, convention and exhibition centres, and
swimming pools.


Features of Flap Barrier Gate



1.With fault self-test and alarm prompt function, convenient for user maintenance and use.



2.Through the built-in small push-pull on the main control board, device operating state can be programed.



3.The mechanical structure has anti-pinch and anti-collision function. When the swing arm is blocked during the reset process, the motor automatically stops working within the specified time. Reset again after the default delay (until reset), and the force is very small (≤ 2kg).



4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes



5.Anti-shock function, the arm is automatically locked when no open signal is received.



6.Telescopic arms are adjustable synchronously (for double pendulum)



7.With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s). After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.



8.Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)



9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.



10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.



11.Voice prompt function.



12.Remote control and management can be achieved directly through the management computer.




Test Procedure:
1. Connect a temporary test cable to the device and supply the input power of AC100-240V
adaptive to the device (Note that a ground cable must be connected.)


2. Wait 30 seconds till the wing gate completes the self-test procedure.


3. Start the air switch inside the wing gate to check whether the wing gate functions properly and
check whether the LED indicators function properly. If they all function properly, start the civil
installation. If an exception occurs, contact your sales agent.






TECHNICAL SPECIFICATIONS



ITEM SPECIFICATIONS
Working Voltage AC220V±10V / AC110V±10V
Motor Type DC brushless motor
Operating Temperature -20 to 60°C
Humidity <95%, without concretion
Passage Width About 600mm
Communication Interface RS485 (Distance: <=1200m)
Passing Speed

40 persons/min (normal open),

30 persons/min (normal close)

Flap length 260mm
Housing Dimension 1200*300*1000mm
Arm Open/Close Time                                        0.2s
