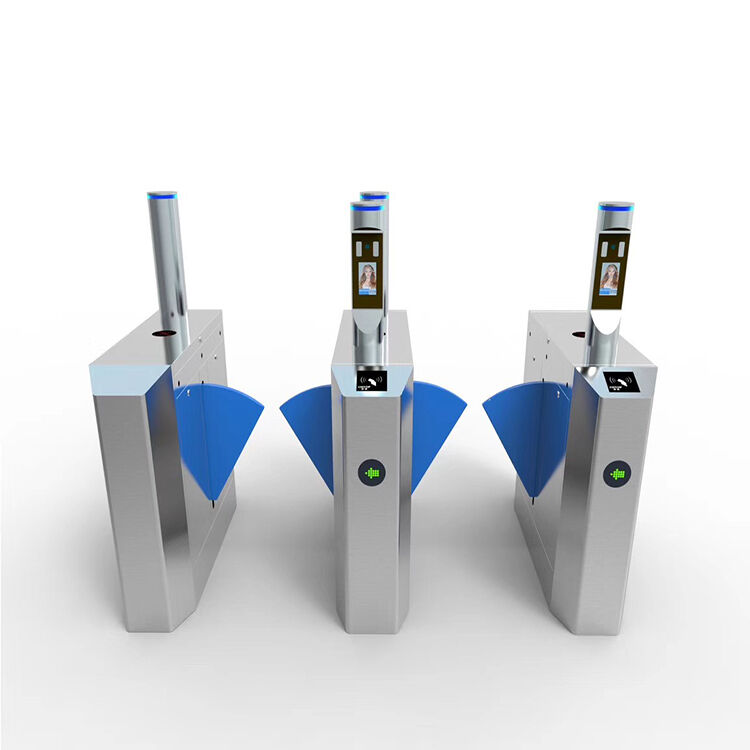

0.2s Retractable RS485 SS304 Access Control Wing Gate Flap Barrier Turnstile

Place of Origin	Shenzhen, China.
Brand Name	SINOMATIC
Certification	CE/ ISO
Model Number	SN-FB01

Product Details

Barrier Type:

Wing Gate

Barrier Movement:

Retractable

Barrier Housing:

SS304

Barrier Material:

Acrylic

Working Temperature:

-20°C~60°C

Reset Time When Power On:

Highlight:

SS304 Access Control Wing Gate

RS485 Access Control Wing Gate

0.2s Retractable Barrier Gate

Payment & Shipping Terms

Minimum Order Quantity

Sample order accepted

Price

negotiable

Packaging Details

Carton/Plywood box/Pallet

Delivery Time

5-10 working days after payment received

Payment Terms

T/T or western Union

Supply Ability

3,000pcs per month

Product Description

Retractable 0.2s RS485 SS304 Access Control Wing Gate

SINGLE BI-DIRECTIONAL HIGH PEDESTRIAN TRAFFIC FLOW RELAY SIGNAL OPTICAL SUBWAY ENTRANCE FLAP TURNSTILE

Product Introduction

The wing gate system consists of a chassis, core components, wing arms, PCB (printed circuit board), infrared sensors, and an optional reader with access control system.

Featuring standard electric interfaces, this system meets fire safety passage requirements and includes dedicated fire control linkage interfaces. All components adhere to consistent quality standards to ensure reliable, stable, and smooth operation.

Ideal for enterprises and institutional organizations, this wing gate is suitable for time attendance, access control, consumption management, and specialized passage control. It effectively manages ticket check passages in stations, ports, convention centers, exhibition halls, and swimming pools.

Features of Flap Barrier Gate

Fault self-test and alarm prompt functions for easy maintenance and operation
Programmable operating states via built-in small push-pull on main control board
Anti-pinch and anti-collision mechanical structure with automatic motor stop during obstructions
Illegal intrusion and trailing alarm system with automatic closure on reverse intrusion
Anti-shock function with automatic arm locking when no open signal is received
Synchronously adjustable telescopic arms (for double pendulum models)
Automatic reset function with adjustable timing from 1-60 seconds
Infrared sensor reset and anti-trap functionality with 5-pair infrared configuration
Compatible with access control, consumption, electronic ticket, biometric systems, and electrostatic testers
Bi-directional personnel control with infrared sensing in/out channels
Voice prompt functionality
Remote control and management via management computer

Test Procedure

Step 1: Connect temporary test cable and supply AC100-240V input power (ensure ground cable connection)

Step 2: Allow 30 seconds for wing gate to complete self-test procedure

Step 3: Activate air switch to verify proper wing gate and LED indicator functionality

If exceptions occur during testing, contact your sales agent immediately.

Technical Specifications

ITEM	SPECIFICATIONS
Working Voltage	AC220V±10V / AC110V±10V
Motor Type	DC brushless motor
Operating Temperature	-20 to 60°C
Humidity	<95%, without concretion
Passage Width	Approximately 600mm
Communication Interface	RS485 (Distance: <=1200m)
Passing Speed	40 persons/min (normal open), 30 persons/min (normal close)
Flap Length	260mm
Housing Dimension	12003001000mm
Arm Open/Close Time	0.2s
