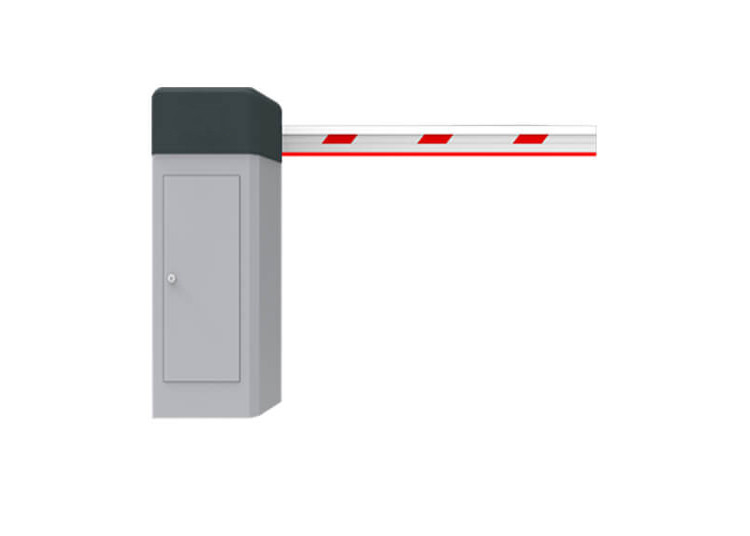

Powder Coating 80W 1.8s Aluminum Alloy Barrier Gate 6m Boom
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BG102 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram, D/A, L/C, D/P |
| Supply Ability | 3,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thickness Of Housing | 2mm Cold Rolled Steel Sheet | Surface Finish | Powder Coating |
|---|---|---|---|
| Arm Length | Max 6 Meters | Boom Type | Straight, Folding And Fencing |
| Speed | 1s, 1.8s, 3s, 6s | Package | Carton |
| High Light | 1.8s Aluminum Alloy Barrier Gate,80W Aluminum Alloy Barrier Gate,8m Boom Entrance Barrier Gate |
||
Product Description
Die-Casting Aluminum Alloy Motor Double Sensor Vehicle Entrance Automatic Barrier Systems
PRODUCT DESCRIPTION
BG102 series parking barrier adopts die-casting aluminum alloy motor and extraordinary structural design, it offers not only a long-life cycle, high reliablity and quality, but also reduces the difficulty of equipment maintenance. It is an ideal choice for vehicle entrance control management.
Production Series
| Model No. (BG) | Open/Close Speed | Max Boom Length | Boom Type |
| 102-16 | 6 sec | 6m | straight boom |
| 102-13 | 3 sec | 4.5m | straight boom |
| 102-11 | 1 sec | 3m | straight boom |
| 120-26 | 6 sec | 5m | 90 degree,Articulated boom |
| 102-23 | 3 sec | 3m | 90 degree,Articulated boom |
| 102-36 | 6 sec | 5m | 180 degree,Articulated boom |
| 102-33 | 3 sec | 3m | 180 degree,Articulated boom |
| 102-46 | 6 sec | 4.5m | Two-level, fence boom |
| 102-56 | 6 sec | 4m | Three-level, fence boom |
PRODUCT PHOTO
Technical Specifications
| Opening/closing time | 1s, 1.8s, 3s, 6s |
| Supply Voltage | 220V±10%, 110V±10% |
| Working Temperature | -40℃~+75℃ |
| Frquency | 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 55kgs |
| Arm Speed | 1s, 1.8s, 3s, 6s |
| Max boom length | 8 meters |
Components inside the cabinet
Sensor: The sensor on the bottom of motor. It is using for that if the boom falling down press any other obstacles, the boom will lifted up automatically.
Motor: AC power motor
Hall sensor: Connect to Limited switch port of control board, which limited the close/open position. Shock absorber: A gel is used to absorb the pressure of close/open boom
Spring: Using it to keep balance with boom. For example, the boom changed short opening plastic nuts
to make spring loosen a little. Otherwise the boom may can’t close totally.
Functions & Features
1) Manual realease
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;
3) Die-casting aluminum alloy motor, precision and good at thermal radiating;
4) Motor cooling fan, solving the problem of heat-protection;
5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);
6) Reversing on obstacle;
7) Auto-closing;
8) Support the In frared Photocell for anti-bumping function(optional);
9) Support the external and internal Vehicle Loop Detector;
10) Traffic light interface;
11) Wire Control ( switch signal) / remote control (418 HZ/433 HZ );
12) RS485 Communication module (optional).
FAQ:
Q: What's the monthly production capacity for barrier gate?
A: 1000 units.
Q: What is the warranty for the machine?
A: 12 months.
Q: When will you make the delivery?
A: In general, Regular products: 2-7 days.
Q: How does your factory control the quality?
A: Quality controlling from the beginning to the ending.
Q: What is your MOQ?
A: Any quantity is acceptable.
Q: Payment term?
A: 30% deposit, 70% before delivery
