600mm Width RS485 Access Control Flap Barrier Gate with 3s Reset Time
  • 600mm Width RS485 Access Control Flap Barrier Gate with 3s Reset Time
  • 600mm Width RS485 Access Control Flap Barrier Gate with 3s Reset Time
  • 600mm Width RS485 Access Control Flap Barrier Gate with 3s Reset Time
600mm Width RS485 Access Control Flap Barrier Gate with 3s Reset Time

600mm Width RS485 Access Control Flap Barrier Gate with 3s Reset Time

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Application:
Metro Station
Baffle Material:
Acrylic
Baffle Color:
Clear
Housing Dimension:
1200*300*1000
Working Temperature:
-20°C~60°C
Reset Time When Power On:
3s
Highlight:

3s Retractable Baffle Gate System

,

RS485 Retractable Baffle Gate System

,

600mm Width Access Control Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
Access Control RS485 3s Retractable Baffle Gate System 600mm Width
Single Bi-Directional High Pedestrian Traffic Flow Relay Signal Optical Subway Entrance Flap Turnstile
Luxury intelligent flap gate compatible with IC card, ID card, barcode card, and fingerprint reading card recognition devices. Designed for staff access management, providing civilized and orderly access methods while effectively controlling personnel entry and exit. Ideal for stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring sophisticated access management systems.
Features of Flap Barrier Gate
  • Fault self-test and alarm prompt function for easy maintenance
  • Programmable operating states via built-in push-pull main control board
  • Anti-pinch and anti-collision mechanical structure with automatic motor stop
  • Illegal intrusion, trailing alarm, and reverse intrusion protection
  • Anti-shock function with automatic arm locking
  • Synchronously adjustable telescopic arms (for double pendulum models)
  • Automatic reset function with adjustable timing (1-60 seconds)
  • Infrared sensor reset and anti-trap function with 5-pair infrared sensors
  • Compatible with access control, consumer, electronic ticket, biometric systems, and electrostatic testers
  • Bi-directional control with infrared sensing channels
  • Voice prompt functionality
  • Remote control and management via computer interface
Product Images

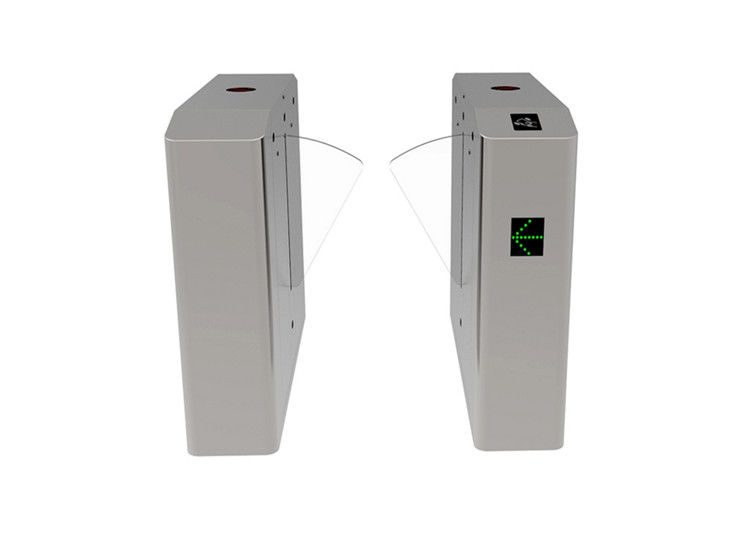

600mm Width RS485 Access Control Flap Barrier Gate with 3s Reset Time 0 600mm Width RS485 Access Control Flap Barrier Gate with 3s Reset Time 1
Technical Specifications
Item Specifications
Working Voltage AC220V±10V / AC110V±10V
Motor Type DC brushless motor
Operating Temperature -20 to 60°C
Humidity <95%, without concretion
Passage Width About 600mm
Communication Interface RS485 (Distance: <=1200m)
Passing Speed 40 persons/min (normal open), 30 persons/min (normal close)
Flap Length 260mm
Housing Dimension 1200*300*1000mm
Arm Open/Close Time 0.2s

Tags:

automatic flap barrier,

waist high turnstile,

flap turnstile
