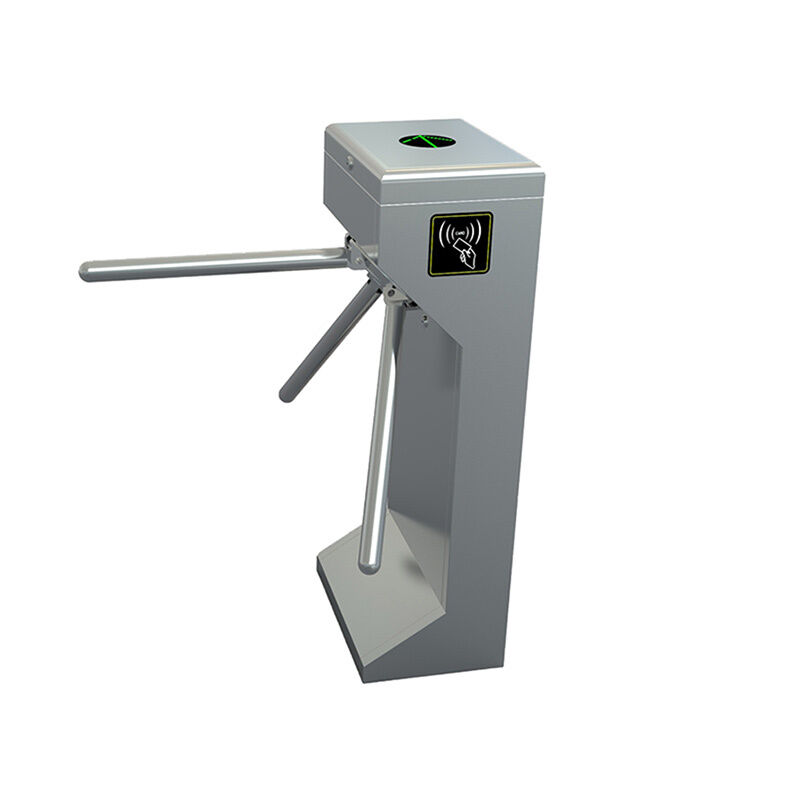

510mm Arm DC24V IP54 Mechanical Drive Tripod Turnstile Gate for Pedestrian Control
  • 510mm Arm DC24V IP54 Mechanical Drive Tripod Turnstile Gate for Pedestrian Control
  • 510mm Arm DC24V IP54 Mechanical Drive Tripod Turnstile Gate for Pedestrian Control
510mm Arm DC24V IP54 Mechanical Drive Tripod Turnstile Gate for Pedestrian Control

510mm Arm DC24V IP54 Mechanical Drive Tripod Turnstile Gate for Pedestrian Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Power Supply:
100V~240V
Control Signal:
Relay Signal
Application:
Indoor/outdoor
Thickness Of Housing:
1.2mm
Control Voltage:
DC24V
Housing Surface Treatment:
Wire-drawing
Highlight:

60W Mechanical Drive Tripod Gate

,

DC24V Mechanical Drive Tripod Gate

,

510mm Arm Tripod Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
1,000 pcs per month
Product Description
510mm Arm DC24V 60W Mechanical Drive Tripod Gate IP54
Electro Economical Turnstiles with Unique Mechanical Drive
SN-TT01 tripod turnstile gate is an electro economical turnstile featuring unique mechanical drive design that allows the arm to be pushed effortlessly and auto-rotate back without expensive electric motors.
High Volume Traffic Management
Effectively controls high volume human traffic (up to 30 people per minute) while maintaining a welcoming atmosphere. Easily integrates with electronic systems for ticketing, access control, or time attendance.
Product Design
510mm Arm DC24V IP54 Mechanical Drive Tripod Turnstile Gate for Pedestrian Control 0
Product Specifications
Accessories Outer box 304#
Product size 480*280*1000mm
Arm length 510mm
Traffic direction One-way traffic / Two-way traffic
Opening method IC / ID card reader, etc.
Opening signal Switch on
Traffic speed 30 people / minute
Input voltage AC220V ± 10V, 50Hz
Input interface +12V level signal or DC12V pulse with pulse width > 100ms
Communication interface signal Dry contact
Working environment temperature -20ºC ~ 70ºC
Power 30-60W
Service life Not less than 3 million times
Protection level IP54
Functions and Features
  • Auto-reposition function: After card read, if passengers don't pass within regulated time period, turnstile locks automatically
  • Bi-directional or uni-directional passing options
  • Automatic arm drop when power is off
  • Self-lock function: Arm locks automatically after passenger passing
  • LED passing arrow indicates direction to guide passengers
  • Standard interfaces for easy connection with different readers sending relay signals
  • Stable running with minimal noise
Anti-Tailgating Security
SN-TT01 tripod turnstile gate eliminates tailgating problems common in other brands. Ensures one card allows only one person to pass through at a time, preventing unauthorized entry and maintaining security integrity.
Applications
Ideal for pedestrian management in high-frequency entrance and exit locations. Widely used in airports, stations, terminals, attractions, parks, shopping malls, office buildings, and pedestrian walkways. Suitable for both indoor and outdoor installation.
OEM Services Available
We offer comprehensive OEM services including custom barrier gate configurations, logo printing on turnstiles, and customized retail box packaging according to your specific requirements.
