| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-TT01 |
Electro Economical Turnstiles Unique Mechanical Drive High Volume Human Traffic Tripod Gate

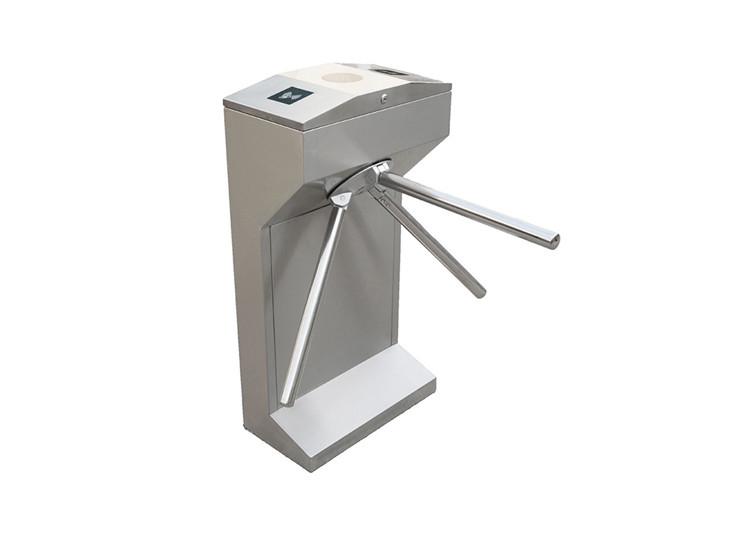

ABOUT SINOMATIC TRIPOD TURNSTILE GATE
SN-TT01 tripod turnstile gate is an electro economical turnstiles. Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor.
It can effectively control high volume human traffic ( up to 30 person per minutes ) while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance.
It is the ideal management and guidance equipment for pedestrians with high-frequency entrance and exit. Widely used in airports, stations, terminals, attractions, parks, shopping malls, office buildings, pedestrian walkways and other places.
Tail gating is a common problem in other brand turnstiles. Multiple users can go through the turnstile with a single flash card. This create security loop hole at entrance and defeat the purpose of installing turnstile. There is no purpose to install turnstile if any unauthorised user can just follow the authorized user to go into your building without flashing card.
SN-TT01 tripod turnstile gate solve this problem and can ensure 1 card can only allow 1 person to pass through at a time.
SN-TT01 is suitable for indoor and outdoor. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, game park, bank and etc
PRODUCT DESIGN
PRODUCT SPECIFICATIONS
| 1. Accessories: | outer box 304 # |
| 2. Product size: | 480*280*1000mm |
|
5.Arm length:
|
510mm |
| 6. Traffic direction: | one-way traffic / two-way traffic |
| 7. Opening method: | IC / ID card reader, etc. |
| 8.Opening signal: | switch on |
| 9. Traffic speed: | 30 people / minute |
| 10. Input voltage: | AC220V ± 10V, 50Hz |
| 11.Input interface: | + 12V level signal or DC12V pulse with pulse width> 100ms |
| 12. Communication interface signal: | dry contact |
| 13. Working environment temperature: | -20 ºC ~ 70 ºC |
| 14. Power: | 30-60W |
| 15. Service life: | not less than 3 million times |
| 16. Protection level: | IP54 |
FUNCTION AND FEATURES
1.Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be locked automatically
2.Bi-direction passing or uni-direction
3.When power off, arm will be dropped automatically
4.Self-lock function: arm will be locked automatically after passenger passing
5.LED passing arrow can show direction to indicate passenger to pass
6.Standard interfaces are convenient for connection with different readers which can send relay signal
7.Stable running with little noise.
Applications of Tripod Turnstile Gate:
304 stainless waist height tripod turnstile gate is suitable for many locations:
They are optimized economical solution for airport, bus station, metro station, supermarket, police station, factory, colleges, commercial building etc.
Do you provide OEM service?
Yes, we can offer OEM services as follows:
1) We can customize barrier gate according to your needs.
2) We can print your logo on the turnstile, and customize retail box packing and other things you need.
