6m Boom length Parking Management Airborne Drop Arm Gate 250W power

Place of Origin SHENZHEN, CHINA
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ABBG01
Minimum Order Quantity 1
Price negotiable
Packaging Details CARTON/WOODEN
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month
Product Details
Body Material Mild Steel Arm Material Aluminum Alloy
Surface Treatment Electrostatic Spraying Box Dimension 457*686*1275mm
Boom Lenght 1m To 6m Boom Total Height 1168mm
High Light

Parking Management Airborne Sliding Gate

,

6m Boom Airborne Sliding Gate

,

250W Sliding Barrier Gate

Leave a Message
Product Description

6m Boom Length Parking Management Airborne Drop Arm Gate 250W Power



PRODUCT DESCRIPTION



A airborne boom barrier is designed for a range of large opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.


As a manufacturer, we have more than 15 year experiences on designing, producing and installing boom barriers. The result is a superior boom barrier with best after after-sales service.


Quality control is our top priority, so we vigorously test our boom barriers to make sure a longer life span.


With our excellent craftsmanship, nice welding, galvanized and powder coated surface finishing, quiet and smooth during operation, our boom barriers can bring perfect user experience.



Advance features



Material structure:

The door body is made of high-quality cold-rolled steel. The structure of the door body is simple and beautiful, the structure is compact, and the mechanical properties and chemical composition of the material are in line with the industry.



Leakage protection:

The product has leakage protection function, which can over-current and over-voltage protection of the control system.



Automatic stop function

When the body is running, when the limit signal is detected, the door will automatically stop running.



PRODUCT SPECIFICATION



Type
Airborne barrier gate
Working temperature
-30°C to 80°C
Voltage
110V/220V+10%
Housing materials
2mm cold-roller sheet
Box weight
110KG
Boom length (mm)
1M to 6M
Rated Power
250W
Housing size
46cm*69cm*128cm
Motor type
AC motor
Boom height
1168mm
Input power
220AC/AC110 50-60HZ
Remote control distance
≤30M
MTBF
5M cycles
Boom speed
9s
IP grade
IP44
Boom materials
Aluminum alloy

Color
1.White with blue;White with grey;
2.Blue;Orange;Black





PRODUCT PHOTO

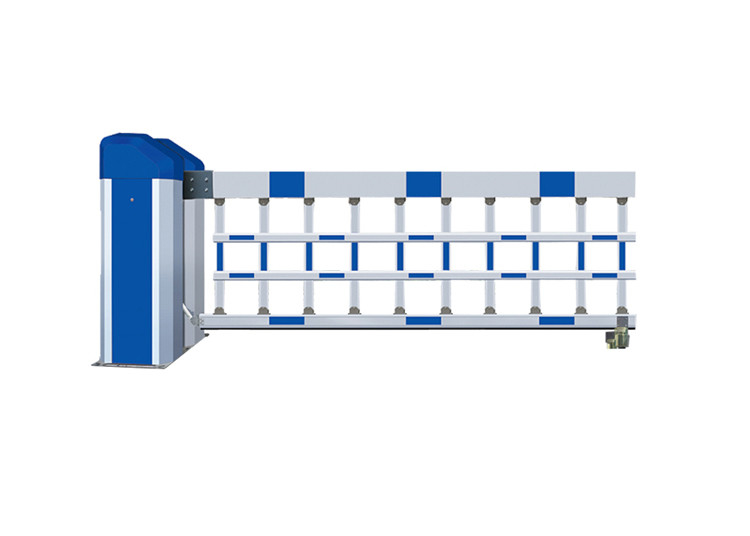

6m Boom length Parking Management Airborne Drop Arm Gate 250W power 0

6m Boom length Parking Management Airborne Drop Arm Gate 250W power 1



AIRBORNE BARRIER GATE FEATURES AND FUNCTIONS



1. The box is waterproof, durable and can be used in outdoor environments. Closed fence barriers prevent people from crossing casually.



2. The box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been subjected to high-temperature hot-melt baking, scrubbing and anti-UV quality, ensuring no fading for about three years.



3. This system can be equipped with soft hose to prevent crash, as well as other protective equipment such as air pressure waves, so that the system has anti-smashing functions.



4. A variety of control methods are available for users to choose. Both external wired and remote control can be used to control the rise/lower/stop of the gate.



5. The use of multiple protection measures (heater protection, low temperature protection, wind protection, anti-electricity protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.



6. Integrating electricity and mechanical control, flexible operation, convenient and reliable.



7. It can be used with the optional vehicle detector to make it have the functions of “automatic drop-off after the car passing” and “automatic lifting of the drop-bar when there is a car”, which makes the barrier have automatic closing and perfect anti-smashing function.



8. Opening priority function, which can effectively improve the efficiency of the vehicle passing.



9. The system uses a standard electrical interface externally, which can be easily attached to other systems.



10. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance is stable, the operation is smooth, the noise is small, and the service life is long.
