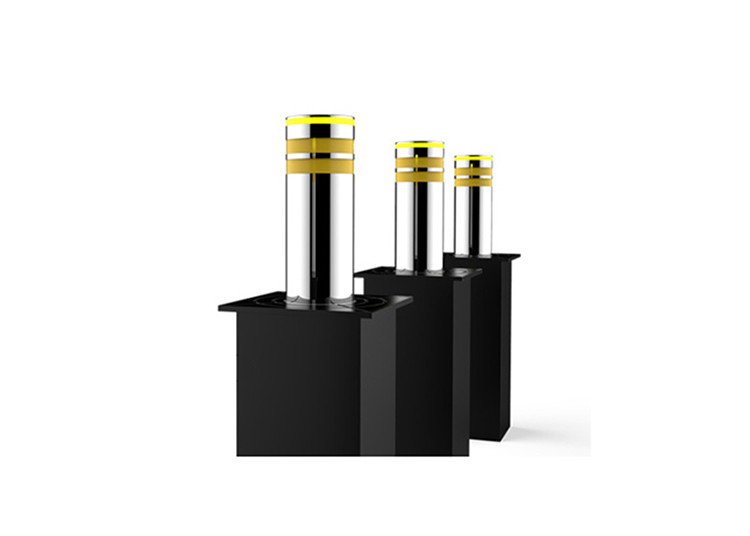

PLC Control SS316 1000mm Height Hydraulic Security Bollard

  • PLC Control SS316 1000mm Height Hydraulic Security Bollard
  • PLC Control SS316 1000mm Height Hydraulic Security Bollard
  • PLC Control SS316 1000mm Height Hydraulic Security Bollard
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability 1000 pcs a month
Product Details
Brand SINOMATIC Tube Material SS304/SS316
Bollard Diameter 168/219/273/324mm Bollard Height 600 To 1000mm
SS304 Thickness 6/8/10/12/15/20 Flange Thickness 10mm
High Light

1000mm Height Hydraulic Security Bollard

,

SS316 Hydraulic Security Bollard

,

PLC Control Waterproof Traffic Road
Leave a Message
Product Description

Waterproof Traffic Road Safety Barrier Parking Hydraulic security Bollard



ABOUT SINOMATIC HYDRAULIC ROAD BOLLARD



Automatic bollard Feature

High security and anti-collision ability

Pneumatic air pump in control cabinet could procide large power safely for a long time.

Electronic control, automatic rise/fall

High system independence



Automatic bollard Reflective band

Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.



Automatic bollard Materials Available

304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.



Automatic bollard Flange

Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.



Automatic bollard​ Top cap

Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.



PRODUCT PHOTO

PLC Control SS316 1000mm Height Hydraulic Security Bollard 0

PLC Control SS316 1000mm Height Hydraulic Security Bollard 1



rising hydraulic bollards Material
Cylinder
304 Stainless steel
Flange
304 Stainless steel
Flange thickness
10mm
Pre-embedded section
Q235 Steel (A3, Dark grey Spray paint)
Actuator piston rod dia.
18mm
Hydraulic cylinder
304 Stainless steel
Rail
QPQ treatment
Rail dia.
20mm
Reflective tape
50mm(yellow)
LED warning light
RGB, various dynamic mode



rising hydraulic bollards Control Center
Control Center
PLC (With display)
Housing
Spray paint (Outdoor use)
Seft-testing program
Yes
Trial period setting
Yes
Warning light Auto ON/OFF
Yes
Emergency rising/dropping
Yes
Emergency dropping once power off
Yes
Remote control
100m
LED remote control
30m, 2.4GHz remote control
Wire switch
Optional



ADVANTAGE FEATURES

  • Different thickness of steel is available (default 6mm)
  • Different color is available
  • Customized size is available
  • Steady and safe due to the OMRON PLC control system
  • Speedy rising time and durable quality with hydraulic pressure
  • Housing with durable and stainless Galvanization
  • Optimization of frame structure, high anti-impact capability, high loading capability
  • High security and anti-collision ability
  • With a reflective band and a low energy consumption LED light at night



PRODUCT FUNCTIONS & FEATURES



1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.

2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.

3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column,

    4 navigation rods

4. Can be manually lowered in the event of a power outage

5. Linkage interface

6. Reversible operation according to requirements during ascent and descent

7. Noise during operation of the device≤60 dB

8. Waterproof integrated hydraulic drive

9. Control solenoid valve 24V

10. Control box display text adjustable (up, down, start, time control adjustment)

11. Display text in English

12. Water immersion performance:no leakage during 48 hours and normal lifting



Packaging& Delivery:


1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.
