PLC Control SS316 1000mm Height Hydraulic Security Bollard for High Traffic Safety
  • PLC Control SS316 1000mm Height Hydraulic Security Bollard for High Traffic Safety
  • PLC Control SS316 1000mm Height Hydraulic Security Bollard for High Traffic Safety
  • PLC Control SS316 1000mm Height Hydraulic Security Bollard for High Traffic Safety
PLC Control SS316 1000mm Height Hydraulic Security Bollard for High Traffic Safety

PLC Control SS316 1000mm Height Hydraulic Security Bollard for High Traffic Safety

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Brand:
SINOMATIC
Tube Material:
SS304/SS316
Bollard Diameter:
168/219/273/324mm
Bollard Height:
600 To 1000mm
SS304 Thickness:
6/8/10/12/15/20
Flange Thickness:
10mm
Highlight:

1000mm Height Hydraulic Security Bollard

,

SS316 Hydraulic Security Bollard

,

PLC Control Waterproof Traffic Road

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description
PLC Control SS316 1000mm Height Hydraulic Security Bollard
Waterproof Traffic Road Safety Barrier Parking Hydraulic Security Bollard
Product Overview
Automatic Bollard Features
  • High security and anti-collision capability
  • Pneumatic air pump in control cabinet provides large power safely for extended operation
  • Electronic control with automatic rise/fall functionality
  • High system independence
Reflective Band Options
Various color options available for gloss reflective band; requires minimal light for clear nighttime visibility
Material Options
Available in 304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint
Anti-Skid Flange Design
Unique pattern design compatible with various road surface styles. Built-in PA orientation system
Top Cap Integration
Simple integration design compatible with all architectural styles. Excellent workmanship resistant to close attacks
Product Images

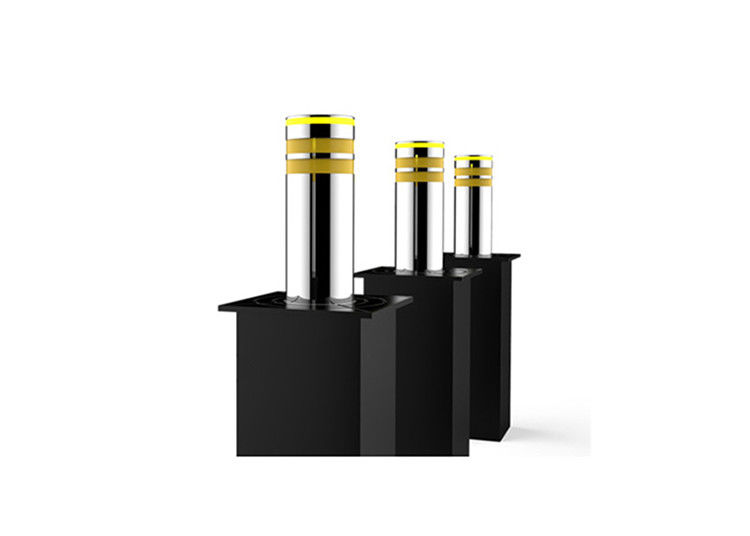

PLC Control SS316 1000mm Height Hydraulic Security Bollard for High Traffic Safety 0 PLC Control SS316 1000mm Height Hydraulic Security Bollard for High Traffic Safety 1
Material Specifications
Component Material/Details
Cylinder 304 Stainless Steel
Flange 304 Stainless Steel
Flange Thickness 10mm
Pre-embedded Section Q235 Steel (A3, Dark Grey Spray Paint)
Actuator Piston Rod Diameter 18mm
Hydraulic Cylinder 304 Stainless Steel
Rail QPQ Treatment
Rail Diameter 20mm
Reflective Tape 50mm (Yellow)
LED Warning Light RGB, Various Dynamic Modes
Control Center Specifications
Feature Specification
Control Center PLC (With Display)
Housing Spray Paint (Outdoor Use)
Self-Testing Program Yes
Trial Period Setting Yes
Warning Light Auto ON/OFF Yes
Emergency Rising/Dropping Yes
Emergency Dropping Once Power Off Yes
Remote Control 100m
LED Remote Control 30m, 2.4GHz Remote Control
Wire Switch Optional
Advantage Features
  • Different thickness of steel available (default 6mm)
  • Various color options available
  • Customized sizes available
  • Steady and safe operation with OMRON PLC control system
  • Speedy rising time and durable quality with hydraulic pressure
  • Housing with durable and stainless galvanization
  • Optimized frame structure with high anti-impact and loading capability
  • High security and anti-collision ability
  • Reflective band and low energy consumption LED light for nighttime visibility
Product Functions & Features
  • Anti-collision: Functions normally after impact from 12-ton vehicle
  • Anti-destructive power: Withstands impact from 16-ton vehicle with deformation
  • Internal structure: Load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods
  • Manual lowering capability during power outages
  • Linkage interface compatibility
  • Reversible operation during ascent and descent
  • Operating noise ≤60 dB
  • Waterproof integrated hydraulic drive system
  • Control solenoid valve 24V
  • Control box display with adjustable text (up, down, start, time control adjustment)
  • Display text in English
  • Water immersion performance: No leakage during 48 hours with normal lifting operation
Packaging & Delivery
Packaging: Standard Export Packing or customized per customer requirements
Delivery: Express, Air, or Sea shipping based on customer requirements
Taxes & Duties: International customers are responsible for all duties and taxes. Please contact your local authority for questions related to applicable duties or taxes.
