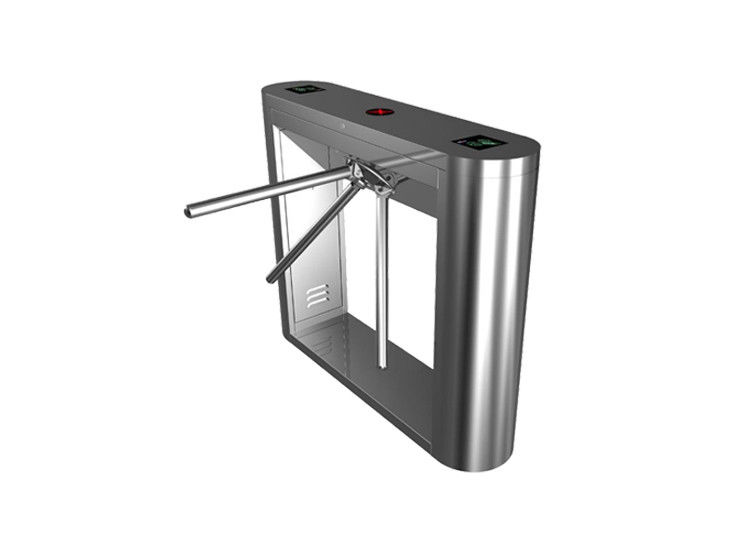

1.2mm SS304 Low Noise Operation 35persons/min Access Control Tripod Turnstile Gate
  • 1.2mm SS304 Low Noise Operation 35persons/min Access Control Tripod Turnstile Gate
  • 1.2mm SS304 Low Noise Operation 35persons/min Access Control Tripod Turnstile Gate
  • 1.2mm SS304 Low Noise Operation 35persons/min Access Control Tripod Turnstile Gate
1.2mm SS304 Low Noise Operation 35persons/min Access Control Tripod Turnstile Gate

1.2mm SS304 Low Noise Operation 35persons/min Access Control Tripod Turnstile Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Passage Width:
550mm
Arm Lenght:
500mm
Housing Size:
1200*280*980mm
Origin:
SHENZHEN CHINA
Package:
Plywood
Net Weight:
60KG
Highlight:

SS304 Access Control Tripod Turnstile

,

35persons/min Access Control Tripod Turnstile

,

1.2mm Stainless Steel Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
1,000pcs per month
Product Description
1.2mm SS304 35persons/min Access Control Tripod Turnstile
Low Noise Operation High Security Access Control Stainless Steel Tripod Turnstile Gate
Product Overview
This modern stainless steel tripod turnstile is designed for both indoor and outdoor applications without requiring additional shelter. It provides an elegant and secure access control solution suitable for stadiums, arenas, perimeter security, amusement parks, retail crowd control, transit fare collection, and lobby access management.
Technical Specifications
ModelSN-TT03
Size1200×280×980mm
Material1.2mm SS304
Pass Width550mm
Passage DirectionBi-directional
Pass Rate30-35 persons/minute
Operating Time0.2 seconds
Power InputAC100-240V, 50/60HZ
Working Voltage24V
Working Humidity5%~95%
Working Temperature-40℃~+70℃
Working EnvironmentIndoor/Outdoor
Communication Interface12v Dry contact, Relay
Product Dimensions
1.2mm SS304 Low Noise Operation 35persons/min Access Control Tripod Turnstile Gate 0
Product Images
1.2mm SS304 Low Noise Operation 35persons/min Access Control Tripod Turnstile Gate 1
1.2mm SS304 Low Noise Operation 35persons/min Access Control Tripod Turnstile Gate 2
Key Features
  • 304 stainless steel housing (SS316 optional)
  • CNC stamping and laser drilling for elegant appearance
  • Innovative mounting surface for simple installation
  • Configurable as single-direction or bi-directional
  • Integrated direction indicator
  • Compatible with various card readers: RFID, bar codes, fingerprints (access controller required)
  • Automatic reset function with 5-second default timeout
  • Automatic regulated hydraulic buffer device for quiet, impact-free operation
  • Dual-bearing device for balance and stability
Packaging Details
Commodity: Tripod Turnstile Barrier
Package Type: Export Wooden Box
Product Dimension: L1200 × W280 × H990mm
Packing Dimension: L1300 × W400 × H1160mm
Unit Weight: 60kg
Gross Weight: 80kg
CBM: 0.60CBM/pcs
Port: Shenzhen Yantian, Shekou
Lead Time: 3-7 days
Safety and User-Oriented Design
  • Drop arm design for emergency situations
  • No exposed screws for enhanced user safety
  • Smooth operation optimized for mass transit applications
  • Clear pictograms indicating access permission and movement direction
  • Ergonomic case design for convenient card/fingerprint access
  • Anti-tailgate protection
Easy Integration
Features flexible reader installation plate for easy third-party reader integration, standard electrical interfaces, and compact mechanism design providing ample internal space. Factory integration services available with pre-installed boards and peripherals for plug-and-play operation, reducing installation costs and ensuring system compliance.
