AC 220V 5M MTBF 250W 1050mm Boom Auto Barrier Gate
|Place of Origin||Shenzhen, China.|
|Minimum Order Quantity||Sample order accepted|
|Packaging Details||Carton/Plywood box/Pallet|
|Delivery Time||5-10 working days after payment received|
|Payment Terms||T/T, Western Union, MoneyGram|
|Supply Ability||500 pcs per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Motor Power||250W||Opening/Closing Time||9s|
|Boom Center Height||1050mm||Box Dimension||457*686*1275mm|
|Boom Lenght||Max 6m||Boom Total Height||1168mm|
1050mm Boom Auto Barrier Gate,
5M MTBF Auto Barrier Gate,
250W Parking Lot Barrier Gate

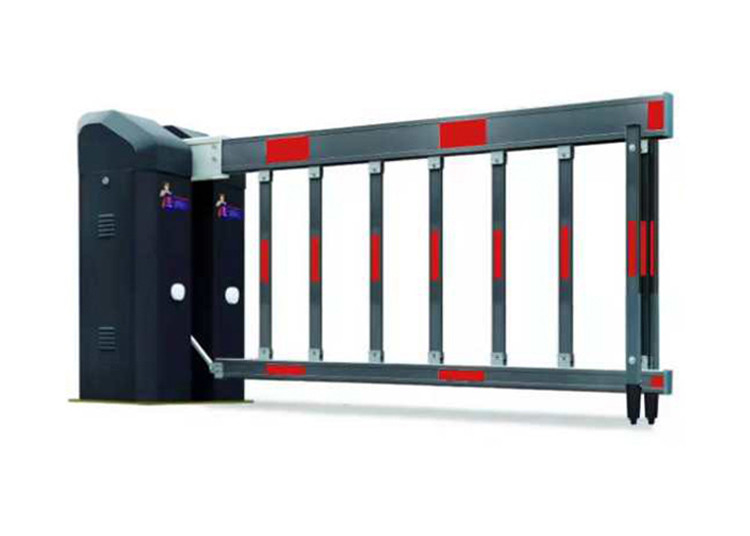

250W motor power 1050mm boom center height Airborne auto barrier Gate system
A airborne boom barrier is designed for a range of large opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.
As a manufacturer, we have more than 15 year experiences on designing, producing and installing boom barriers. The result is a superior boom barrier with best after after-sales service.
Quality control is our top priority, so we vigorously test our boom barriers to make sure a longer life span.
With our excellent craftsmanship, nice welding, galvanized and powder coated surface finishing, quiet and smooth during operation, our boom barriers can bring perfect user experience.
AIRBORNE BARRIER GATE SPECIFICATIONS
|Power input||AC220/AC110 50/60HZ|
|Boom length||1m to 6m|
AIRBORNE BARRIER GATE FEATURES AND FUNCTIONS
1. The box is waterproof, durable and can be used in outdoor environments. Closed fence barriers prevent people from crossing casually.
2. The box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been subjected to high-temperature hot-melt baking, scrubbing and anti-UV quality, ensuring no fading for about three years.
3. This system can be equipped with soft hose to prevent crash, as well as other protective equipment such as air pressure waves, so that the system has anti-smashing functions.
4. A variety of control methods are available for users to choose. Both external wired and remote control can be used to control the rise/lower/stop of the gate.
5. The use of multiple protection measures (heater protection, low temperature protection, wind protection, anti-electricity protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.
6. Integrating electricity and mechanical control, flexible operation, convenient and reliable.
7. It can be used with the optional vehicle detector to make it have the functions of “automatic drop-off after the car passing” and “automatic lifting of the drop-bar when there is a car”, which makes the barrier have automatic closing and perfect anti-smashing function.
8. Opening priority function, which can effectively improve the efficiency of the vehicle passing.
9. The system uses a standard electrical interface externally, which can be easily attached to other systems.
10. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance is stable, the operation is smooth, the noise is small, and the service life is long.
AIRBORNE BARRIER GATE DIMENSION
AIRBORNE BARRIER GATE APPLICATION
