| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB02 |
A3 Steel Anti-terrorism 24V Control solenoid valve Hydraulic Security Road Blocker System
Keywords
Hydraulic blocker, hydraulic road blocker, automatic rising blocker, automatic blocker, LED bollards, retractable road blocker, automatic traffic road blocker, anti-terrorism remote control blocker, fixed road blocker, 304 stainless steel road blocker, access control system blocker, security road blocker, safety road blocker, ground road blocker, metal road blocker, hydraulic rising blocker.
Introduction of hydraulic road blocker
The Hydraulic Road Blocker is the vehicle control device which can be either integrated with various parking systems or installed as single unit, designed as an effective means of controlling access to high security areas such as: airports, ports, customs, governmental buildings, banks, penitentiaries, power stations, military sites, stores, embassies, warehouses, etc. The hydraulic road blocker is designed to guarantee the full level of security.
Road blockers are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. If there is a threat of vehicle attack in addition to the control of vehicle access in high security applications, hydraulic road blockers are the unique solution and the most secure systems. road blockers are designed to K12 standards.
The road blocker is operated by a hydraulic ram with the power unit (HPU) positioned locally within an externally rated cabinet. Typical raise/lower time is 3 seconds. In case of emergency, raise/lower time are available upon request.
Automatic Road Blocker Product technicial
|
Basic Information & Material
|
|
|
Rising time
|
1-3s (Adjustable)
|
|
Dropping time
|
1-3s (Adjustable)
|
|
Dimension - Length
|
3-6m (On request)
|
|
- Width
|
1000mm
|
|
- Height underground
|
760mm
|
|
Barrier height
|
500mm
|
|
Spikes
|
φ30mm*90mm (Optional)
|
|
Panel/Housing/Spikes
|
A3 Steel
|
|
Panel thickness
|
16/20/25mm
|
|
Surface color (Customizable)
|
Red/Green/Yellow/Black
|
|
Drainage system
|
Yes
|
|
Anti-rust treatment
|
2 layers spray paint
|
|
Reflective tape
|
White/Black, Yellow/Black
|
|
LED warning light
|
RGB, various dynamic
|
|
Actuator
|
|
|
Hydraulic actuator
|
Electric & Manual pump integrated
|
|
Power supply
|
380VAC
|
|
Power consumption
|
3.75KW~5.5KW
|
|
Shock-reducing
|
Yes
|
|
Industrial hydraulic tank
|
30L~60L
|
|
Hydraulic hose
|
Conical sealing, high pressure
|
|
Ambient temperature
|
-25℃~55℃
|
|
Bearing capacity
|
0-100t
|
|
Control Center
|
|
|
Type
|
PLC (With display)
|
|
Housing
|
Spray paint (Outdoor use)
|
|
Self-testing program
|
Yes
|
|
Trial period setting
|
Yes
|
|
Warning light Auto ON/OFF
|
Yes
|
|
Emergency rising/dropping
|
Yes (With III level of control priority)
|
|
Manually rising/dropping
|
Yes (Rising by pedal; Dropping by release valve)
|
|
Remote control distance
|
100m
|
|
Wire switch
|
Yes
|

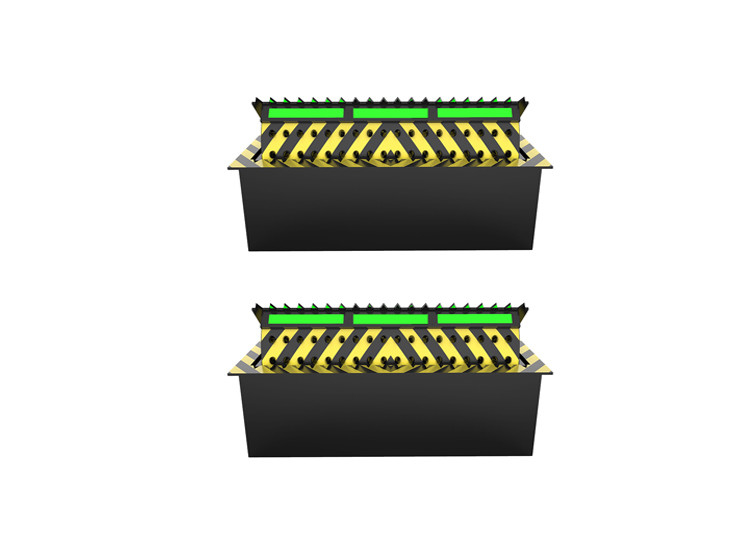

PRODUCT PHOTO
PRODUCT OVERVIEW
SINOMATIC road blocker is designed for high level security.
The housing and the blocking element of the road block system are fabricated in full core steel profile construction to absorb static impact loads up to 5000kN.
The blocking element with the integrated anti-deflection device is electro-hydraulically operated with an electric motor of adequate size (380V, 50 Hz, 3-phase current).
The electro-hydraulic drive unit as well as the control system are installed in a lockable steel cabinet for outdoor installation. The Max. distance between road block and metal cabinet is 20M.
Road blocker can be operated by remote controller, push button, card reader and other existing access control system. Integrated with SINOMATIC bollard, boom barrier flexibly.
