| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB02 |

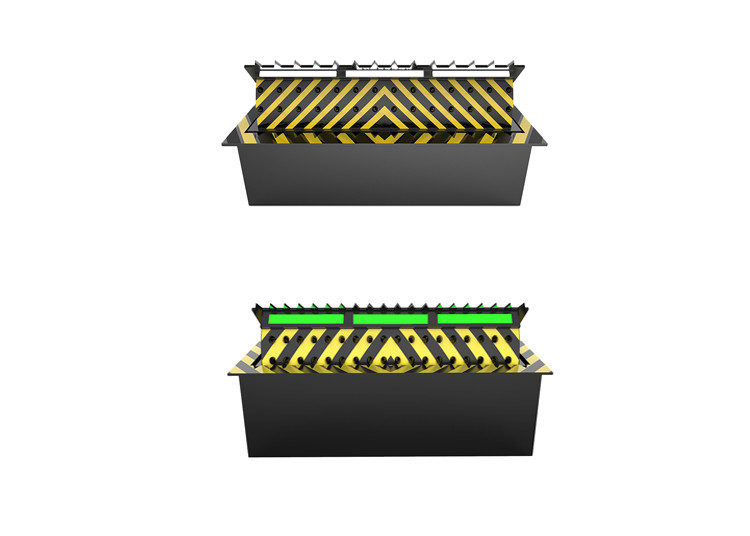

Remote control Electro- Hydraulic 120 tons container truck passing press hydraulic roadblock
Standard Road blocker size: (mm)
L2000*W1000*H760,Rising height:500(Customized)
L2500*W1000*H760,Rising height:500(Customized)
L3000*W1000*H760,Rising height:500(Customized)
L3500*W1000*H760,Rising height:500(Customized)
L4000*W1000*H760,Rising height:500(Customized)
L4500*W1000*H760,Rising height:500(Customized)
L5000*W1000*H760,Rising height:500(Customized)
L5500*W1000*H760,Rising height:500(Customized)
L6000*W1000*H760,Rising height:500(Customized)
MAIN FEATURES
1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
2.Micro control technology makes bollards work stable and reliable,Easy integrate to other systems
3.Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
4.Advanced mature Hydraulic pressure technologies
5.Remote control system realize wireless control up&down within 30 meters range
6.Customized for different users requests
7.Controller display : LED
8.Swiping card system: built-in card reader to control bollards up&down
9.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
10.Connected with Computer Management OR Charging Systems
PRODUCT PARAMETERS
| Control System | Electro- Hydraulic |
| Passing pressure: | ≤120 tons container trucks |
| System Dynamic power | 3.75KW |
| Rise time : | ≤1-3S(adjustable) |
| fall time : | ≤1-3S (adjustable) |
| Buffer function | buffer time :0.2s-0.5s |
| Running noise | ≤60 db |
| Voltage: | Three-phases 380V,(control voltage 24V) |
| Oil container: | Min. 60 Liter |
| Control solenoid valve | 24V |
| Lifting solenoid valve | 24V |
| Remote control distance | Approx .50-100m |
| Working Temperature : | -35℃~75℃(suitable) |
| Material: | A3 steel ,Spray anti-rust paint |
| Material thickness | 16mm,20 mm,25 mm (Optional) |
| Waterproof: | IP68, double sealed |
| LED light color | red,blue,green,yellow,purple,white…(customized) |
| Color: | red,blue,green,yellow…(can be customized) |
| Weight: | 1.5T |
MORE FUNCTIONS
PRODUCT APPLICATION
Application area: Embassy, Military Base, Power Stations, Prison and other sensitive area where needs high level security protection.
